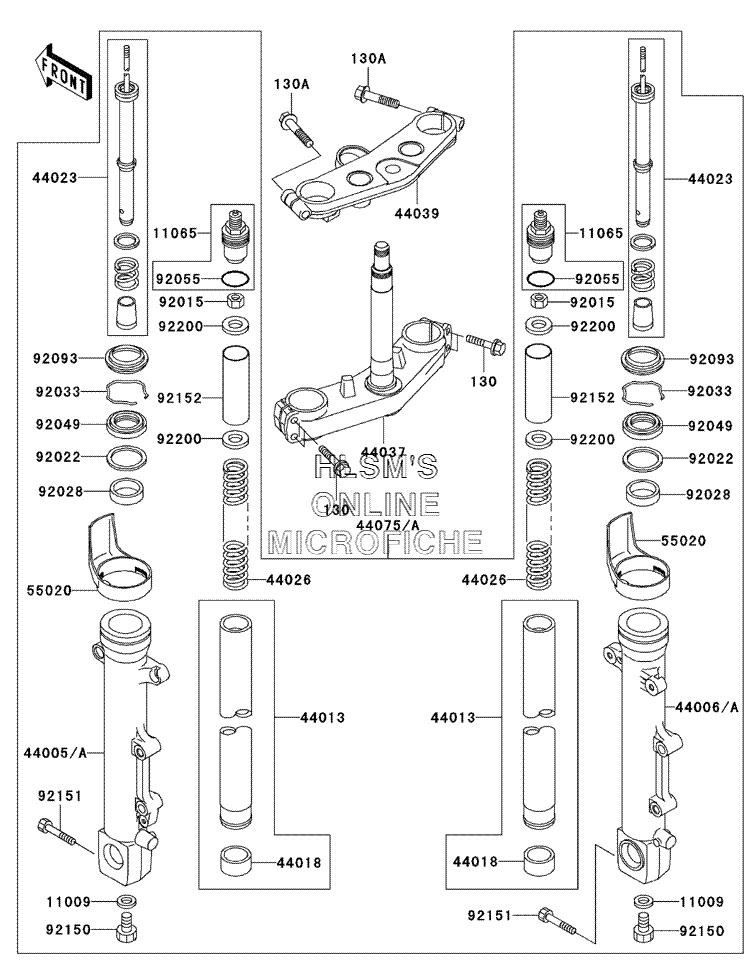

FRONT FORK для Kawasaki ZRX1200 - 2003 года выпуска
-
№АртикулНазвание
-
130130J0840 BOLT, FLANGED, 8X40BOLT, FLANGED, 8X40
-
130A130J1045 BOLT, FLANGEDBOLT, FLANGED
-
1100911009-1127 GASKET, FORK CYLINDER BOLTGASKET, FORK CYLINDER BOLT
-
1106511065-1120 CAPCAP
-
4400544005-0001 PIPE, LEFT FORK OUTERPIPE, LEFT FORK OUTER
-
4400644006-0001 PIPE, RIGHT FORK OUTERPIPE, RIGHT FORK OUTER
-
4401344013-1492 PIPE, FORK INNERPIPE, FORK INNER
-
4401844018-1060 PISTON, FORK, INNER PIPEPISTON, FORK, INNER PIPE
-
4402344023-1155 CYLINDER, SET, FORKCYLINDER, SET, FORK
-
4402644026-1729 SPRING, FRONT FORKSPRING, FRONT FORK
-
4403744037-1419 HOLDER, FORK UNDERHOLDER, FORK UNDER
-
4403944039-1318 HOLDER, FORK UPPERHOLDER, FORK UPPER
-
4407544075-0002 DAMPER, SET, FORKDAMPER, SET, FORK
-
5502055020-1691 GUARD, FORKGUARD, FORK
-
9201592015-1795 NUTNUT
-
9202292022-1299 WASHERWASHER
-
9202892028-1784 BUSHINGBUSHING
-
9203392033-1077 RING, SNAPRING, SNAP
-
9204992049-1496 SEAL, OIL, FORK OUTER TUBESEAL, OIL, FORK OUTER TUBE
-
9205592055-1123 O-RINGO-RING
-
9209392093-1480 SEAL, FORK OUTER TUBESEAL, FORK OUTER TUBE
-
9215092150-1398 BOLT, 12X22BOLT, 12X22
-
9215192151-1991 BOLT, SOCKET, 8X45BOLT, SOCKET, 8X45
-
9215292152-1361 COLLAR, FORK, L=115COLLAR, FORK, L=115
-
9220092200-1349 WASHERWASHER
