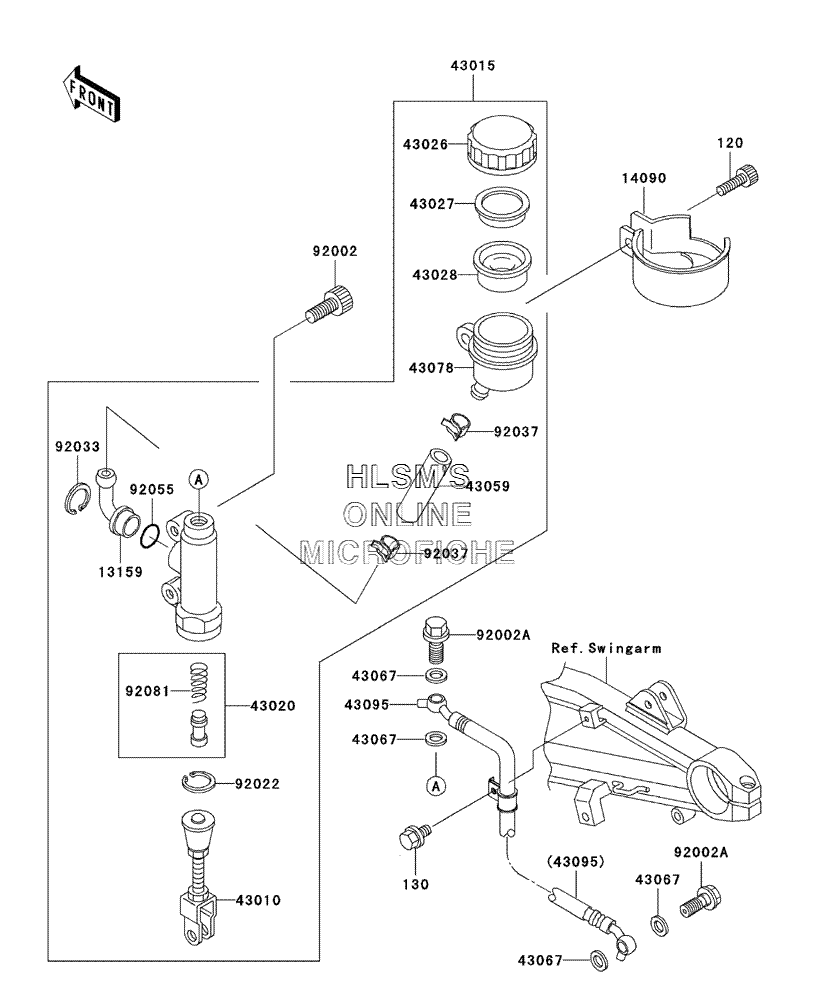

BRAKE - MASTER CYLINDER - REAR для Kawasaki ZRX1200 - 2003 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0620 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 130
    130J0610 BOLT, FLANGED
    BOLT, FLANGED
  • 13159
    13159-1052 CONNECTOR, REAR MASTER CYLINDER
    CONNECTOR, REAR MASTER CYLINDER
  • 14090
    14090-1482 COVER, RESERVOIR TANK
    COVER, RESERVOIR TANK
  • 43010
    43010-1077 ROD, ASSY, BRAKE
    ROD, ASSY, BRAKE
  • 43015
    43015-1677 CYLINDER, ASSY, MASTER, REAR
    CYLINDER, ASSY, MASTER, REAR
  • 43020
    43020-1057 PISTON, COMP, BRAKE
    PISTON, COMP, BRAKE
  • 43026
    43026-1051 CAP, BRAKE
    CAP, BRAKE
  • 43027
    43027-1051 PLATE, DIAPHRAGM
    PLATE, DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43059
    43059-1990 HOSE, BRAKE, REAR MASTER CYLINDER
    HOSE, BRAKE, REAR MASTER CYLINDER
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43078
    43078-1165 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-1200 HOSE, BRAKE, REAR
    HOSE, BRAKE, REAR
  • 92002
    92002-1178 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92002A
    92002-1888 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92022
    92022-1601 WASHER, CIRCRIP
    WASHER, CIRCRIP
  • 92033
    92033-1186 RING, SNAP, 20.5MM
    RING, SNAP, 20.5MM
  • 92037
    92037-1547 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92055
    92055-1251 O-RING, MASTER CYLINDER
    O-RING, MASTER CYLINDER
  • 92081
    92081-1737 SPRING, MASTER CYLINDER
    SPRING, MASTER CYLINDER
