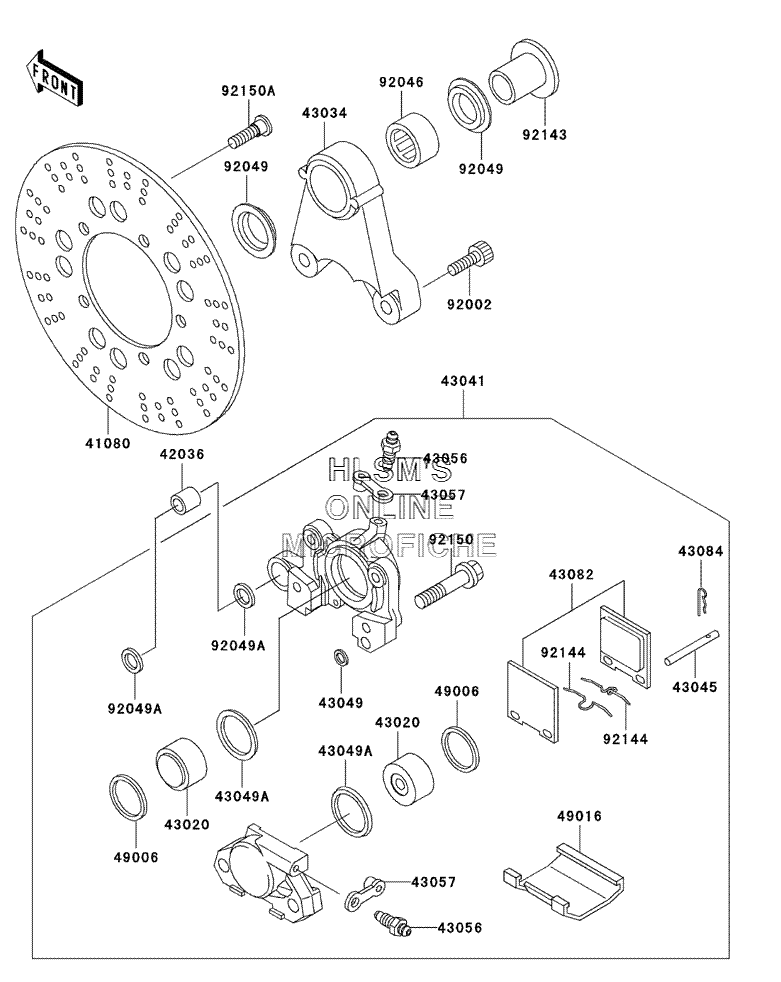

BRAKE - REAR для Kawasaki ZRX1200 - 2003 года выпуска
-
№АртикулНазвание
-
4108041080-1422-CL DISC, REAR (GOLD)DISC, REAR (GOLD)
-
4203642036-1260 SLEEVE, 8.1X14X17.6SLEEVE, 8.1X14X17.6
-
4302043020-1107 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4303443034-1124-FS HOLDER, BRAKE, REAR CALIPER (GRAY)HOLDER, BRAKE, REAR CALIPER (GRAY)
-
4304143041-1833-8Q CALIPER, ASSY, REAR (GOLD)CALIPER, ASSY, REAR (GOLD)
-
4304543045-007 SHAFT, CALIPERSHAFT, CALIPER
-
4304943049-1004 PACKING, SEAL, 6.5X11.5X2.2PACKING, SEAL, 6.5X11.5X2.2
-
43049A43049-1097 PACKING, PISTON SEALPACKING, PISTON SEAL
-
4305643056-1054 BREATHER, BRAKEBREATHER, BRAKE
-
4305743057-003 CAP, BREATHERCAP, BREATHER
-
4308243082-1257 PAD, ASSY, BRAKEPAD, ASSY, BRAKE
-
4308443084-003 CLAMP, PADCLAMP, PAD
-
4900649006-1212 BOOT, PISTON SEALBOOT, PISTON SEAL
-
4901649016-1145 COVER, SEALCOVER, SEAL
-
9200292002-1442 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9204692046-1111 BEARING, NEEDLE, BM2817BEARING, NEEDLE, BM2817
-
9204992049-1181 SEAL, OILSEAL, OIL
-
92049A92049-1339 SEAL, OILSEAL, OIL
-
9214392143-1043 COLLAR, L=35COLLAR, L=35
-
9214492144-1401 SPRING, PADSPRING, PAD
-
9215092150-1273 BOLT, FLANGED, 10X45BOLT, FLANGED, 10X45
-
92150A92150-1771 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
