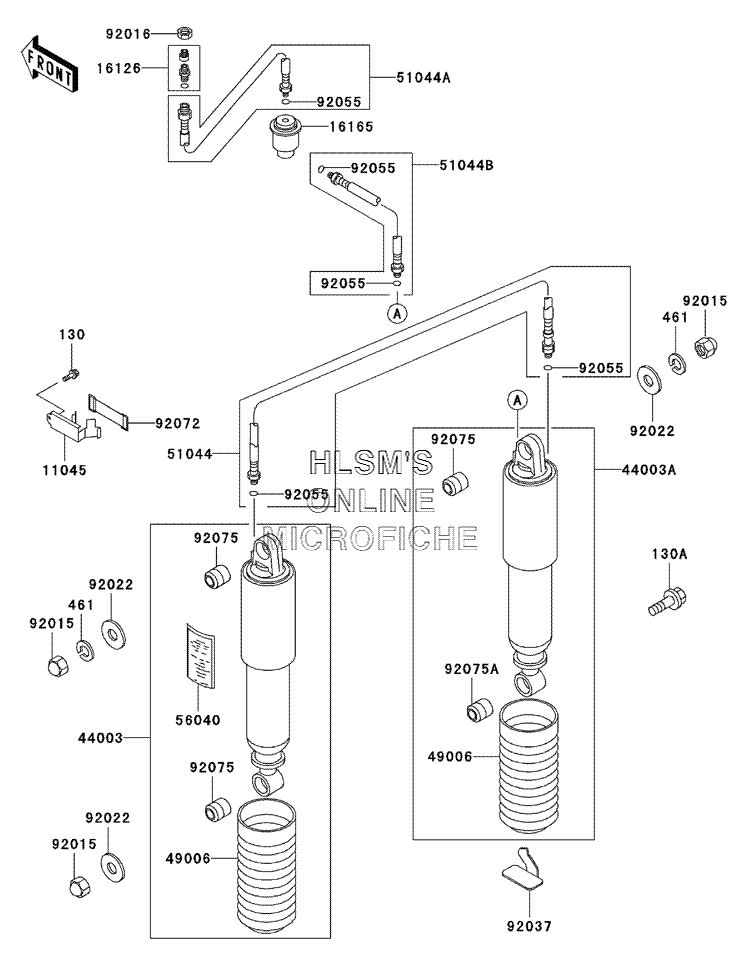

SUSPENSION - SHOCK ABSORBER для Kawasaki Voyager XII - 2003 года выпуска`
-
№АртикулНазвание
-
130130B0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
130A130J1035 BOLT, FLANGED, 10X35BOLT, FLANGED, 10X35
-
461461K1000 WASHER, SPRING, 10MM (BLACK)WASHER, SPRING, 10MM (BLACK)
-
1104511045-1245 BRACKET, SEPARATORBRACKET, SEPARATOR
-
1612616126-1029 VALVE, AIRVALVE, AIR
-
1616516165-1056 SEPARATORSEPARATOR
-
4400344003-1682 DAMPER, ASSY, SHOCKABSORBER (LEFT)DAMPER, ASSY, SHOCKABSORBER (LEFT)
-
44003A44003-1683 DAMPER, ASSY, SHOCKABSORBER (RIGHT)DAMPER, ASSY, SHOCKABSORBER (RIGHT)
-
4900649006-1092 BOOT, SHOCKABSORBER (BLACK)BOOT, SHOCKABSORBER (BLACK)
-
5104451044-1079 TUBE, ASSY, SHOCKABSORBERTUBE, ASSY, SHOCKABSORBER
-
51044A51044-1080 TUBE, ASSY, SHOCKABSORBERTUBE, ASSY, SHOCKABSORBER
-
51044B51044-1081 TUBE, ASSY, SHOCKABSORBERTUBE, ASSY, SHOCKABSORBER
-
5604056040-1030 LABEL, WARNINGLABEL, WARNING
-
9201592015-1203 NUT, CAP, 10MM (BLACK)NUT, CAP, 10MM (BLACK)
-
9201692016-044 NUT, 14MMNUT, 14MM
-
9202292022-1302 WASHER, 10.5X30X2.3 (BLACK)WASHER, 10.5X30X2.3 (BLACK)
-
9203792037-1820 CLAMP, HARNESSCLAMP, HARNESS
-
9205592055-1100 O-RING, FORKO-RING, FORK
-
9207292072-1419 BAND, L=50BAND, L=50
-
9207592075-1141 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
-
92075A92075-1586 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
