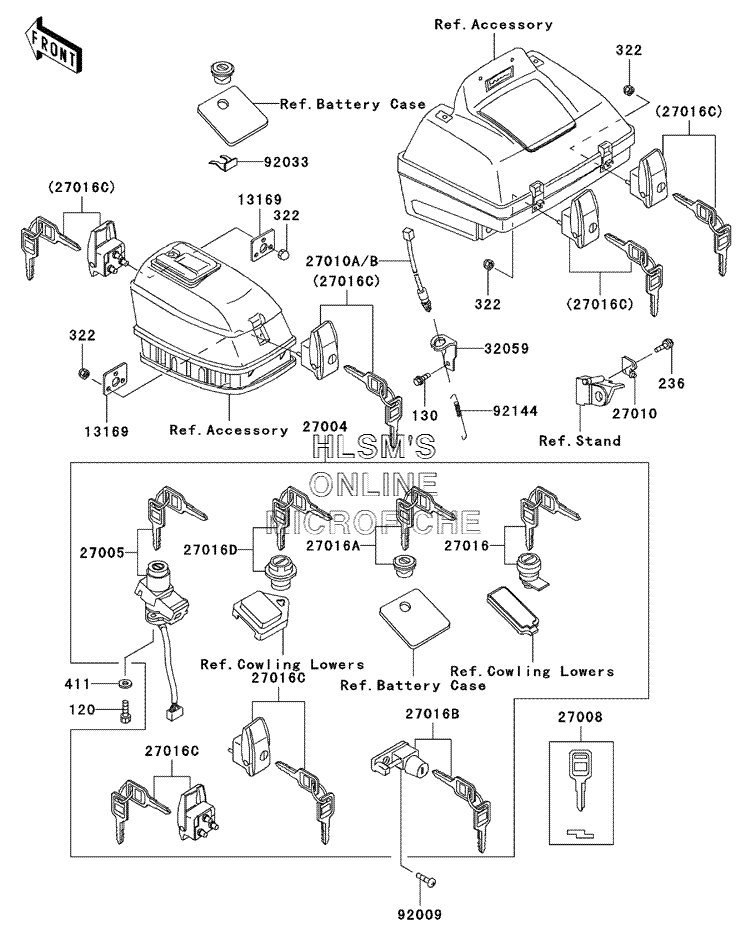

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Voyager XII - 2003 года выпуска`
-
№АртикулНазвание
-
120120T0616 BOLT, SOCKETBOLT, SOCKET
-
130130D0610 BOLT, FLANGEDBOLT, FLANGED
-
236236B0416 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
322322C0400 NUT, CAP, 4MMNUT, CAP, 4MM
-
411411E0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
1316913169-1641 PLATE, BAGPLATE, BAG
-
2700427004-5318 SWITCH, ASSYSWITCH, ASSY
-
2700527005-5063 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-1103 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1185 SWITCH, BRAKE/SIDE STANDSWITCH, BRAKE/SIDE STAND
-
27010B27010-1476 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-5105 LOCK, ASSYLOCK, ASSY
-
27016A27016-5106 LOCK, ASSY, TANK CAP COVERLOCK, ASSY, TANK CAP COVER
-
27016B27016-5107 LOCK, ASSY, HELMETLOCK, ASSY, HELMET
-
27016C27016-5108 LOCK, ASSY, BAGLOCK, ASSY, BAG
-
27016D27016-5128 LOCK, ASSY, FAIRING POCKETLOCK, ASSY, FAIRING POCKET
-
3205932059-1068 BRACKET, SWITCH, REAR BRAKEBRACKET, SWITCH, REAR BRAKE
-
9200992009-1401 SCREW, 5X12SCREW, 5X12
-
9203392033-1095 RING, SNAP, COWLING POCKETRING, SNAP, COWLING POCKET
-
9214492144-1015 SPRING, REAR BRAKESPRING, REAR BRAKE
