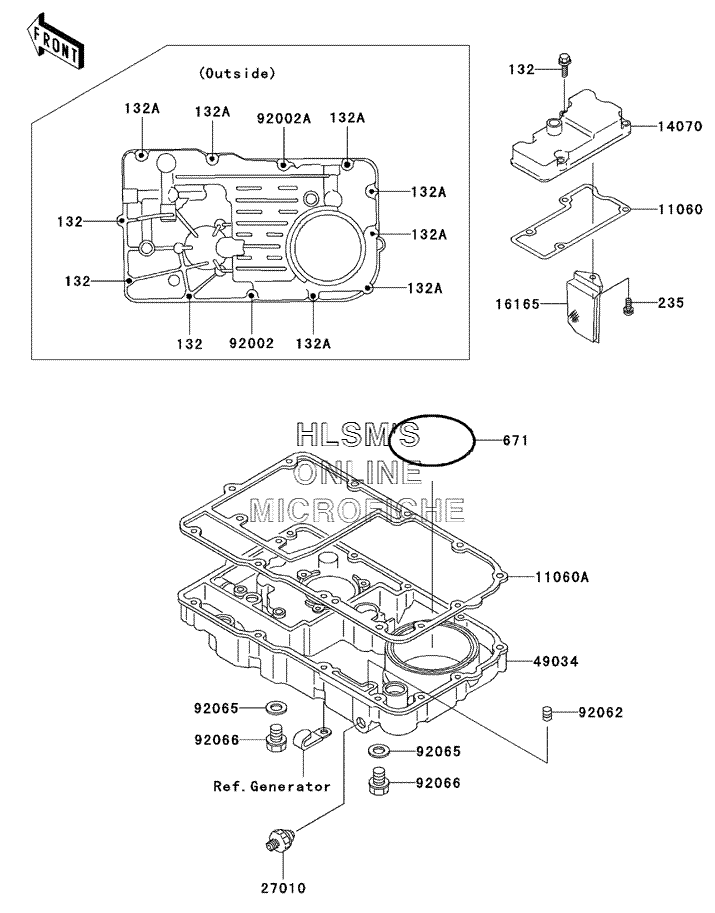

BREATHER COVER W/ OIL PAN для Kawasaki Voyager XII - 2003 года выпуска

  • №
    Артикул
    Название
  • 132
    132E0625 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132E0640 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 235
    235B0610 SCREW, PAN, WP, CROS
    SCREW, PAN, WP, CROS
  • 671
    671B2590 O-RING, 90MM
    O-RING, 90MM
  • 11060
    11060-1100 GASKET, BREATHER BODY
    GASKET, BREATHER BODY
  • 11060A
    11060-1101 GASKET, OIL PAN
    GASKET, OIL PAN
  • 14070
    14070-1062 BODY, BREATHER
    BODY, BREATHER
  • 16165
    16165-1057 SEPARATOR, BREATHER BODY
    SEPARATOR, BREATHER BODY
  • 27010
    27010-1313 SWITCH, OIL PRESSURE
    SWITCH, OIL PRESSURE
  • 49034
    49034-1110 PAN, OIL
    PAN, OIL
  • 92002
    92002-1612 BOLT, 6X25
    BOLT, 6X25
  • 92002A
    92002-1657 BOLT, 6X40
    BOLT, 6X40
  • 92062
    92062-1080 NOZZLE, 6X8 (YELLOW)
    NOZZLE, 6X8 (YELLOW)
  • 92065
    92065-097 GASKET, 12X22X2, DRAIN PLUG
    GASKET, 12X22X2, DRAIN PLUG
  • 92066
    92066-1174 PLUG, OIL DRAIN, 12X15
    PLUG, OIL DRAIN, 12X15
