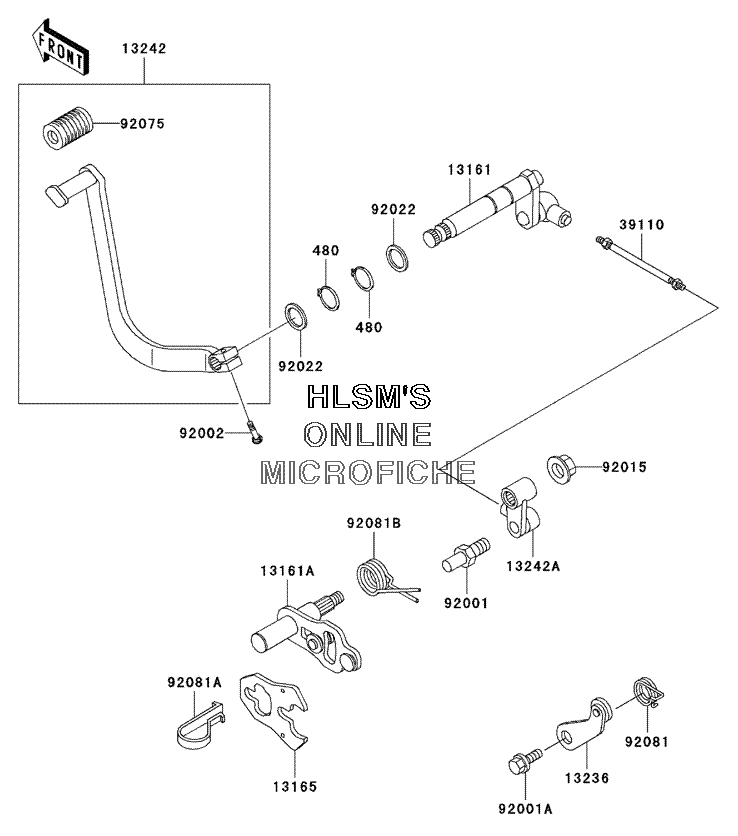

GEAR CHANGE MECHANISM для Kawasaki Vulcan 750 - 2002 года выпуска`
-
№АртикулНазвание
-
480480J1300 CIRCLIP, TYPE, C, 13MMCIRCLIP, TYPE, C, 13MM
-
1316113161-1119 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
13161A13161-1120 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1316513165-1120 PAWLPAWL
-
1323613236-1126 LEVER, COMP, POSITIONLEVER, COMP, POSITION
-
1324213242-1185 LEVER, ASSY., CHANGE, PEDALLEVER, ASSY., CHANGE, PEDAL
-
13242A13242-1188 LEVER, ASSY., CHANGELEVER, ASSY., CHANGE
-
3911039110-1073 ROD, ASSY., TIEROD, ASSY., TIE
-
9200192001-1455 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92001A92001-1715 BOLT, GEAR CHANGE LEVERBOLT, GEAR CHANGE LEVER
-
9200292002-1237 BOLT, 6X20BOLT, 6X20
-
9201592015-1397 NUT, LOCK, FLANGED, 8MMNUT, LOCK, FLANGED, 8MM
-
9202292022-1224 WASHER, 13.2X20X0.5WASHER, 13.2X20X0.5
-
9207592075-1585 DAMPER, CHANGE PEDALDAMPER, CHANGE PEDAL
-
9208192081-1777 SPRING, RETURNSPRING, RETURN
-
92081A92081-1829 SPRING, CHANGE LEVERSPRING, CHANGE LEVER
-
92081B92081-1869 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
