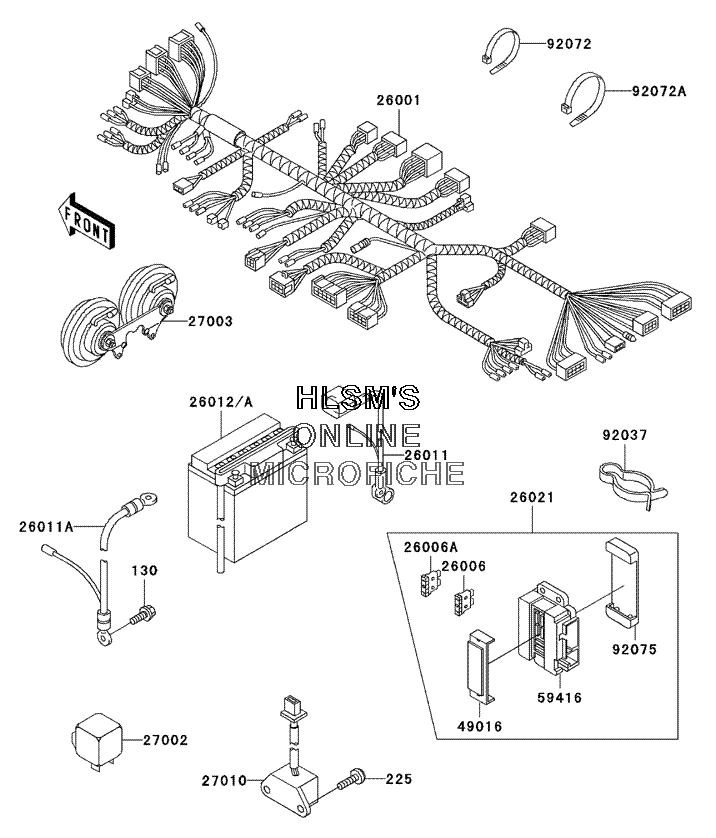

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Vulcan 750 - 2002 года выпуска`
-
№АртикулНазвание
-
130130V0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
225225B0620 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
2600126001-1961 HARNESS, MAINHARNESS, MAIN
-
2600626006-1067 FUSE, 30A, GFUSE, 30A, G
-
26006A26006-1068 FUSE, 10A, RFUSE, 10A, R
-
2601126011-1310 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
26011A26011-1549 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
26012A26012-1392 BATTERY, YB14L, A2, 12V 14AHBATTERY, YB14L, A2, 12V 14AH
-
2602126021-1073 JUNCTION BOXJUNCTION BOX
-
2700227002-1060 RELAY, ASSY., TURN SIGNALRELAY, ASSY., TURN SIGNAL
-
2700327003-1218 HORN, DOUBLEHORN, DOUBLE
-
2701027010-1069 SWITCH, RESERVE LIGHTINGSWITCH, RESERVE LIGHTING
-
4901649016-1106 COVER, SEAL, FUSECOVER, SEAL, FUSE
-
5941659416-1052 CASE, ELECTRIC, FUSE AND RELAY BOXCASE, ELECTRIC, FUSE AND RELAY BOX
-
9203792037-093 CLAMP, CABLECLAMP, CABLE
-
9207292072-031 BAND, L=149BAND, L=149
-
92072A92072-056 BAND, L=186BAND, L=186
-
9207592075-1688 DAMPER, JUNCTION BOXDAMPER, JUNCTION BOX
