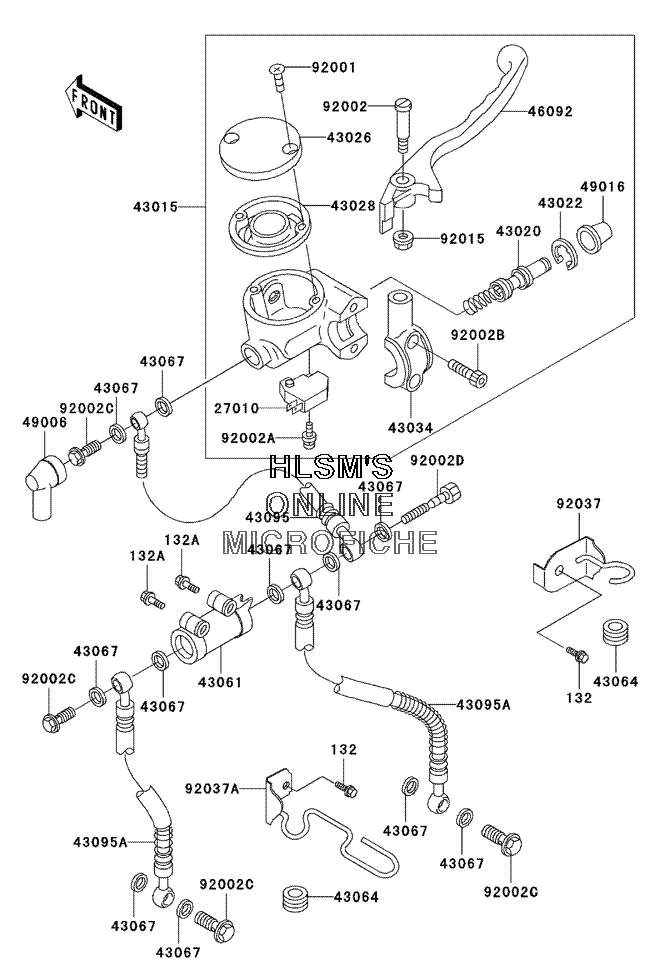

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Vulcan 750 - 2002 года выпуска`
-
№АртикулНазвание
-
132132E0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
2701027010-1170 SWITCH, BRAKESWITCH, BRAKE
-
4301543015-1493 CYLINDER, ASSY., MASTER, FRONTCYLINDER, ASSY., MASTER, FRONT
-
4302043020-1054 PISTON, COMP, BRAKE, FRONTPISTON, COMP, BRAKE, FRONT
-
4302243022-1010 STOPPER, BRAKE, PISTONSTOPPER, BRAKE, PISTON
-
4302643026-1079 CAP, BRAKE (BLACK)CAP, BRAKE (BLACK)
-
4302843028-1071 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4303443034-1113 HOLDER, BRAKE, MASTER CYLINDERHOLDER, BRAKE, MASTER CYLINDER
-
4306143061-1002 JOINT, BRAKEJOINT, BRAKE
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-1074 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
43095A43095-1075 HOSE, BRAKE, FRONTHOSE, BRAKE, FRONT
-
4609246092-1171 LEVER, GRIP, FRONT BRAKELEVER, GRIP, FRONT BRAKE
-
4900649006-1040 BOOT, DUSTBOOT, DUST
-
4901649016-1044 COVER, SEAL, MASTER CYLINDERCOVER, SEAL, MASTER CYLINDER
-
9200192001-1727 SCREW, 5MM (BLACK)SCREW, 5MM (BLACK)
-
9200292002-1322 BOLT, LEVER SET (BLACK)BOLT, LEVER SET (BLACK)
-
92002A92002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002B92002-1324 BOLT, SOCKET, 6X20 (BLACK)BOLT, SOCKET, 6X20 (BLACK)
-
92002C92002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
92002D92002-1909 BOLT, OIL, L=37BOLT, OIL, L=37
-
9201592015-1233 NUT, FLANGED, 6MM (BLACK)NUT, FLANGED, 6MM (BLACK)
-
9203792037-1218 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92037A92037-1367 CLAMP, BRAKE HOSE (LEFT)CLAMP, BRAKE HOSE (LEFT)
