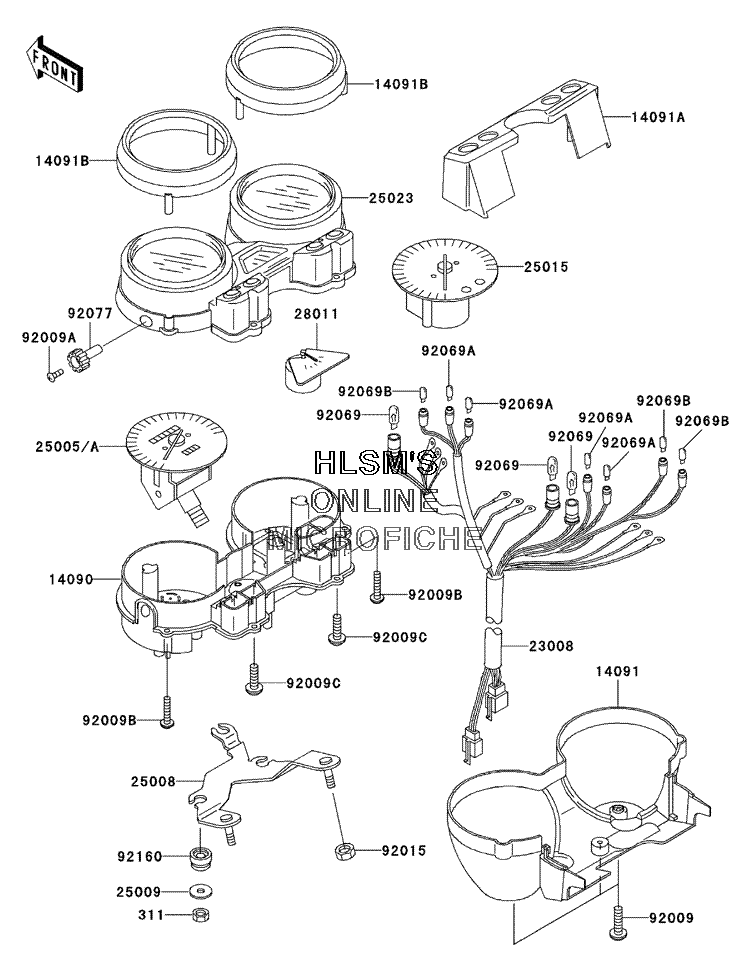

METER(S) для Kawasaki ZRX1200 - 2001 года выпуска

  • №
    Артикул
    Название
  • 311
    311C0500 NUT, HEX
    NUT, HEX
  • 14090
    14090-1842 COVER, METER HOUSING
    COVER, METER HOUSING
  • 14091
    14091-1105 COVER, METER, LOWER
    COVER, METER, LOWER
  • 14091A
    14091-1154 COVER, PILOT BOX, UPPER
    COVER, PILOT BOX, UPPER
  • 14091B
    14091-1326 COVER, SPEEDO AND TACHOMETER
    COVER, SPEEDO AND TACHOMETER
  • 23008
    23008-1583 SOCKET, ASSY., METER
    SOCKET, ASSY., METER
  • 25005
    25005-1691 SPEEDOMETER, KPH (CANADA ONLY)
    SPEEDOMETER, KPH (CANADA ONLY)
  • 25005A
    25005-1692 SPEEDOMETER, MPH (US ONLY)
    SPEEDOMETER, MPH (US ONLY)
  • 25008
    25008-1213 BRACKET, METER
    BRACKET, METER
  • 25009
    25009-004 WASHER, 5.2X16X1.2
    WASHER, 5.2X16X1.2
  • 25015
    25015-1364 TACHOMETER, X1000R/MIN
    TACHOMETER, X1000R/MIN
  • 25023
    25023-1230 COVER, METER CASE, UPPER
    COVER, METER CASE, UPPER
  • 28011
    28011-1216 METER, FUEL
    METER, FUEL
  • 92009
    92009-1158 SCREW, 4X16 (BLACK)
    SCREW, 4X16 (BLACK)
  • 92009A
    92009-1172 SCREW, 2X6 (BLACK)
    SCREW, 2X6 (BLACK)
  • 92009B
    92009-1391 SCREW, TAPPING, 3X16
    SCREW, TAPPING, 3X16
  • 92009C
    92009-1503 SCREW, TAPPING, 4X14
    SCREW, TAPPING, 4X14
  • 92015
    92015-1233 NUT, FLANGED, 6MM (BLACK)
    NUT, FLANGED, 6MM (BLACK)
  • 92069
    92069-1059 BULB, 12V 1.7W, T10
    BULB, 12V 1.7W, T10
  • 92069A
    92069-1068 BULB, 12V 3W, T6.5
    BULB, 12V 3W, T6.5
  • 92069B
    92069-1070 BULB, 12V 1.7W, T6.5
    BULB, 12V 1.7W, T6.5
  • 92077
    92077-1073 KNOB, METER
    KNOB, METER
  • 92160
    92160-1178 DAMPER
    DAMPER
