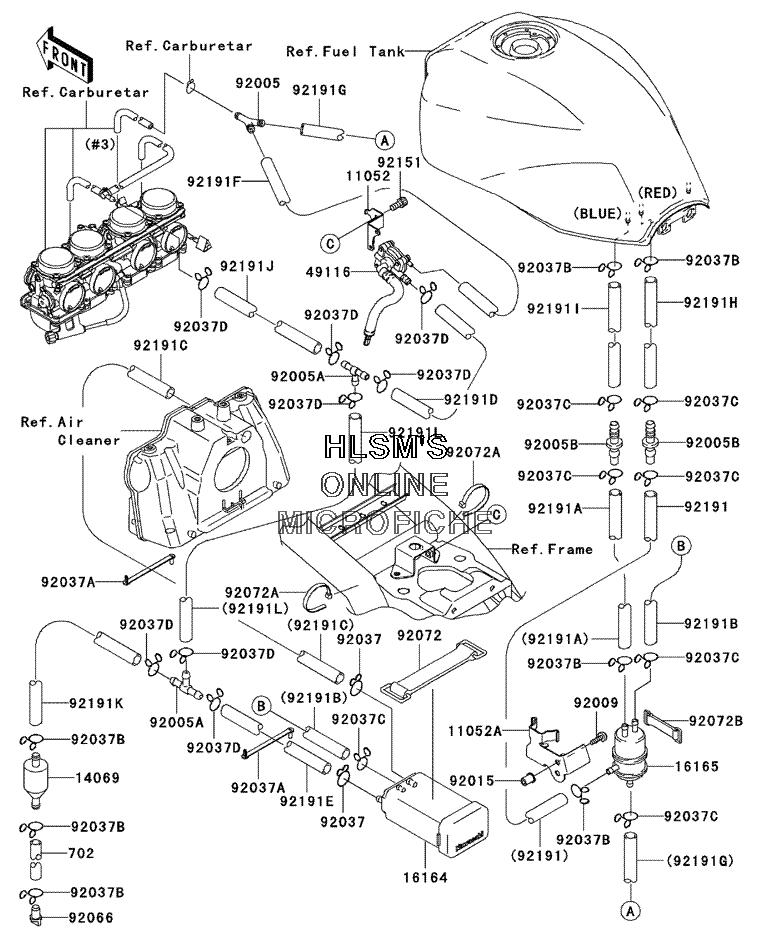

FUEL EVAPORATIVE SYSTEM для Kawasaki ZRX1200 - 2001 года выпуска

  • №
    Артикул
    Название
  • 11052
    11052-1145 BRACKET, FUEL TANK DAMPER (CALIF. ONLY)
    BRACKET, FUEL TANK DAMPER (CALIF. ONLY)
  • 11052A
    11052-1146 BRACKET (CALIF. ONLY)
    BRACKET (CALIF. ONLY)
  • 14069
    14069-1051 BREATHER (CALIF. ONLY)
    BREATHER (CALIF. ONLY)
  • 16164
    16164-1070 CANISTER (CALIF. ONLY)
    CANISTER (CALIF. ONLY)
  • 16165
    16165-1070 SEPARATOR (CALIF. ONLY)
    SEPARATOR (CALIF. ONLY)
  • 49116
    49116-1187 VALVE, ASSY. (CALIF. ONLY)
    VALVE, ASSY. (CALIF. ONLY)
  • 92005
    92005-1034 FITTING, TUBE (CALIF. ONLY)
    FITTING, TUBE (CALIF. ONLY)
  • 92005A
    92005-1119 FITTING, T, TYPE (CALIF. ONLY)
    FITTING, T, TYPE (CALIF. ONLY)
  • 92005B
    92005-1206 FITTING (CALIF. ONLY)
    FITTING (CALIF. ONLY)
  • 92009
    92009-1662 SCREW, 6X14 (CALIF. ONLY)
    SCREW, 6X14 (CALIF. ONLY)
  • 92015
    92015-1700 NUT (CALIF. ONLY)
    NUT (CALIF. ONLY)
  • 92037
    92037-1104 CLAMP, HOSE (CALIF. ONLY)
    CLAMP, HOSE (CALIF. ONLY)
  • 92037A
    92037-1163 CLAMP, SPEED, L=58 (CALIF. ONLY)
    CLAMP, SPEED, L=58 (CALIF. ONLY)
  • 92037B
    92037-147 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037C
    92037-1712 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92037D
    92037-1972 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92066
    92066-1211 PLUG, DRAIN (CALIF. ONLY)
    PLUG, DRAIN (CALIF. ONLY)
  • 92072
    92072-071 BAND, L=100 (CALIF. ONLY)
    BAND, L=100 (CALIF. ONLY)
  • 92072A
    92072-1237 BAND, L=250 (CALIF. ONLY)
    BAND, L=250 (CALIF. ONLY)
  • 92072B
    92072-1419 BAND, L=50 (CALIF. ONLY)
    BAND, L=50 (CALIF. ONLY)
  • 92151
    92151-1212 BOLT, SOCKET, 5X10 (CALIF. ONLY)
    BOLT, SOCKET, 5X10 (CALIF. ONLY)
  • 92191
    92191-1581 TUBE, SEPARATOR, TANK (RED) (CALIF. ONLY)
    TUBE, SEPARATOR, TANK (RED) (CALIF. ONLY)
  • 702
    702A0760 TUBE, RUBBER (CALIF. ONLY)
    TUBE, RUBBER (CALIF. ONLY)
  • 92191A
    92191-1582 TUBE, TANK, SEPARATOR, BULE (CALIF. ONLY)
    TUBE, TANK, SEPARATOR, BULE (CALIF. ONLY)
  • 92191B
    92191-1583 TUBE, SEPARATOR, CANISTER, BULE (CALIF. ONLY)
    TUBE, SEPARATOR, CANISTER, BULE (CALIF. ONLY)
  • 92191C
    92191-1584 TUBE, CANISTER, CLEANER (GREEN) (CALIF. ONLY)
    TUBE, CANISTER, CLEANER (GREEN) (CALIF. ONLY)
  • 92191D
    92191-1585 TUBE, FITTING, VALVE (YELLOW) (CALIF. ONLY)
    TUBE, FITTING, VALVE (YELLOW) (CALIF. ONLY)
  • 92191E
    92191-1586 TUBE, FITTING, CANISTER (YELLOW) (CALIF. ONLY)
    TUBE, FITTING, CANISTER (YELLOW) (CALIF. ONLY)
  • 92191F
    92191-1587 TUBE, CARBURETOR, VALVE (WHITE) (CALIF. ONLY)
    TUBE, CARBURETOR, VALVE (WHITE) (CALIF. ONLY)
  • 92191G
    92191-1588 TUBE, SEPARATOR, FITTING (WHITE) (CALIF. ONLY)
    TUBE, SEPARATOR, FITTING (WHITE) (CALIF. ONLY)
  • 92191H
    92191-1649 TUBE (RED) (CALIF. ONLY)
    TUBE (RED) (CALIF. ONLY)
  • 92191I
    92191-1650 TUBE, BULE (CALIF. ONLY)
    TUBE, BULE (CALIF. ONLY)
  • 92191J
    92191-1651 TUBE, 7X12X165 (YELLOW) (CALIF. ONLY)
    TUBE, 7X12X165 (YELLOW) (CALIF. ONLY)
  • 92191K
    92191-1652 TUBE, 7X11X430 (CALIF. ONLY)
    TUBE, 7X11X430 (CALIF. ONLY)
  • 92191L
    92191-1670 TUBE, 7X12X235 (YELLOW) (CALIF. ONLY)
    TUBE, 7X12X235 (YELLOW) (CALIF. ONLY)
