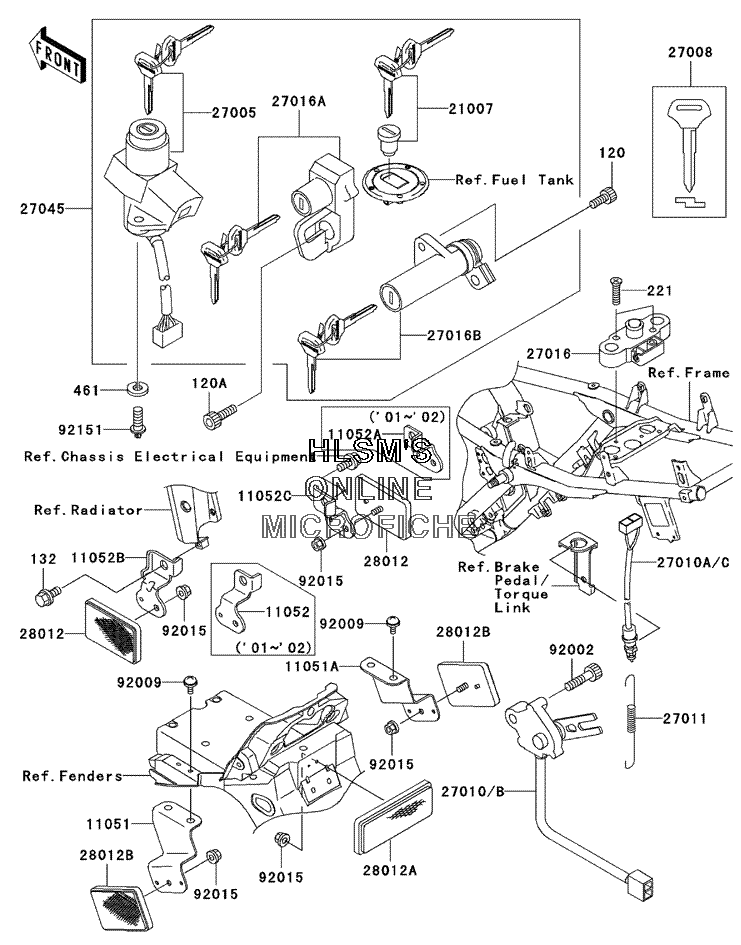

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki ZRX1200 - 2001 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0512 BOLT, SOCKET
    BOLT, SOCKET
  • 120A
    120S0620 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 132
    132J0812 BOLT, FLANGED, SMALL, 8X12
    BOLT, FLANGED, SMALL, 8X12
  • 221
    221C0630 SCREW, CSK, CROSS
    SCREW, CSK, CROSS
  • 461
    461L0600 WASHER, SPRING
    WASHER, SPRING
  • 11051
    11051-1131 BRACKET, REFLECTOR, REAR, SIDE (LEFT)
    BRACKET, REFLECTOR, REAR, SIDE (LEFT)
  • 11051A
    11051-1132 BRACKET, REFLECTOR, REAR, SIDE (RIGHT)
    BRACKET, REFLECTOR, REAR, SIDE (RIGHT)
  • 11052
    11052-1255 BRACKET, REFLECTOR, FRONT, SIDE (LEFT)
    BRACKET, REFLECTOR, FRONT, SIDE (LEFT)
  • 11052A
    11052-1256 BRACKET, REFLECTOR, FRONT, SIDE (RIGHT)
    BRACKET, REFLECTOR, FRONT, SIDE (RIGHT)
  • 21007
    21007-5042 ROTOR, LOCK, TANK CAP
    ROTOR, LOCK, TANK CAP
  • 27005
    27005-5120 SWITCH, ASSY., IGNITION
    SWITCH, ASSY., IGNITION
  • 27008
    27008-1189 KEY, LOCK, BLANK (OPT)
    KEY, LOCK, BLANK (OPT)
  • 27010
    27010-1371 SWITCH, SIDE STAND
    SWITCH, SIDE STAND
  • 27010A
    27010-1432 SWITCH, REAR BRAKE
    SWITCH, REAR BRAKE
  • 27011
    27011-017 SPRING, BRAKE LAMP SWITCH
    SPRING, BRAKE LAMP SWITCH
  • 27016
    27016-1098 LOCK, ASSY., SEAT STRIKER
    LOCK, ASSY., SEAT STRIKER
  • 27016A
    27016-5249 LOCK, ASSY., HELMET
    LOCK, ASSY., HELMET
  • 27016B
    27016-5250 LOCK, ASSY., SEAT
    LOCK, ASSY., SEAT
  • 27045
    27045-5142 SWITCH, ASSY.
    SWITCH, ASSY.
  • 28012
    28012-1003 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 28012A
    28012-1077 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 28012B
    28012-1088 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 92002
    92002-1582 BOLT, 6X25
    BOLT, 6X25
  • 92009
    92009-1288 SCREW, 6X14
    SCREW, 6X14
  • 92015
    92015-1259 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
  • 92151
    92151-1911 BOLT, TORX, 6X16
    BOLT, TORX, 6X16
