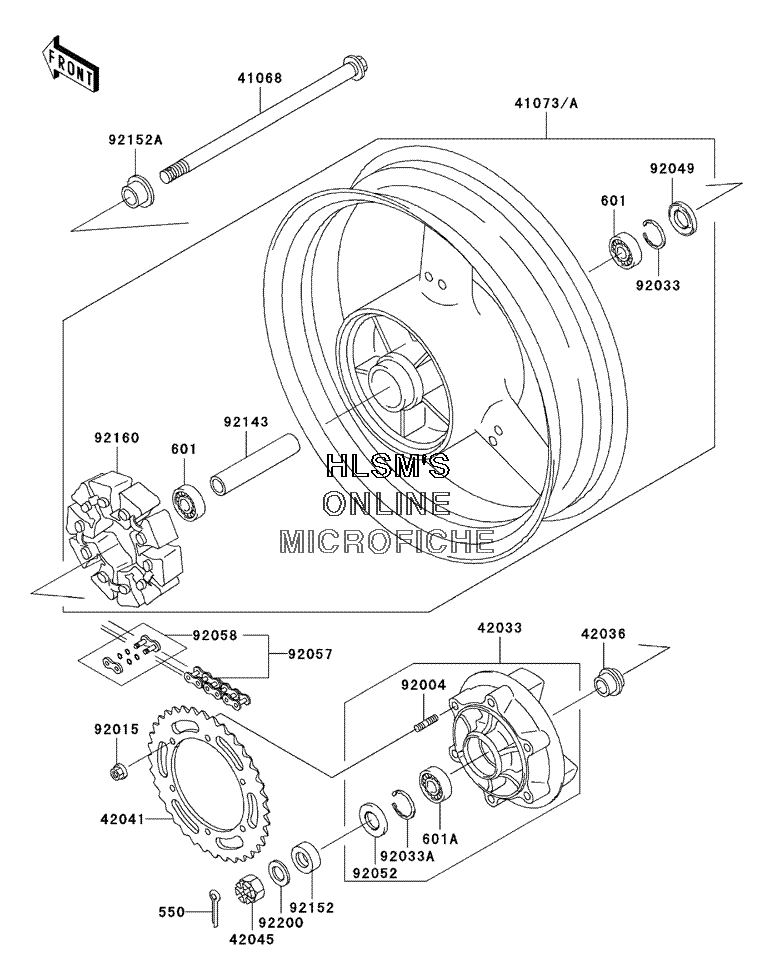

WHEEL - REAR W/ CHAIN для Kawasaki ZR-7S - 2001 года выпуска

  • №
    Артикул
    Название
  • 550
    550D4035 PIN, COTTER, 4.0X35
    PIN, COTTER, 4.0X35
  • 601
    601B6204UU BEARING, BALL, 6204UUC3
    BEARING, BALL, 6204UUC3
  • 601A
    601B6205G BEARING, BALL, #6205G
    BEARING, BALL, #6205G
  • 41068
    41068-1414 AXLE, REAR
    AXLE, REAR
  • 41073
    41073-1589-DH WHEEL, ASSY., REAR (C.GRAY)
    WHEEL, ASSY., REAR (C.GRAY)
  • 42033
    42033-1207 COUPLING, ASSY., REAR HUB
    COUPLING, ASSY., REAR HUB
  • 42036
    42036-1251 SLEEVE, REAR HUB, L=23
    SLEEVE, REAR HUB, L=23
  • 42041
    42041-1520 SPROCKET, HUB (38 TEETH)
    SPROCKET, HUB (38 TEETH)
  • 42045
    42045-018 NUT, CASTLE, 18MM
    NUT, CASTLE, 18MM
  • 92004
    92004-1275 STUD, 10X19
    STUD, 10X19
  • 92015
    92015-1335 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92033
    92033-1042 RING, SNAP, 47MM
    RING, SNAP, 47MM
  • 92033A
    92033-1043 RING, SNAP, 52MM
    RING, SNAP, 52MM
  • 92049
    92049-1056 SEAL, OIL, BJN28475
    SEAL, OIL, BJN28475
  • 92052
    92052-006 SEAL, OIL, TWC35527
    SEAL, OIL, TWC35527
  • 92057
    92057-1549 CHAIN, DRIVE, EK525MV, XX108L
    CHAIN, DRIVE, EK525MV, XX108L
  • 92058
    92058-1106 JOINT, CHAIN, DRIVE
    JOINT, CHAIN, DRIVE
  • 92143
    92143-1303 COLLAR, REAR HUB, L=133
    COLLAR, REAR HUB, L=133
  • 92152
    92152-1161 COLLAR, REAR AXLE (LEFT) L=13
    COLLAR, REAR AXLE (LEFT) L=13
  • 92152A
    92152-1162 COLLAR, REAR AXLE (RIGHT) L=20
    COLLAR, REAR AXLE (RIGHT) L=20
  • 92160
    92160-1524 DAMPER, SHOCK, REAR HUB
    DAMPER, SHOCK, REAR HUB
  • 92200
    92200-1489 WASHER, 19X32X2.6
    WASHER, 19X32X2.6
