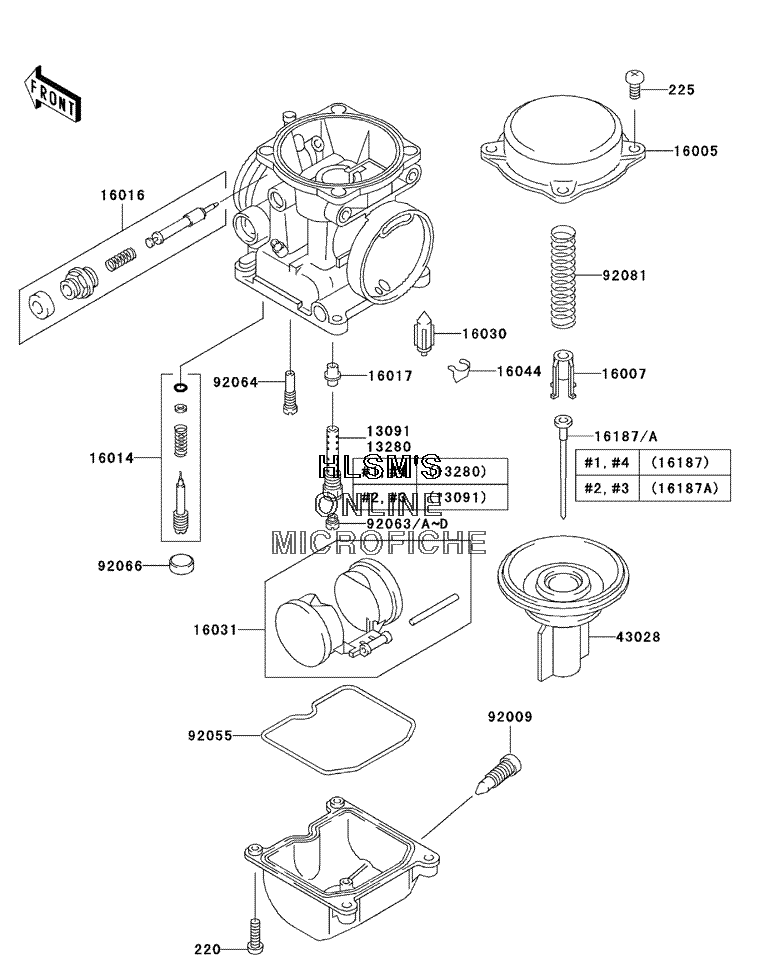

CARBURETOR PARTS для Kawasaki ZR-7S - 2001 года выпуска
-
№АртикулНазвание
-
220220D0414 SCREW, PAN, CROSSCREW, PAN, CROS
-
225225C0418 SCREW, PAN, WSP, CROSSCREW, PAN, WSP, CROS
-
1309113091-1925 HOLDER, NEEDLE JET, 0.6X18HOLDER, NEEDLE JET, 0.6X18
-
1328013280-1176 HOLDER, NEEDLE JET, 0.7X14HOLDER, NEEDLE JET, 0.7X14
-
1600516005-1056 TOP, CHAMBER, MIXINGTOP, CHAMBER, MIXING
-
1600716007-1120 SEAT, SPRING, THROTTLE VALVESEAT, SPRING, THROTTLE VALVE
-
1601416014-1092 SCREW, PILOT AIRSCREW, PILOT AIR
-
1601616016-1090 PLUNGER, STARTERPLUNGER, STARTER
-
1601716017-1409 JET, NEEDLE, #6JET, NEEDLE, #6
-
1603016030-1057 VALVE, FLOATVALVE, FLOAT
-
1603116031-1077 FLOATFLOAT
-
1604416044-007 CLAMP, FLOAT VALVECLAMP, FLOAT VALVE
-
1618716187-1117 NEEDLE, JET, N6NCNEEDLE, JET, N6NC
-
16187A16187-1118 NEEDLE, JET, N4MDNEEDLE, JET, N4MD
-
4302843028-1080 DIAPHRAGM, VALVEDIAPHRAGM, VALVE
-
9200992009-1551 SCREW, DRAIN, M6X0.75SCREW, DRAIN, M6X0.75
-
9205592055-1222 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
9206392063-1007 JET, MAIN, #110 (OPT)JET, MAIN, #110 (OPT)
-
92063A92063-1009 JET, MAIN, #105 (OPT)JET, MAIN, #105 (OPT)
-
92063B92063-1090 JET, MAIN, #102 (OPT)JET, MAIN, #102 (OPT)
-
92063C92063-1116 JET, MAIN, #108JET, MAIN, #108
-
92063D92063-1117 JET, MAIN, #112 (OPT)JET, MAIN, #112 (OPT)
-
9206492064-1035 JET, PILOT, #35JET, PILOT, #35
-
9206692066-1051 PLUG, PILOT AIR SCREW, 6.9X2PLUG, PILOT AIR SCREW, 6.9X2
-
9208192081-1925 SPRING, VACUUM VALVESPRING, VACUUM VALVE
