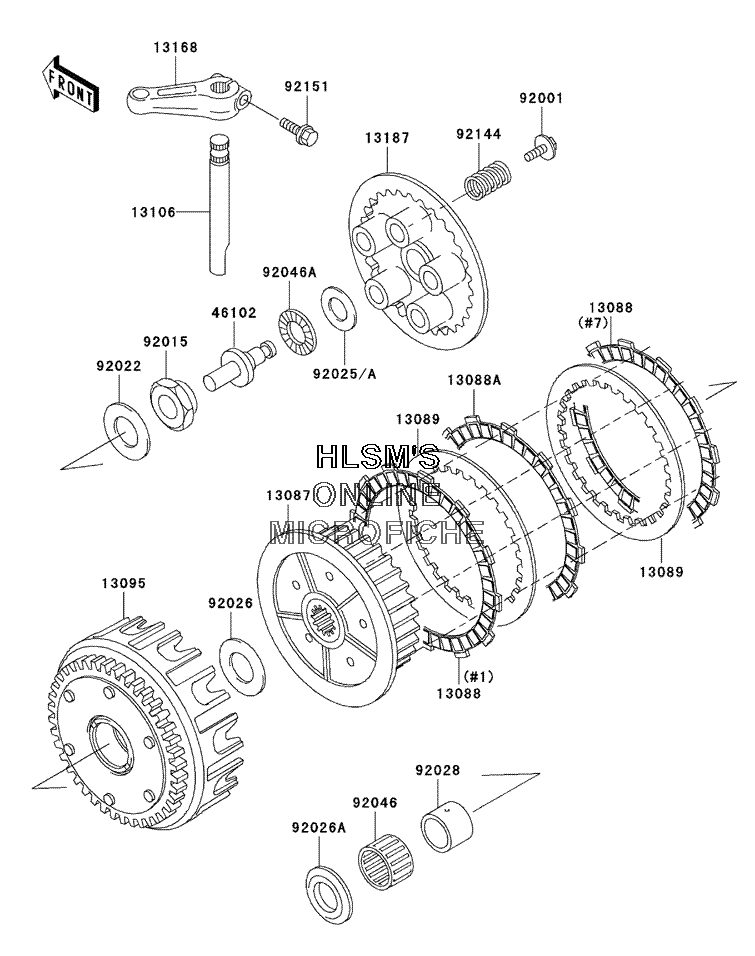

CLUTCH для Kawasaki ZR-7S - 2001 года выпуска

  • №
    Артикул
    Название
  • 13087
    13087-043 HUB, CLUTCH
    HUB, CLUTCH
  • 13088
    13088-1052 PLATE, FRICTION
    PLATE, FRICTION
  • 13088A
    13088-1107 PLATE, FRICTION
    PLATE, FRICTION
  • 13089
    13089-1097 PLATE, CLUTCH
    PLATE, CLUTCH
  • 13095
    13095-1389 HOUSING, COMP, CLUTCH
    HOUSING, COMP, CLUTCH
  • 13106
    13106-1124 SHAFT, CLUTCH RELEASE
    SHAFT, CLUTCH RELEASE
  • 13168
    13168-1547 LEVER, CLUTCH RELEASE
    LEVER, CLUTCH RELEASE
  • 13187
    13187-1014 PLATE, CLUTCH OPERATING
    PLATE, CLUTCH OPERATING
  • 46102
    46102-1313 ROD, CLUTCH
    ROD, CLUTCH
  • 92001
    92001-1066 BOLT, FLANGED, 6X18
    BOLT, FLANGED, 6X18
  • 92015
    92015-1555 NUT, 20MM
    NUT, 20MM
  • 92022
    92022-1116 WASHER, 20.3X36X2.3
    WASHER, 20.3X36X2.3
  • 92025
    92025-1136 SHIM, 15.3X27.5X0.90
    SHIM, 15.3X27.5X0.90
  • 92025A
    92025-1137 SHIM, 15.3X27.5X1.20 (OPT)
    SHIM, 15.3X27.5X1.20 (OPT)
  • 92026
    92026-022 SPACER, 25.5X47X2.5
    SPACER, 25.5X47X2.5
  • 92026A
    92026-116 SPACER, THRUST, T=5.5
    SPACER, THRUST, T=5.5
  • 92028
    92028-178 BUSHING, 25X32X23.6
    BUSHING, 25X32X23.6
  • 92046
    92046-028 BEARING, NEEDLE, KTV323723
    BEARING, NEEDLE, KTV323723
  • 92046A
    92046-1052 BEARING, NEEDLE, AXK1102
    BEARING, NEEDLE, AXK1102
  • 92144
    92144-1889 SPRING, CLUTCH
    SPRING, CLUTCH
  • 92151
    92151-1252 BOLT, 6X20
    BOLT, 6X20
