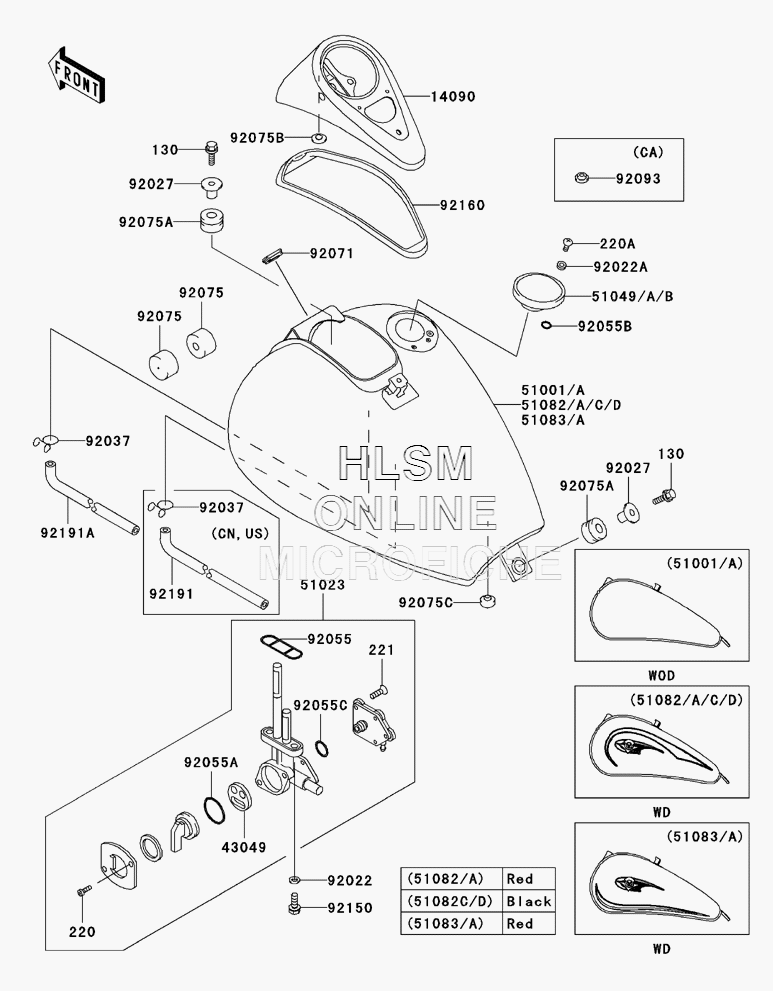

FUEL TANK для Kawasaki Vulcan 500 LTD - 2001 года выпуска`
-
№АртикулНазвание
-
1409014090-1560 COVER, METERCOVER, METER
-
4304943049-1091 PACKING, TAP VALVEPACKING, TAP VALVE
-
5102351023-1267 TAP, ASSY, FUELTAP, ASSY, FUEL
-
51049B51049-1126 CAP, TANK, FUELCAP, TANK, FUEL
-
5108251082-5048-L1 TANK, COMP, FUEL (C.C.RED) (EXCEPT CALIF.)TANK, COMP, FUEL (C.C.RED) (EXCEPT CALIF.)
-
51082A51082-5049-L1 TANK, COMP, FUEL (C.C.RED) (CALIF. ONLY)TANK, COMP, FUEL (C.C.RED) (CALIF. ONLY)
-
9202292022-183 WASHER, 6.2X11X1.5WASHER, 6.2X11X1.5
-
92022A92022-1977 WASHER, 5.1X10X1.0WASHER, 5.1X10X1.0
-
9202792027-1780 COLLAR, L=19.3COLLAR, L=19.3
-
9203792037-147 CLAMP, TUBE (CALIF. ONLY)CLAMP, TUBE (CALIF. ONLY)
-
9203792037-147 CLAMP, TUBE (EXCEPT CALIF.)CLAMP, TUBE (EXCEPT CALIF.)
-
9205592055-1112 O-RING, FUEL TAP PACKINGO-RING, FUEL TAP PACKING
-
92055A92055-1419 O-RING, TAP LEVERO-RING, TAP LEVER
-
92055B92055-1552 O-RING, ID=9O-RING, ID=9
-
92055C92055-1664 O-RINGO-RING
-
9207192071-1187 GROMMETGROMMET
-
9207592075-125 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
92075A92075-1736 DAMPERDAMPER
-
92075B92075-1876 DAMPERDAMPER
-
92075C92075-261 DAMPER, RUBBERDAMPER, RUBBER
-
130130G0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
220220B0308 SCREW, PAN, CROSSCREW, PAN, CROS
-
220A220D0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
221221B0414 SCREW, CSK, CROS, 4X14SCREW, CSK, CROS, 4X14
-
9209392093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)SEAL, FUEL TANK CAP (CALIF. ONLY)
-
9215092150-1358 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9216092160-1593 DAMPER, METER COVERDAMPER, METER COVER
-
9219192191-1015 TUBE (EXCEPT CALIF.)TUBE (EXCEPT CALIF.)
-
92191A92191-1578 TUBE, DRAINTUBE, DRAIN
