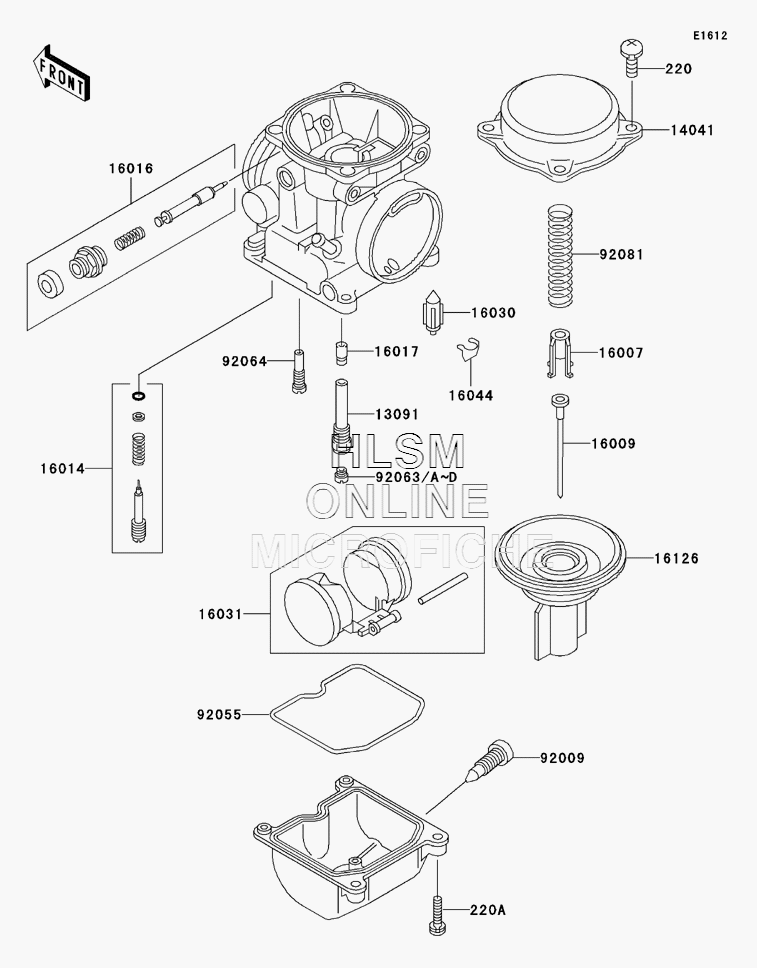

CARBURETOR PARTS для Kawasaki Vulcan 500 LTD - 2001 года выпуска

  • №
    Артикул
    Название
  • 220
    220D0408 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220D0414 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 13091
    13091-1713 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 14041
    14041-1076 TOP, CHAMBER, MIXING, OUTSIDE
    TOP, CHAMBER, MIXING, OUTSIDE
  • 16007
    16007-1120 SEAT, SPRING, THROTTLE VALVE
    SEAT, SPRING, THROTTLE VALVE
  • 16009
    16009-1895 NEEDLE, JET, N2WE
    NEEDLE, JET, N2WE
  • 16014
    16014-1081 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1092 PLUNGER
    PLUNGER
  • 16017
    16017-1376 JET, NEEDLE
    JET, NEEDLE
  • 16030
    16030-1007 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1077 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 16126
    16126-1160 VALVE, VACUUM
    VALVE, VACUUM
  • 92009
    92009-1551 SCREW, DRAIN, M6X0.75
    SCREW, DRAIN, M6X0.75
  • 92055
    92055-1222 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92063
    92063-1005 JET, MAIN, #98 (RACING USE ONLY)
    JET, MAIN, #98 (RACING USE ONLY)
  • 92063A
    92063-1008 JET, MAIN, #100 (RACING USE ONLY)
    JET, MAIN, #100 (RACING USE ONLY)
  • 92063B
    92063-1009 JET, MAIN, #105 (RACING USE ONLY)
    JET, MAIN, #105 (RACING USE ONLY)
  • 92063C
    92063-1090 JET, MAIN, #102
    JET, MAIN, #102
  • 92063D
    92063-1116 JET, MAIN, #108 (RACING USE ONLY)
    JET, MAIN, #108 (RACING USE ONLY)
  • 92064
    92064-1101 JET, PILOT, #35
    JET, PILOT, #35
  • 92081
    92081-1925 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
