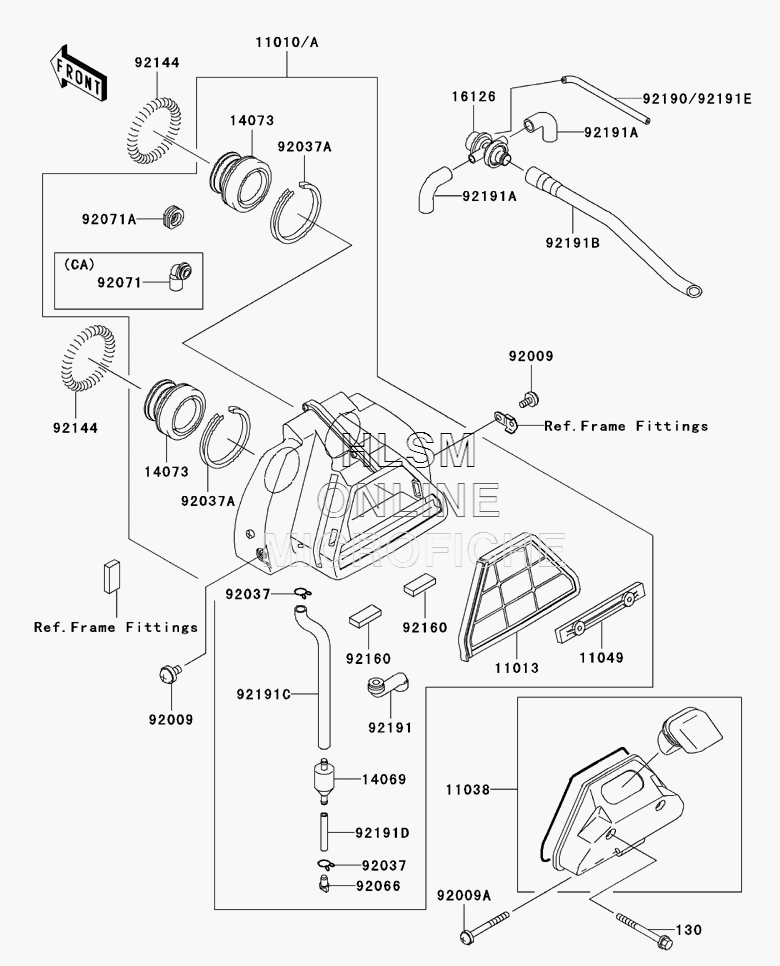

AIR CLEANER для Kawasaki Vulcan 500 LTD - 2001 года выпуска

№

Артикул

Название
130

130H0660 BOLT, FLANGED

BOLT, FLANGED
11010

11010-1577 FILTER, ASSY, AIR (CALIF. ONLY)

FILTER, ASSY, AIR (CALIF. ONLY)
11010A

11010-1744 FILTER, ASSY, AIR (EXCEPT CALIF.)

FILTER, ASSY, AIR (EXCEPT CALIF.)
11013

11013-1250 ELEMENT, AIR FILTER

ELEMENT, AIR FILTER
11038

11038-1107 CASE, ASSY, AIR FILTER

CASE, ASSY, AIR FILTER
11049

11049-1456 BRACKET

BRACKET
14069

14069-1051 BREATHER

BREATHER
14073

14073-1651 DUCT, AIR FILTER

DUCT, AIR FILTER
16126

16126-1318 VALVE, AIR SWITCH

VALVE, AIR SWITCH
92009

92009-1402 SCREW, 6X10

SCREW, 6X10
92009A

92009-1754 SCREW, 6X55

SCREW, 6X55
92037

92037-147 CLAMP, TUBE

CLAMP, TUBE
92037A

92037-1631 CLAMP, 69MM

CLAMP, 69MM
92066

92066-1211 PLUG, DRAIN

PLUG, DRAIN
92071

92071-1114 GROMMET, AIR FILTER (CALIF. ONLY)

GROMMET, AIR FILTER (CALIF. ONLY)
92071A

92071-1165 GROMMET

GROMMET
92144

92144-1771 SPRING, AIR FILTER DUCT

SPRING, AIR FILTER DUCT
92160

92160-1689 DAMPER

DAMPER
92190

92190-1444 TUBE, 4X9X276 (EXCEPT CALIF.)

TUBE, 4X9X276 (EXCEPT CALIF.)
92191

92191-1044 TUBE, BREATHER

TUBE, BREATHER
92191A

92191-1045 TUBE

TUBE
92191B

92191-1046 TUBE

TUBE
92191C

92191-1074 TUBE, AIR FILTER

TUBE, AIR FILTER
92191D

92191-1075 TUBE, 6X4X60

TUBE, 6X4X60
92191E

92191-1077 TUBE, 4X10X266 (CALIF. ONLY)

TUBE, 4X10X266 (CALIF. ONLY)
