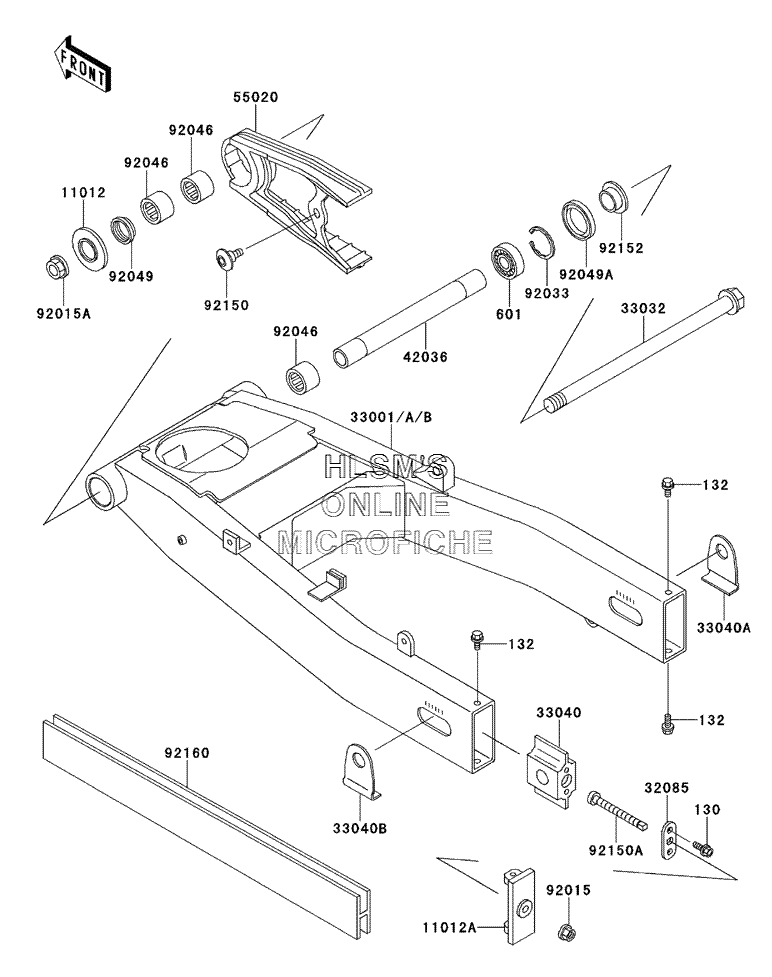

SUSPENSION - SWINGARM для Kawasaki NINJA ZX-6 - 2001 года выпуска`
-
№АртикулНазвание
-
130130H0614 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
132132E0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
601601A6004 BEARING, BALL, #6004BEARING, BALL, #6004
-
1101211012-1658 CAPCAP
-
11012A11012-1704 CAP, CHAIN ADJUSTERCAP, CHAIN ADJUSTER
-
3208532085-1351 STOPPER, CHAIN ADJUSTERSTOPPER, CHAIN ADJUSTER
-
3300133001-1488-TX ARM, COMP, SWING (SILVER NO.35) (CANADA ONLY)ARM, COMP, SWING (SILVER NO.35) (CANADA ONLY)
-
33001B33001-1488-5A ARM, COMP, SWING (SILVER NO.40) (US ONLY)ARM, COMP, SWING (SILVER NO.40) (US ONLY)
-
3303233032-1165 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1133 ADJUSTER, CHAIN, INSIDEADJUSTER, CHAIN, INSIDE
-
33040A33040-1135 ADJUSTER, CHAIN, OUTSIDE (RIGHT)ADJUSTER, CHAIN, OUTSIDE (RIGHT)
-
33040B33040-1141 ADJUSTER, CHAIN, OUTSIDE (LEFT)ADJUSTER, CHAIN, OUTSIDE (LEFT)
-
4203642036-1283 SLEEVE, SWING ARM, L=213SLEEVE, SWING ARM, L=213
-
5502055020-1524 GUARD, CHAINGUARD, CHAIN
-
9201592015-1143 NUT, 8MMNUT, 8MM
-
92015A92015-1724 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204692046-1235 BEARING, NEEDLE, 7E, HVS28X34X17BEARING, NEEDLE, 7E, HVS28X34X17
-
9204992049-1181 SEAL, OILSEAL, OIL
-
92049A92049-1314 SEAL, OIL, MHSA25 42 6SEAL, OIL, MHSA25 42 6
-
9215092150-1154 BOLT, SOCKET, 6MMBOLT, SOCKET, 6MM
-
92150A92150-1285 BOLT, CHAIN ADJUSTERBOLT, CHAIN ADJUSTER
-
9215292152-1234 COLLAR, SWING ARM, L=12.5COLLAR, SWING ARM, L=12.5
-
9216092160-1174 DAMPER, SWING ARMDAMPER, SWING ARM
