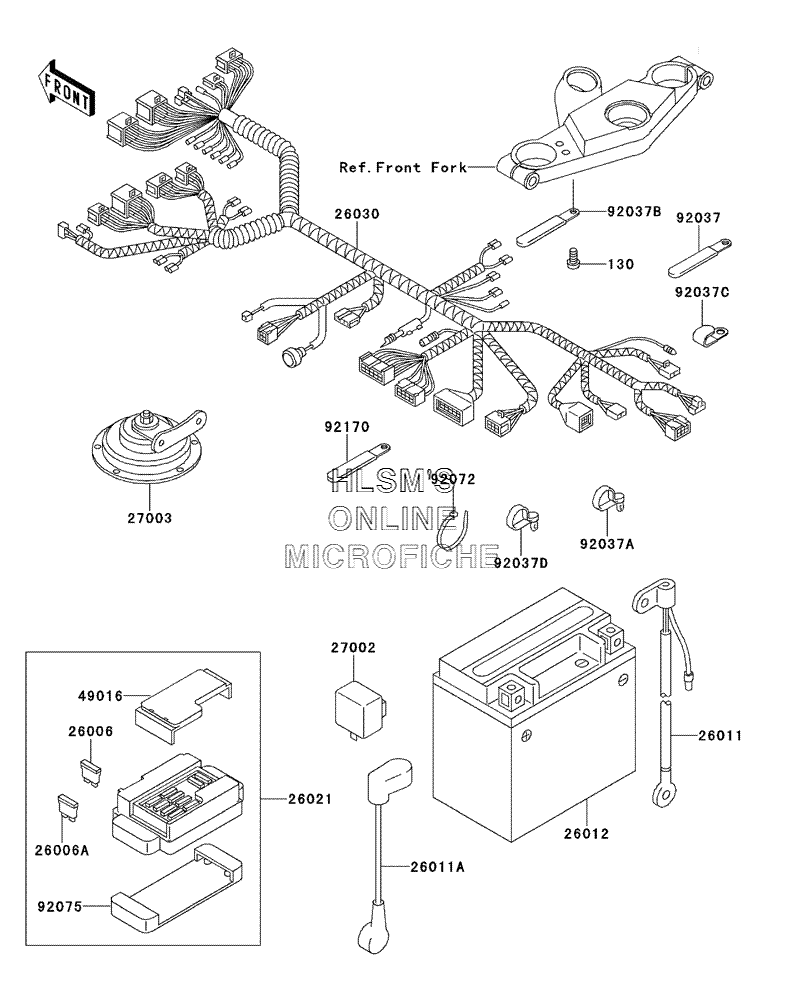

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA ZX-6 - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0614 BOLT, FLANGED, 6X14 (BLACK)
    BOLT, FLANGED, 6X14 (BLACK)
  • 26006
    26006-1067 FUSE, 30A, G
    FUSE, 30A, G
  • 26006A
    26006-1068 FUSE, 10A, R
    FUSE, 10A, R
  • 26011
    26011-1429 WIRE, LEAD, BATTERY (-)
    WIRE, LEAD, BATTERY (-)
  • 26011A
    26011-1540 WIRE, LEAD, BATTERY (+)
    WIRE, LEAD, BATTERY (+)
  • 26012
    26012-1330 BATTERY, YTX12, BS, 12V 10AH
    BATTERY, YTX12, BS, 12V 10AH
  • 26021
    26021-1089 JUNCTION BOX
    JUNCTION BOX
  • 26030
    26030-1476 HARNESS, MAIN
    HARNESS, MAIN
  • 27002
    27002-1101 RELAY, ASSY, TURN SIGNAL
    RELAY, ASSY, TURN SIGNAL
  • 27003
    27003-1316 HORN
    HORN
  • 49016
    49016-1177 COVER, SEAL, FUSE
    COVER, SEAL, FUSE
  • 92037
    92037-1069 CLAMP, WIRING HARNESS, L=60
    CLAMP, WIRING HARNESS, L=60
  • 92037A
    92037-1163 CLAMP, SPEED, L=58
    CLAMP, SPEED, L=58
  • 92037B
    92037-1539 CLAMP, L=45
    CLAMP, L=45
  • 92037C
    92037-1877 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 92037D
    92037-1903 CLAMP, SPEED, L=80.5
    CLAMP, SPEED, L=80.5
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
  • 92075
    92075-1688 DAMPER, JUNCTION BOX
    DAMPER, JUNCTION BOX
  • 92170
    92170-1114 CLAMP, L=150
    CLAMP, L=150
