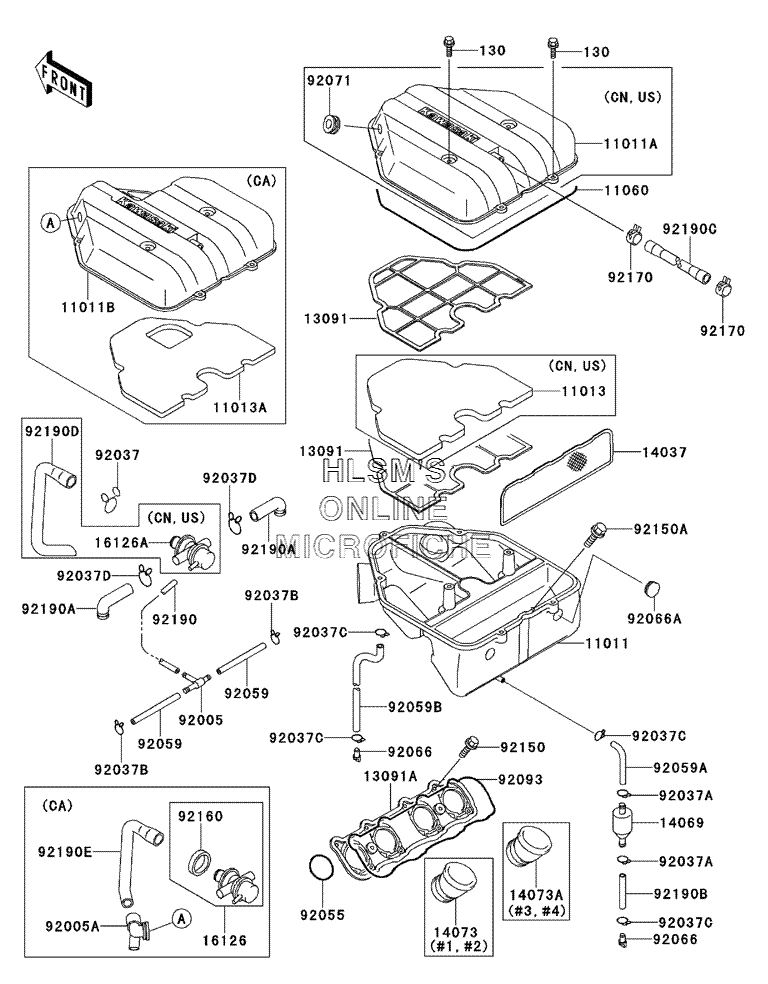

AIR CLEANER для Kawasaki NINJA ZX-6 - 2001 года выпуска`
-
№АртикулНазвание
-
1101111011-1394 CASE, AIR FILTER, LOWERCASE, AIR FILTER, LOWER
-
11011A11011-1395 CASE, AIR FILTER, UPPER (EXCEPT CALIF.)CASE, AIR FILTER, UPPER (EXCEPT CALIF.)
-
11011B11011-1412 CASE, AIR FILTER, UPPER (CALIF. ONLY)CASE, AIR FILTER, UPPER (CALIF. ONLY)
-
1101311013-1226 ELEMENT, AIR FILTER (EXCEPT CALIF.)ELEMENT, AIR FILTER (EXCEPT CALIF.)
-
11013A11013-1230 ELEMENT, AIR FILTER (CALIF. ONLY)ELEMENT, AIR FILTER (CALIF. ONLY)
-
1106011060-1317 GASKET, AIR FILTER CASEGASKET, AIR FILTER CASE
-
1309113091-1815 HOLDER, ELEMENTHOLDER, ELEMENT
-
13091A13091-1816 HOLDER, DUCTHOLDER, DUCT
-
1403714037-1165 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
1406914069-1051 BREATHERBREATHER
-
1407314073-1562 DUCT, CARBURETOR, #1 AND #2DUCT, CARBURETOR, #1 AND #2
-
14073A14073-1563 DUCT, CARBURETOR, #3 AND #4DUCT, CARBURETOR, #3 AND #4
-
1612616126-1144 VALVE, AIR SWITCH (CALIF. ONLY)VALVE, AIR SWITCH (CALIF. ONLY)
-
16126A16126-1277 VALVE, AIR SWITCH (EXCEPT CALIF.)VALVE, AIR SWITCH (EXCEPT CALIF.)
-
9200592005-1017 FITTING, TUBE, T, TYPEFITTING, TUBE, T, TYPE
-
92005A92005-1253 FITTING, CANISTER (CALIF. ONLY)FITTING, CANISTER (CALIF. ONLY)
-
9203792037-1076 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1271 CLAMP, FUEL TUBECLAMP, FUEL TUBE
-
92037B92037-1712 CLAMPCLAMP
-
92037C92037-1972 CLAMP, TUBECLAMP, TUBE
-
92037D92037-213 CLAMP, TUBECLAMP, TUBE
-
9205592055-1434 O-RING, 67.7X3.1O-RING, 67.7X3.1
-
9205992059-1365 TUBE, 4X9X80TUBE, 4X9X80
-
92059A92059-1750 TUBE, 7X12X230TUBE, 7X12X230
-
92059B92059-1761 TUBE, 7X12X435 (GREEN)TUBE, 7X12X435 (GREEN)
-
9206692066-1211 PLUG, DRAINPLUG, DRAIN
-
92066A92066-1389 PLUGPLUG
-
9207192071-1028 GROMMET, AIR FILTER (EXCEPT CALIF.)GROMMET, AIR FILTER (EXCEPT CALIF.)
-
130130H0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
9209392093-1346 SEAL, DUCT HOLDERSEAL, DUCT HOLDER
-
9215092150-1661 BOLT, 5X12BOLT, 5X12
-
92150A92150-1662 BOLT, 6X20BOLT, 6X20
-
9216092160-1454 DAMPER, VALVE (CALIF. ONLY)DAMPER, VALVE (CALIF. ONLY)
-
9217092170-1060 CLAMPCLAMP
-
9219092190-1091 TUBE, 4X9X220TUBE, 4X9X220
-
92190A92190-1168 TUBE, AIR SWITCH VALVETUBE, AIR SWITCH VALVE
-
92190B92190-1200 TUBE, 7X12X45TUBE, 7X12X45
-
92190C92190-1346 TUBE, BREATHERTUBE, BREATHER
-
92190D92190-1416 TUBE, VALVE, AIR FILTER (EXCEPT CALIF.)TUBE, VALVE, AIR FILTER (EXCEPT CALIF.)
-
92190E92190-1435 TUBE, AIR SWITCH, FITTING (CALIF. ONLY)TUBE, AIR SWITCH, FITTING (CALIF. ONLY)
