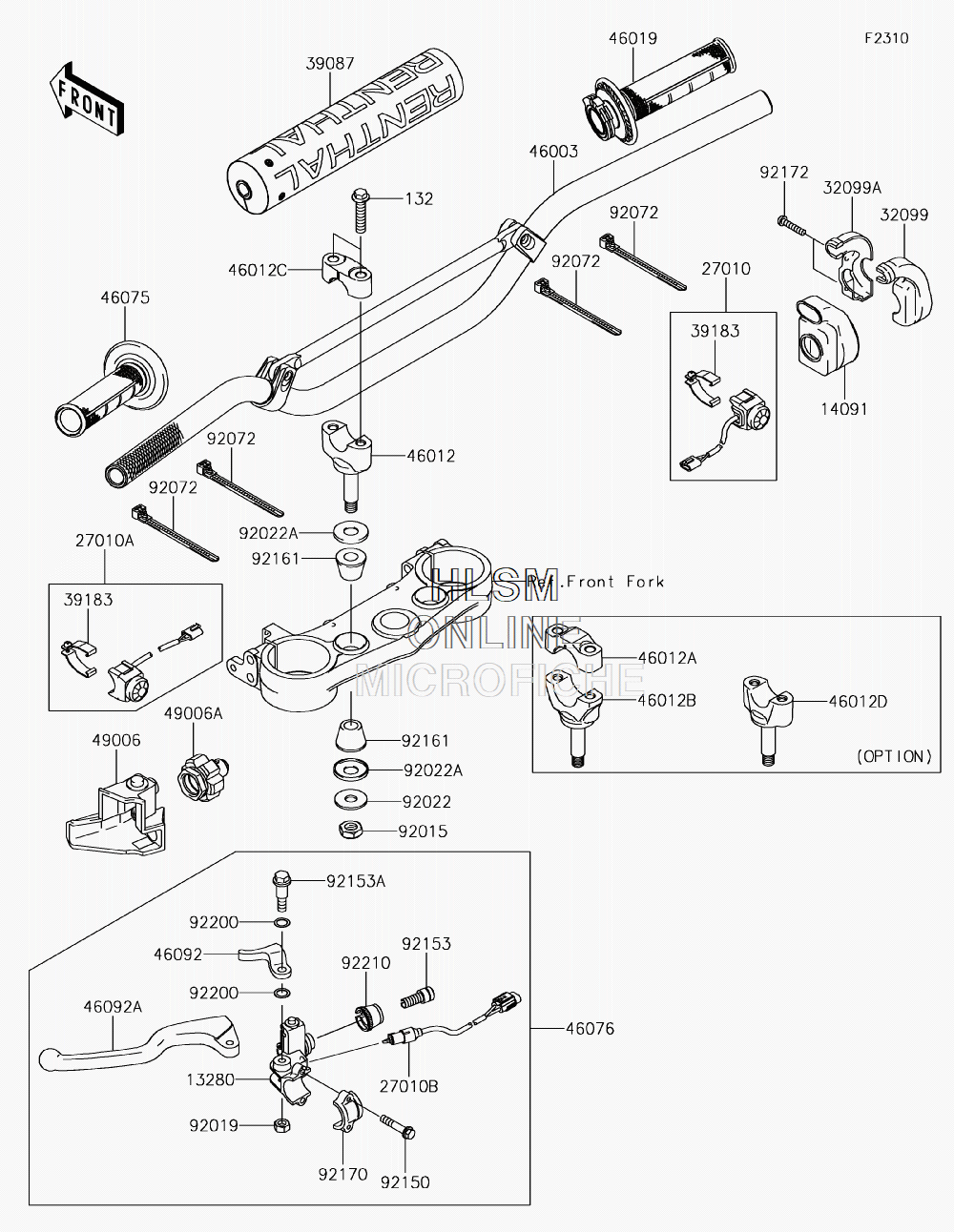

HANDLEBAR для Kawasaki KLX450R (AUSTRALIAN) (KLX450AKF) - 2019 года выпуска`
-
№АртикулНазвание
-
132132BA0835 BOLT-FLANGED-SMALL, 8X35BOLT-FLANGED-SMALL, 8X35
-
1328013280-0213 HOLDER, CLUTCH LEVERHOLDER, CLUTCH LEVER
-
1409114091-0182 COVER, THROTTLE CASECOVER, THROTTLE CASE
-
2701027010-0069 SWITCH, ENGINE STARTSWITCH, ENGINE START
-
27010A27010-0070 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
27010B27010-0071 SWITCH, CLUTCHSWITCH, CLUTCH
-
3209932099-0002 CASE, THROTTLE, REARCASE, THROTTLE, REAR
-
32099A32099-0003 CASE, THROTTLE, FRONTCASE, THROTTLE, FRONT
-
3908739087-0004 PAD-HANDLEPAD-HANDLE
-
3918339183-1059 BAND-ASSY, SWITCHBAND-ASSY, SWITCH
-
4600346003-0077 HANDLEHANDLE
-
4601246012-0013-21 HOLDER-HANDLE, LOWER, (F.BLACK)HOLDER-HANDLE, LOWER, (F.BLACK)
-
46012A46012-0020-21 HOLDER-HANDLE, UPPER, FAT BAR, (BLACK) (OPTION)HOLDER-HANDLE, UPPER, FAT BAR, (BLACK) (OPTION)
-
46012B46012-0021-21 HOLDER-HANDLE, LOWER, FAT BAR, (BLACK) (OPTION)HOLDER-HANDLE, LOWER, FAT BAR, (BLACK) (OPTION)
-
46012C46012-0023-21 HOLDER-HANDLE, UPPER, (F.BLACK)HOLDER-HANDLE, UPPER, (F.BLACK)
-
46012D46012-0048-21 HOLDER-HANDLE, LOWER, (F.BLACK) (OPTION)HOLDER-HANDLE, LOWER, (F.BLACK) (OPTION)
-
4601946019-0069 GRIP-ASSY, THROTTLEGRIP-ASSY, THROTTLE
-
4607546075-0615 GRIP, LEFT HANDGRIP, LEFT HAND
-
4607646076-0041 LEVER-ASSY-GRIP, CLUTCH & STARTERLEVER-ASSY-GRIP, CLUTCH & STARTER
-
4609246092-0001 LEVER-GRIP, STARTERLEVER-GRIP, STARTER
-
46092A46092-0025 LEVER-GRIP, CLUTCHLEVER-GRIP, CLUTCH
-
4900649006-0051 BOOT, CLUTCH LEVERBOOT, CLUTCH LEVER
-
49006A49006-0060 BOOT, CLUTCH CABLEBOOT, CLUTCH CABLE
-
9201592015-1962 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9201992019-008 NUT, LOCK, 6MMNUT, LOCK, 6MM
-
9202292022-1088 WASHER, 10.2X28X2WASHER, 10.2X28X2
-
92022A92022-1737 WASHERWASHER
-
9207292072-0055 BAND, L=100BAND, L=100
-
9215092150-1474 BOLTBOLT
-
9215392153-0773 BOLT, BOLT ADJUSTINGBOLT, BOLT ADJUSTING
-
92153A92153-1506 BOLT, 6MMBOLT, 6MM
-
9216192161-0113 DAMPER, HANDLE HOLDERDAMPER, HANDLE HOLDER
-
9217092170-1226 CLAMP, LEVER HOLDERCLAMP, LEVER HOLDER
-
9217292172-0069 SCREW, 5X20SCREW, 5X20
-
9220092200-0300 WASHERWASHER
-
9221092210-0167 NUT, BOLT WIRE ADJUSTINGNUT, BOLT WIRE ADJUSTING
