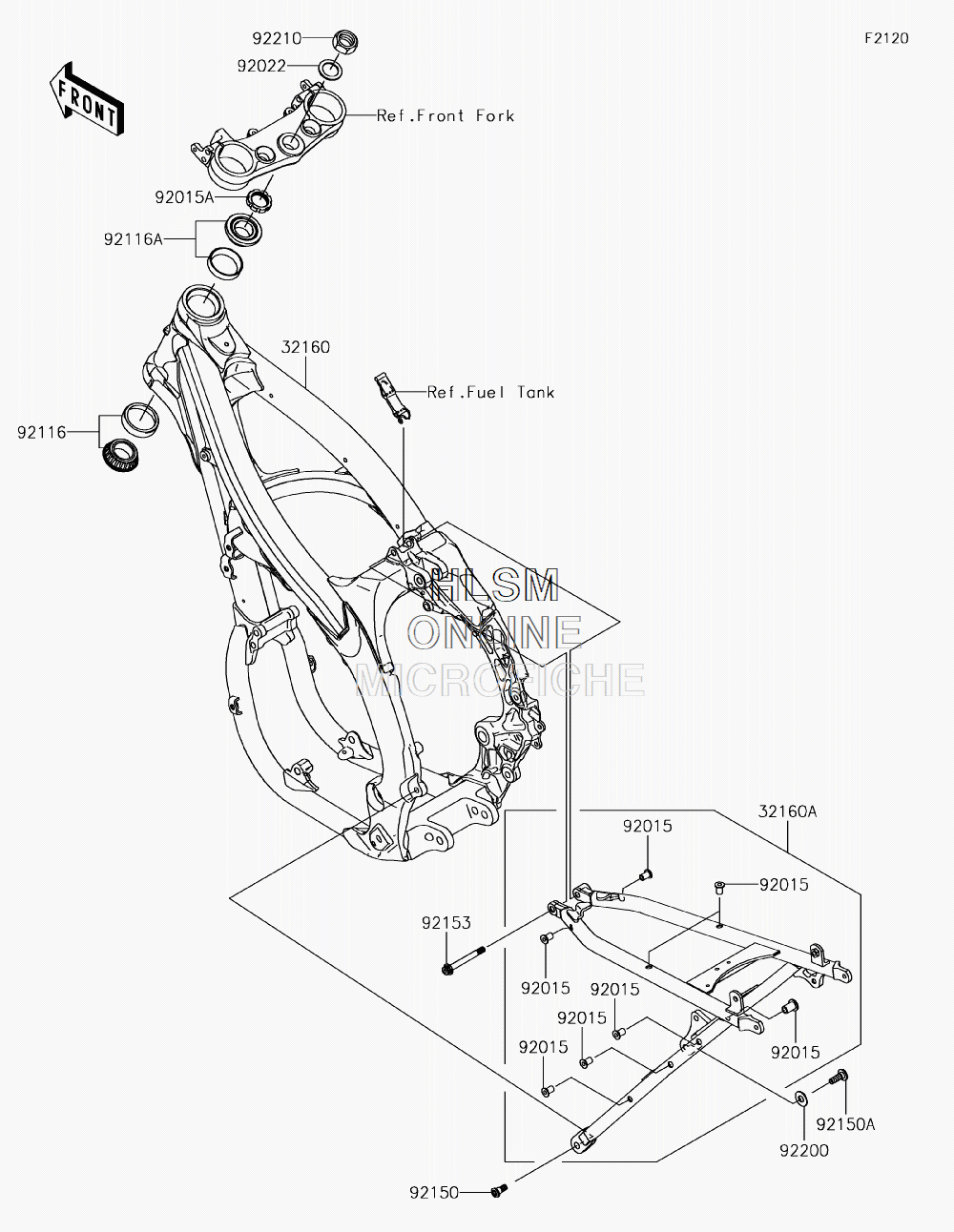

FRAME для Kawasaki KLX450R (AUSTRALIAN) (KLX450AKF) - 2019 года выпуска
-
№АртикулНазвание
-
3216032160-0213 FRAME-COMP, FRONTFRAME-COMP, FRONT
-
32160A32160-0333 FRAME-COMP, REARFRAME-COMP, REAR
-
9201592015-1791 NUT, POP, 6MM, L=15NUT, POP, 6MM, L=15
-
92015A92015-1861 NUT, STEERING STEM, 28MMNUT, STEERING STEM, 28MM
-
9202292022-250 WASHER, 25X36X2.3WASHER, 25X36X2.3
-
9211692116-1069 BEARING-ROLLER, HI-CAP32006JRRSBEARING-ROLLER, HI-CAP32006JRRS
-
92116A92116-1076 BEARING-ROLLER, HI-CAP320/28JRRBEARING-ROLLER, HI-CAP320/28JRR
-
9215092150-1760 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
92150A92150-1845 BOLT, 8X25BOLT, 8X25
-
9215392153-1790 BOLT, SOCKET, 8X74BOLT, SOCKET, 8X74
-
9220092200-0154 WASHER, 10.5X24X1.5WASHER, 10.5X24X1.5
-
9221092210-0066 NUT, 24MMNUT, 24MM
