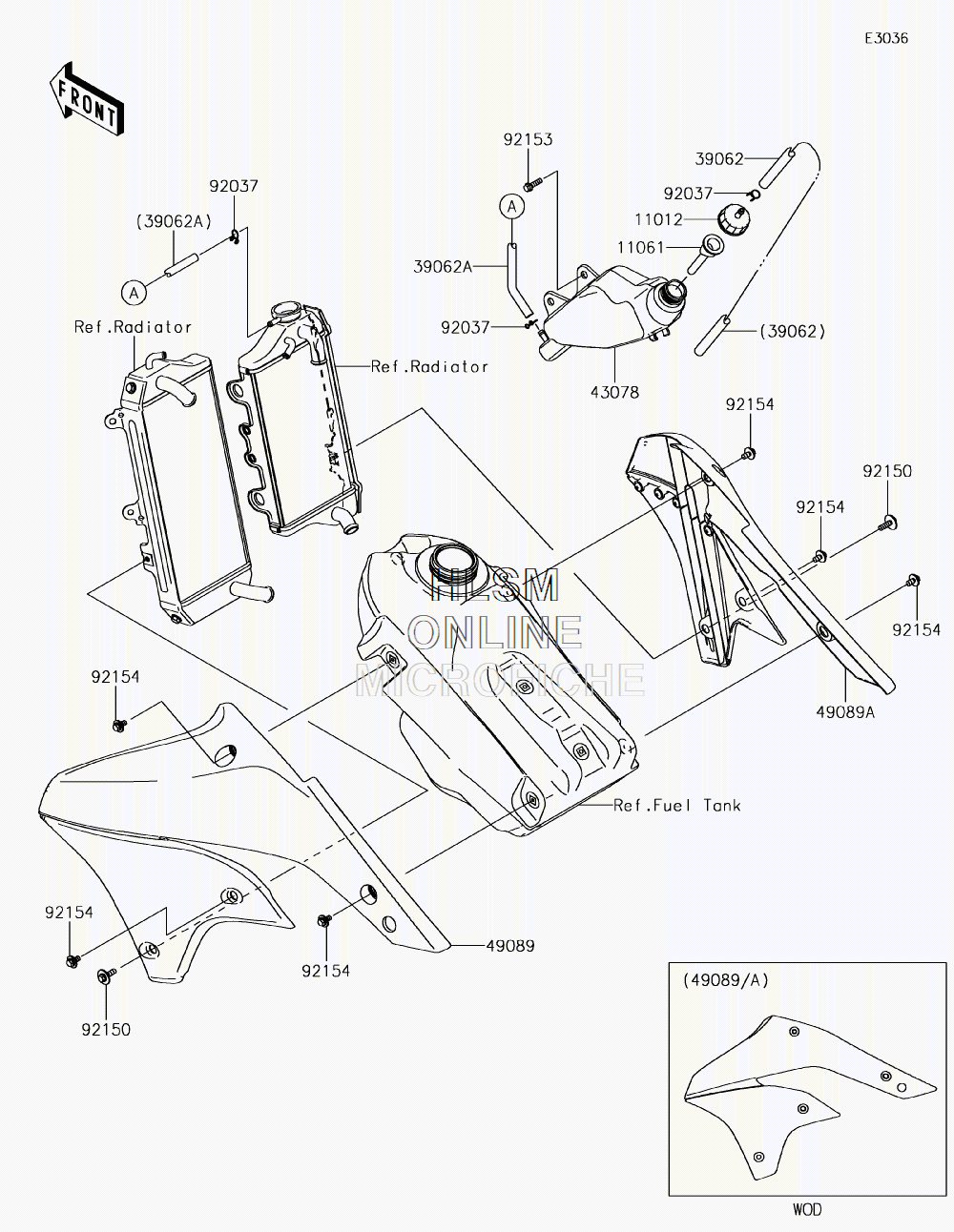

ENGINE SHROUDS для Kawasaki KLX450R (AUSTRALIAN) (KLX450AKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1854 CAP
    CAP
  • 11061
    11061-0043 GASKET
    GASKET
  • 39062
    39062-0187 HOSE-COOLING, OVERFLOW
    HOSE-COOLING, OVERFLOW
  • 39062A
    39062-0235 HOSE-COOLING, RESERVOIR-RAD
    HOSE-COOLING, RESERVOIR-RAD
  • 43078
    43078-0039 RESERVOIR
    RESERVOIR
  • 49089
    49089-0042-25M SHROUD-ENGINE, LEFT HAND, UP (GREEN) + LO (EBONY)
    SHROUD-ENGINE, LEFT HAND, UP (GREEN) + LO (EBONY)
  • 49089A
    49089-0055-25M SHROUD-ENGINE, RIGHT HAND, UP (GREEN) + LO (EBONY)
    SHROUD-ENGINE, RIGHT HAND, UP (GREEN) + LO (EBONY)
  • 92037
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92150
    92150-1801 BOLT, 6X20
    BOLT, 6X20
  • 92153
    92153-0502 BOLT, 6X20
    BOLT, 6X20
  • 92154
    92154-1931 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
