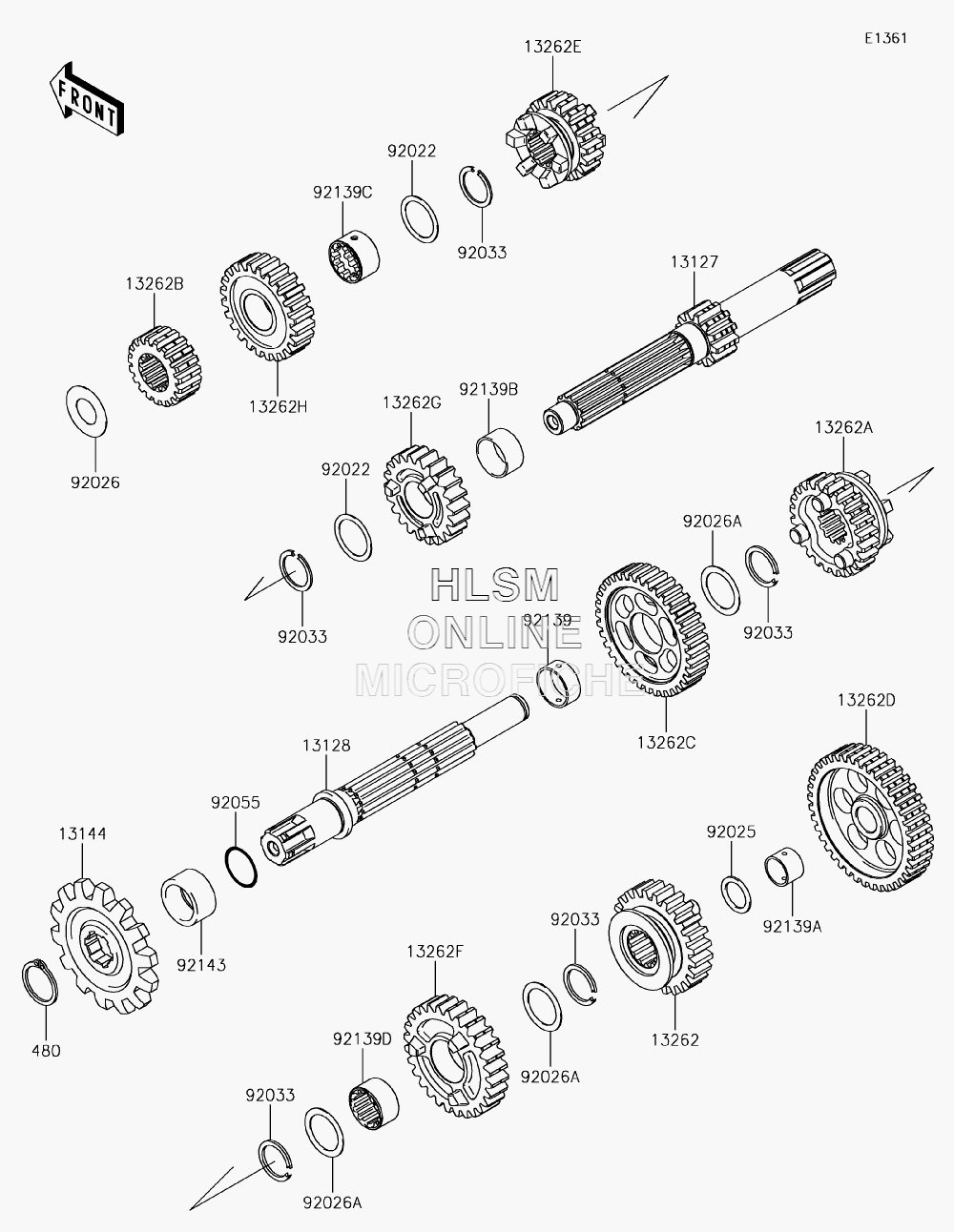

TRANSMISSION для Kawasaki KLX140G (KLX140CJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 13127
    13127-0074 SHAFT-TRANSMISSION INPUT, 15T
    SHAFT-TRANSMISSION INPUT, 15T
  • 13128
    13128-0051 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13144
    13144-0045 SPROCKET-OUTPUT, 13T
    SPROCKET-OUTPUT, 13T
  • 13262
    13262-0459 GEAR, OUTPUT 4TH, 26T
    GEAR, OUTPUT 4TH, 26T
  • 13262A
    13262-0502 GEAR, OUTPUT 5TH, 24T
    GEAR, OUTPUT 5TH, 24T
  • 13262B
    13262-0577 GEAR, INPUT 2ND, 19T
    GEAR, INPUT 2ND, 19T
  • 13262C
    13262-0578 GEAR, OUTPUT 2ND, 36T
    GEAR, OUTPUT 2ND, 36T
  • 13262D
    13262-0579 GEAR, OUTPUT LOW, 40T
    GEAR, OUTPUT LOW, 40T
  • 13262E
    13262-0662 GEAR, INPUT 3RD, 19T
    GEAR, INPUT 3RD, 19T
  • 13262F
    13262-0738 GEAR, OUTPUT 3RD, 28T
    GEAR, OUTPUT 3RD, 28T
  • 13262G
    13262-0769 GEAR, INPUT 4TH, 22T
    GEAR, INPUT 4TH, 22T
  • 13262H
    13262-0770 GEAR, INPUT 5TH, 24T
    GEAR, INPUT 5TH, 24T
  • 480
    480J1700 CIRCLIP-TYPE-C, 17MM
    CIRCLIP-TYPE-C, 17MM
  • 92022
    92022-1799 WASHER, 17.3X22X0.5
    WASHER, 17.3X22X0.5
  • 92025
    92025-1280 SHIM
    SHIM
  • 92026
    92026-0727 SPACER
    SPACER
  • 92026A
    92026-1037 SPACER, 17.2X23X0.5
    SPACER, 17.2X23X0.5
  • 92033
    92033-1060 RING-SNAP, 17MM
    RING-SNAP, 17MM
  • 92055
    92055-0151 RING-O, 16.8X1.9
    RING-O, 16.8X1.9
  • 92139
    92139-0001 BUSHING
    BUSHING
  • 92139A
    92139-0002 BUSHING, 12X14X9.4
    BUSHING, 12X14X9.4
  • 92139B
    92139-0282 BUSHING, 17X19X9.5
    BUSHING, 17X19X9.5
  • 92139C
    92139-0283 BUSHING, 14.5X17.25X11.0
    BUSHING, 14.5X17.25X11.0
  • 92139D
    92139-0286 BUSHING
    BUSHING
  • 92143
    92143-1680 COLLAR, SPROCKET
    COLLAR, SPROCKET
