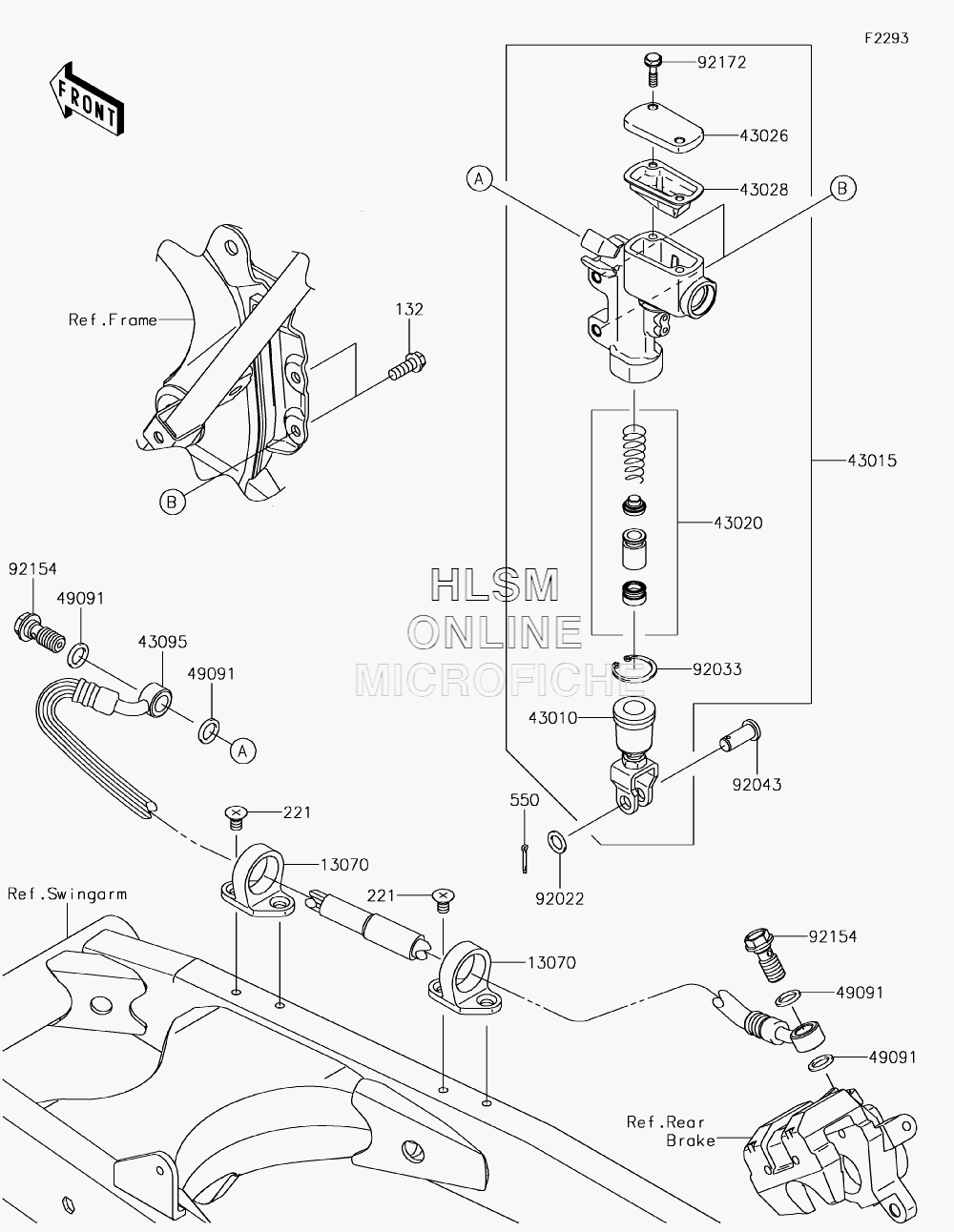

BRAKE - MASTER CYLINDER - REAR для Kawasaki KLX140G (KLX140CJF) - 2018 года выпуска`
-
№АртикулНазвание
-
1307013070-1144 GUIDE, HOSEGUIDE, HOSE
-
132132BA0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
221221AA0610 SCREW-CSK-CROS, 6X10SCREW-CSK-CROS, 6X10
-
4301043010-0006 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0099 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0008 CAP-BRAKECAP-BRAKE
-
4302843028-1092 DIAPHRAGMDIAPHRAGM
-
4309543095-0954 HOSE-BRAKE, REAR, 588MMHOSE-BRAKE, REAR, 588MM
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9202292022-1028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
9204392043-0004 PINPIN
-
9215492154-0226 BOLT, OIL, L=23BOLT, OIL, L=23
-
9217292172-0286 SCREWSCREW
