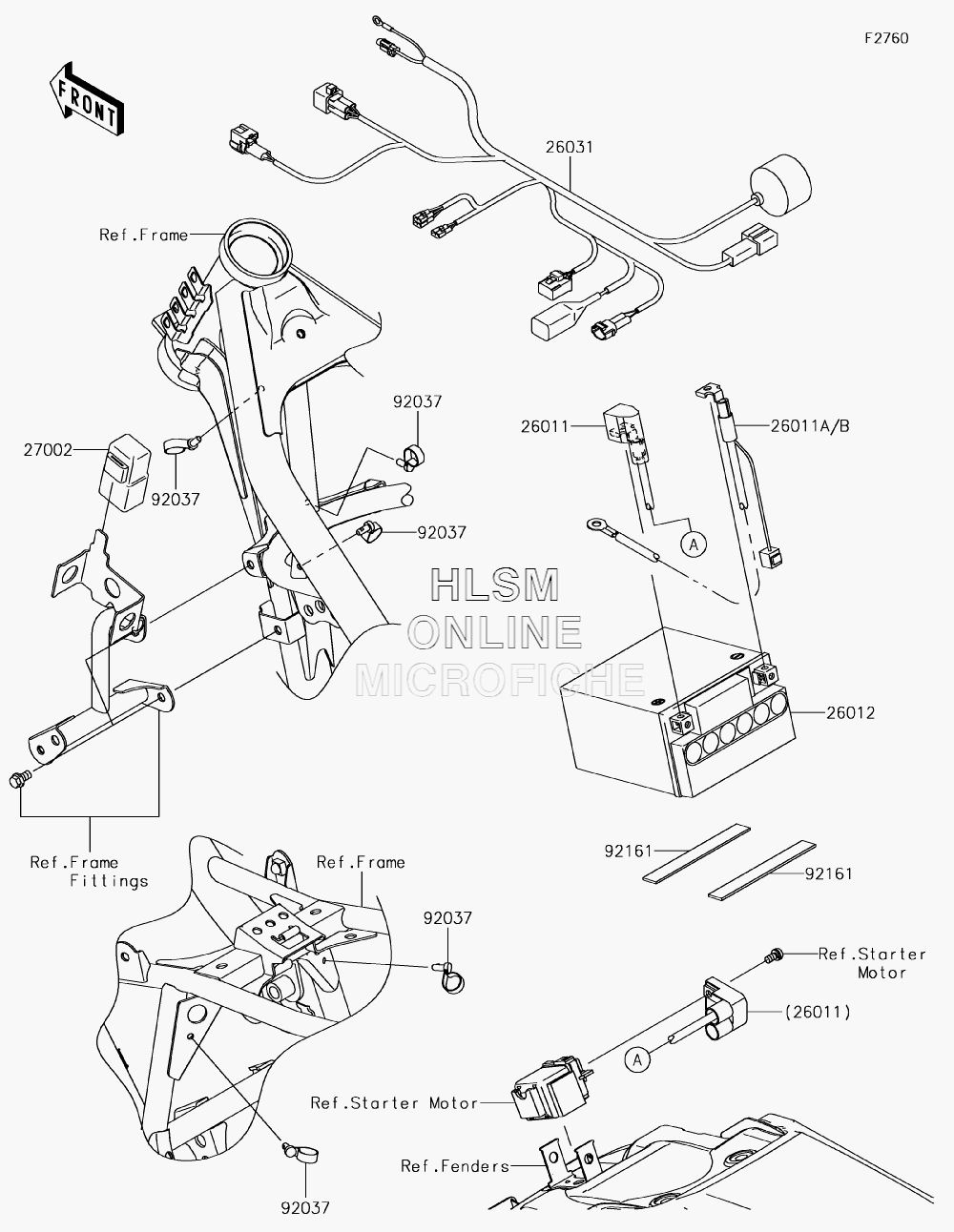

ELECTRICAL - CHASSIS для Kawasaki KLX140G (KLX140CJF) - 2018 года выпуска
-
№АртикулНазвание
-
2601126011-0153 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
26011B26011-0969 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
2601226012-0683 BATTERY, FTX7L-BS, 12V 6AHBATTERY, FTX7L-BS, 12V 6AH
-
2603126031-1997 HARNESS, MAINHARNESS, MAIN
-
2700227002-1086 RELAY-ASSYRELAY-ASSY
-
9203792037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
9216192161-0543 DAMPERDAMPER
