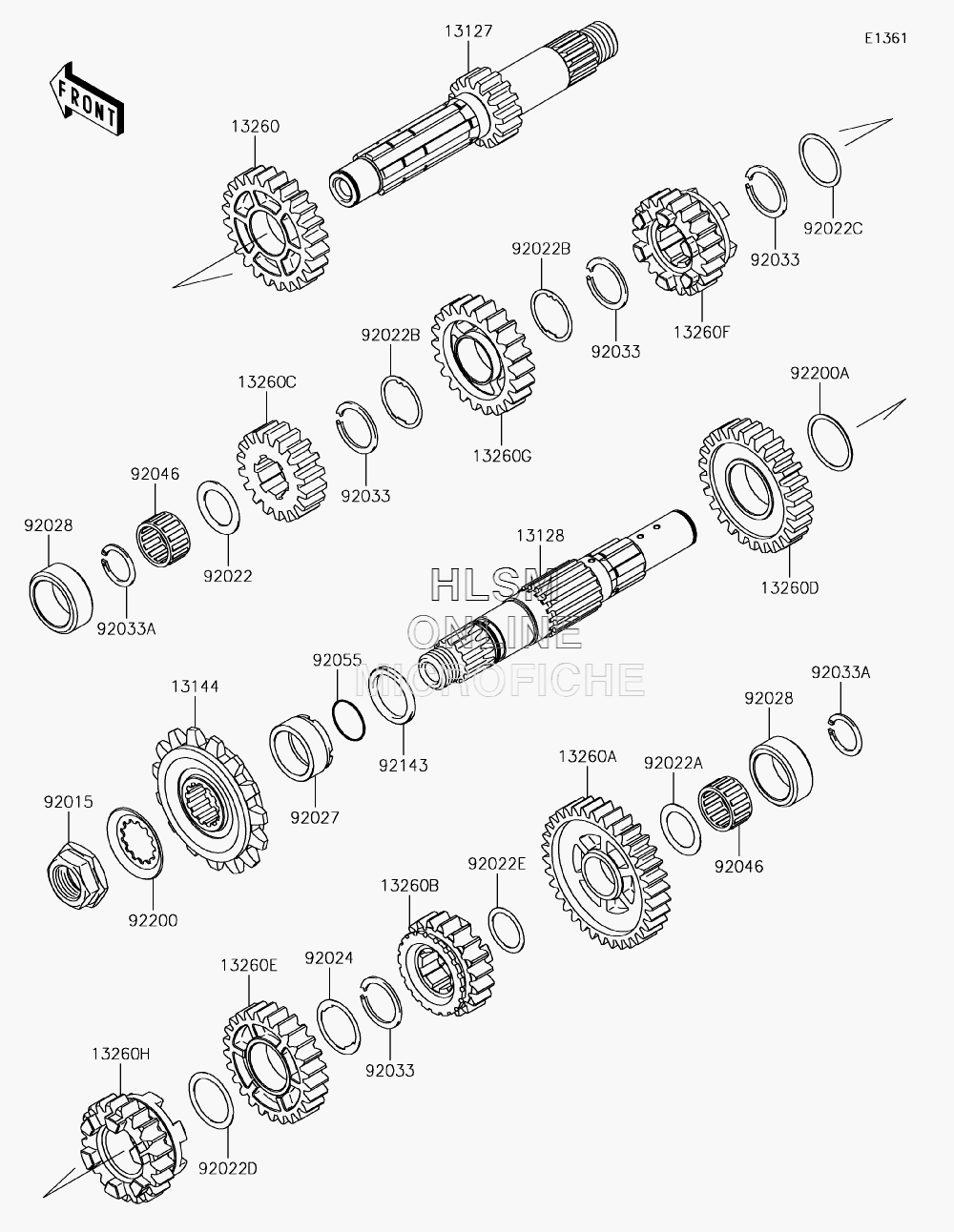

TRANSMISSION для Kawasaki KLR650 CAMO (KL650EJFA) - 2018 года выпуска`
-
№АртикулНазвание
-
1312713127-0652 SHAFT-TRANSMISSION INPUT, 15TSHAFT-TRANSMISSION INPUT, 15T
-
1312813128-0674 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-1253 SPROCKET-OUTPUT, 15TSPROCKET-OUTPUT, 15T
-
1326013260-1326 GEAR, INPUT TOP, 24TGEAR, INPUT TOP, 24T
-
13260A13260-1327 GEAR, OUTPUT LOW, 34TGEAR, OUTPUT LOW, 34T
-
13260B13260-1331 GEAR, OUTPUT TOP, 19TGEAR, OUTPUT TOP, 19T
-
13260C13260-1464 GEAR, INPUT 2ND, 18TGEAR, INPUT 2ND, 18T
-
13260D13260-1465 GEAR, OUTPUT 2ND, 26TGEAR, OUTPUT 2ND, 26T
-
13260E13260-1467 GEAR, OUTPUT 3RD, 25TGEAR, OUTPUT 3RD, 25T
-
13260F13260-1518 GEAR, INPUT 3RD, 22TGEAR, INPUT 3RD, 22T
-
13260G13260-1519 GEAR, INPUT 4TH, 22TGEAR, INPUT 4TH, 22T
-
13260H13260-1520 GEAR, OUTPUT 4TH, 21TGEAR, OUTPUT 4TH, 21T
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9202292022-112 WASHER, 20.5X30X1, STEELWASHER, 20.5X30X1, STEEL
-
92022A92022-1479 WASHER, 20.3X29X0.5WASHER, 20.3X29X0.5
-
92022B92022-1482 WASHER, TOOTHED, 25.3X29.5X0.5WASHER, TOOTHED, 25.3X29.5X0.5
-
92022C92022-159 WASHER, 25.3X30X0.5WASHER, 25.3X30X0.5
-
92022D92022-225 WASHER, 25.3X32X0.5WASHER, 25.3X32X0.5
-
92022E92022-252 WASHER, 20.5X25.5X0.5WASHER, 20.5X25.5X0.5
-
9202492024-038 WASHER, TOOTHED, 22.5X31X0.5WASHER, TOOTHED, 22.5X31X0.5
-
9202792027-1800 COLLAR, 25X32X15.3COLLAR, 25X32X15.3
-
9202892028-131 BUSHING, 26X35X14BUSHING, 26X35X14
-
9203392033-026 RING-SNAP, 24MMRING-SNAP, 24MM
-
92033A92033-029 RING-SNAP, 18MMRING-SNAP, 18MM
-
9204692046-1170 BEARING-NEEDLE, KT202614BEARING-NEEDLE, KT202614
-
9205592055-0196 RING-O, 21.5X1.5RING-O, 21.5X1.5
-
9214392143-1721 COLLAR, 25X32X3.0COLLAR, 25X32X3.0
-
9220092200-0851 WASHERWASHER
-
92200A92200-1170 WASHER, 2ND GEARWASHER, 2ND GEAR
