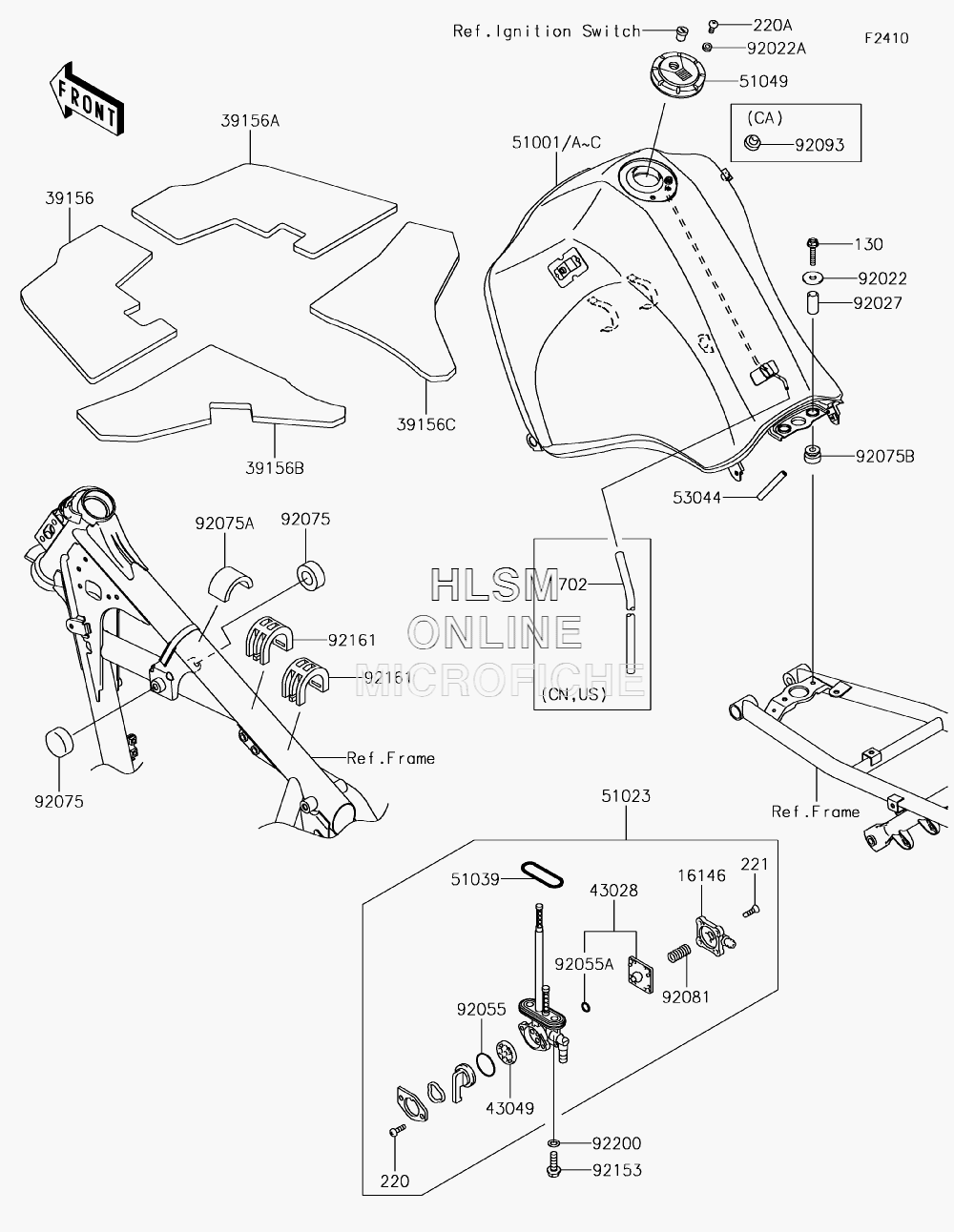

FUEL TANK для Kawasaki KLR650 CAMO (KL650EJFA) - 2018 года выпуска

  • №
    Артикул
    Название
  • 130
    130BB0630 BOLT-FLANGED, 6X30
    BOLT-FLANGED, 6X30
  • 16146
    16146-1010 COVER-ASSY, TAP DIAPHRAGM
    COVER-ASSY, TAP DIAPHRAGM
  • 220
    220AA0308 SCREW-PAN-CROS, 3X8
    SCREW-PAN-CROS, 3X8
  • 220A
    220AA0510 SCREW-PAN-CROS, 5X10
    SCREW-PAN-CROS, 5X10
  • 221
    221AA0414 SCREW-CSK-CROS, 4X14
    SCREW-CSK-CROS, 4X14
  • 39156
    39156-0620 PAD, FUEL TANK, FRONT, LEFT HAND
    PAD, FUEL TANK, FRONT, LEFT HAND
  • 39156A
    39156-0621 PAD, FUEL TANK, CENTER, RIGHT HAND
    PAD, FUEL TANK, CENTER, RIGHT HAND
  • 39156B
    39156-0622 PAD, FUEL TANK, REAR, LEFT HAND
    PAD, FUEL TANK, REAR, LEFT HAND
  • 39156C
    39156-0623 PAD, FUEL TANK, LOWER, RIGHT HAND
    PAD, FUEL TANK, LOWER, RIGHT HAND
  • 43028
    43028-1033 DIAPHRAGM
    DIAPHRAGM
  • 43049
    43049-1103 PACKING
    PACKING
  • 51001A
    51001-0367-51B TANK-COMP-FUEL, (M.M.C.GRAY) (EXCEPT CALIF.)
    TANK-COMP-FUEL, (M.M.C.GRAY) (EXCEPT CALIF.)
  • 51001C
    51001-0368-51B TANK-COMP-FUEL, (M.M.C.GRAY) CALIF. ONLY)
    TANK-COMP-FUEL, (M.M.C.GRAY) CALIF. ONLY)
  • 51023
    51023-0003 TAP-ASSY, FUEL
    TAP-ASSY, FUEL
  • 51039
    51039-003 RING, TAP FLANGED
    RING, TAP FLANGED
  • 51049
    51049-0049 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 53044
    53044-1249 TRIM, L=60
    TRIM, L=60
  • 702
    702A05620 TUBE-RUBBER, 5X8X620 (EXCEPT CALIF.)
    TUBE-RUBBER, 5X8X620 (EXCEPT CALIF.)
  • 92022
    92022-125 WASHER, 6.5X20X1.6
    WASHER, 6.5X20X1.6
  • 92022A
    92022-1977 WASHER, 5.1X10X1.0
    WASHER, 5.1X10X1.0
  • 92027
    92027-1856 COLLAR, 6.8X10X20
    COLLAR, 6.8X10X20
  • 92055
    92055-1085 RING-O, TAP LEVER
    RING-O, TAP LEVER
  • 92055A
    92055-1664 RING-O
    RING-O
  • 92075
    92075-101 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075A
    92075-1507 DAMPER
    DAMPER
  • 92075B
    92075-1660 DAMPER
    DAMPER
  • 92081
    92081-1240 SPRING, TAP DIAPHRAGM
    SPRING, TAP DIAPHRAGM
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
  • 92153
    92153-0746 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 92161
    92161-1686 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92200
    92200-0117 WASHER, 6.5X11.5X0.8
    WASHER, 6.5X11.5X0.8
