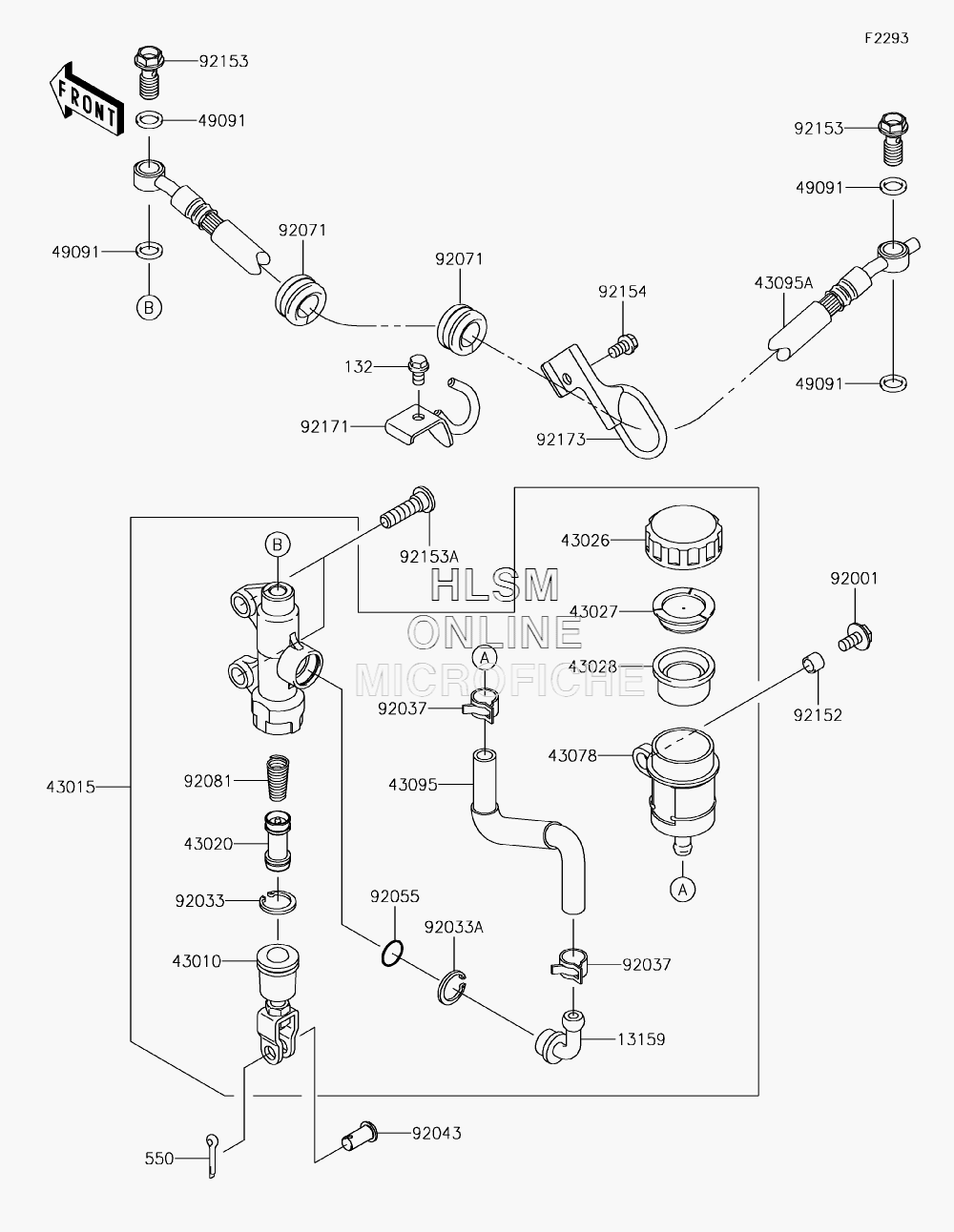

BRAKE - MASTER CYLINDER - REAR для Kawasaki KLR650 CAMO (KL650EJFA) - 2018 года выпуска`
-
№АртикулНазвание
-
1315913159-1056 CONNECTORCONNECTOR
-
132132BA0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
4301043010-1074 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0130 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4307843078-0060 RESERVOIRRESERVOIR
-
4309543095-0464 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43095A43095-0566 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9200192001-1860 BOLT, W/P, 6X16BOLT, W/P, 6X16
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1710 CLAMPCLAMP
-
9204392043-0104 PIN, 8X17PIN, 8X17
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9207192071-0056 GROMMET, 15X20X16GROMMET, 15X20X16
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215292152-0561 COLLAR, 7.1X9.5X7COLLAR, 7.1X9.5X7
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153A92153-1624 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9215492154-0950 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
9217192171-0712-18R CLAMP, BRAKE HOSE, (F.S.BLACK)CLAMP, BRAKE HOSE, (F.S.BLACK)
-
9217392173-0203 CLAMPCLAMP
