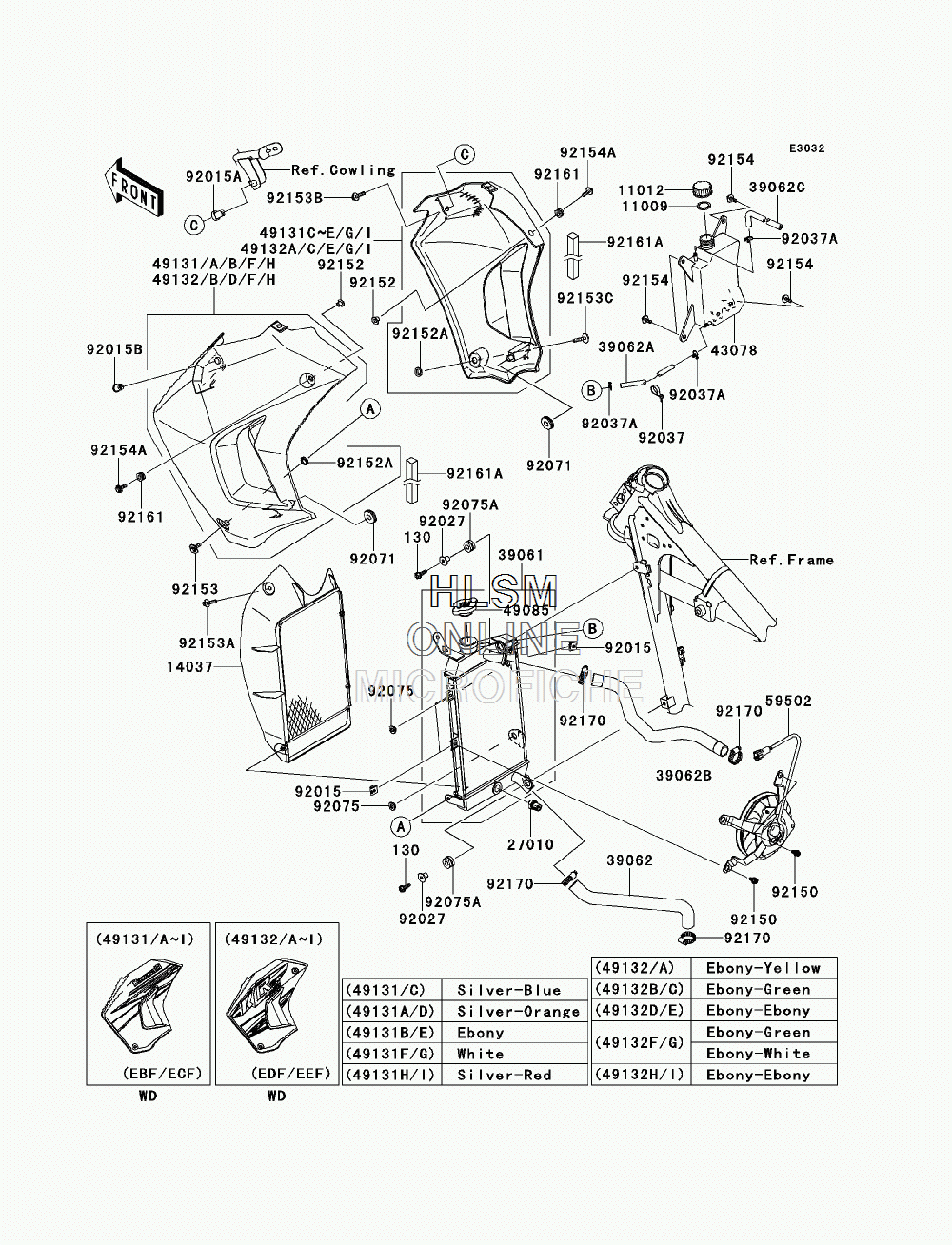

RADIATOR для Kawasaki KLR650 (KL650EDF) - 2013 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1145 GASKET, RESERVOIR TANK CAP
    GASKET, RESERVOIR TANK CAP
  • 11012
    11012-1084 CAP
    CAP
  • 14037
    14037-0056 SCREEN
    SCREEN
  • 27010
    27010-1443 SWITCH
    SWITCH
  • 39061
    39061-0098 RADIATOR-ASSY
    RADIATOR-ASSY
  • 39062
    39062-0149 HOSE-COOLING, W/P-RAD.
    HOSE-COOLING, W/P-RAD.
  • 39062A
    39062-0340 HOSE-COOLING, RESERVOIR-CAP
    HOSE-COOLING, RESERVOIR-CAP
  • 39062B
    39062-0341 HOSE-COOLING, HEAD-RAD.
    HOSE-COOLING, HEAD-RAD.
  • 39062C
    39062-1220 HOSE-COOLING, RESERVOIR
    HOSE-COOLING, RESERVOIR
  • 43078
    43078-0072 RESERVOIR
    RESERVOIR
  • 49085
    49085-1070 CAP-ASSY-PRESSURE, P1.1
    CAP-ASSY-PRESSURE, P1.1
  • 49132
    49132-5036-H8 SHROUD-ENGINE, LEFT HAND, (EBONY) (FOR 15G)
    SHROUD-ENGINE, LEFT HAND, (EBONY) (FOR 15G)
  • 49132A
    49132-5037-H8 SHROUD-ENGINE, RIGHT HAND, (EBONY) (FOR 15G)
    SHROUD-ENGINE, RIGHT HAND, (EBONY) (FOR 15G)
  • 49132B
    49132-5038-H8 SHROUD-ENGINE, LEFT HAND, (EBONY) (FOR 35P)
    SHROUD-ENGINE, LEFT HAND, (EBONY) (FOR 35P)
  • 49132C
    49132-5039-H8 SHROUD-ENGINE, RIGHT HAND, (EBONY) (FOR 35P)
    SHROUD-ENGINE, RIGHT HAND, (EBONY) (FOR 35P)
  • 49132D
    49132-5040-H8 SHROUD-ENGINE, LEFT HAND, (EBONY) (USA ONLY) (FOR H8)
    SHROUD-ENGINE, LEFT HAND, (EBONY) (USA ONLY) (FOR H8)
  • 49132E
    49132-5041-H8 SHROUD-ENGINE, RIGHT HAND, (EBONY) (USA ONLY) (FOR H8)
    SHROUD-ENGINE, RIGHT HAND, (EBONY) (USA ONLY) (FOR H8)
  • 130
    130BA0620 BOLT-FLANGED, 6X20
    BOLT-FLANGED, 6X20
  • 59502
    59502-0583 FAN-ASSY
    FAN-ASSY
  • 92015
    92015-1487 NUT
    NUT
  • 92015A
    92015-1692 NUT, RUBBER, 6MM
    NUT, RUBBER, 6MM
  • 92015B
    92015-1700 NUT
    NUT
  • 92027
    92027-1183 COLLAR
    COLLAR
  • 92037
    92037-1163 CLAMP, SPEED, L=58
    CLAMP, SPEED, L=58
  • 92037A
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92071
    92071-1043 GROMMET
    GROMMET
  • 92075
    92075-1138 DAMPER, 8MM
    DAMPER, 8MM
  • 92075A
    92075-209 DAMPER
    DAMPER
  • 92150
    92150-1186 BOLT, 6X12
    BOLT, 6X12
  • 92152
    92152-0237 COLLAR, 6.3X8.3X9.2
    COLLAR, 6.3X8.3X9.2
  • 92152A
    92152-1235 COLLAR
    COLLAR
  • 92153
    92153-0864 BOLT, 6X20
    BOLT, 6X20
  • 92153A
    92153-1008 BOLT, FLANGED WP, 6X25
    BOLT, FLANGED WP, 6X25
  • 92153B
    92153-1457 BOLT, FLANGED, 6X30
    BOLT, FLANGED, 6X30
  • 92153C
    92153-1895 BOLT, 6X30
    BOLT, 6X30
  • 92154
    92154-0391 BOLT, 6X16
    BOLT, 6X16
  • 92154A
    92154-0392 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 92161
    92161-0056 DAMPER
    DAMPER
  • 92161A
    92161-0509 DAMPER
    DAMPER
  • 92170
    92170-1033 CLAMP, COOLING HOSE
    CLAMP, COOLING HOSE
