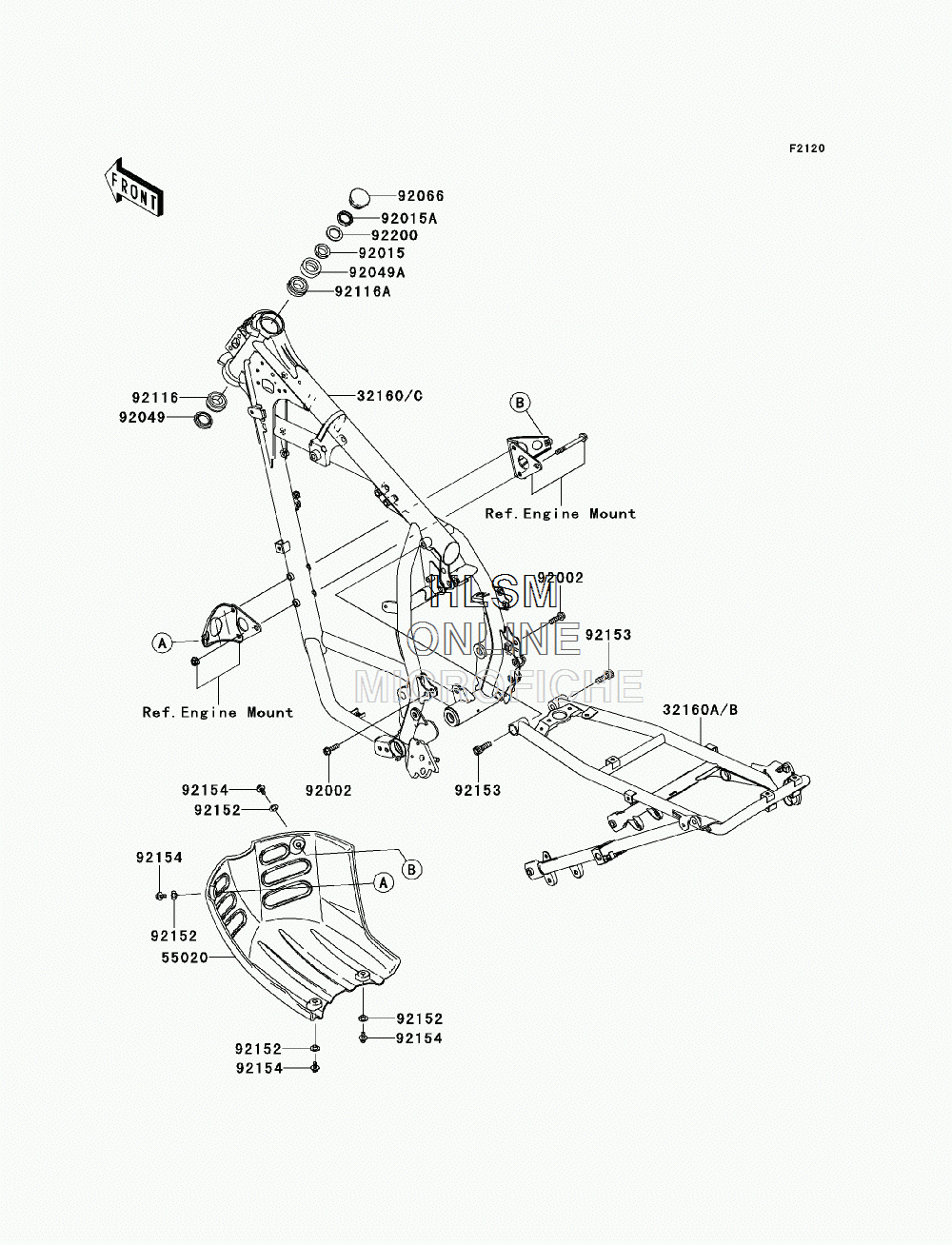

FRAME для Kawasaki KLR650 (KL650EDF) - 2013 года выпуска

  • №
    Артикул
    Название
  • 32160
    32160-0495-18R FRAME-COMP, MAIN, (F.S.BLACK) (EXCEPT CALIF.)
    FRAME-COMP, MAIN, (F.S.BLACK) (EXCEPT CALIF.)
  • 32160A
    32160-0496-18R FRAME-COMP, REAR, (F.S.BLACK) (EXCEPT CALIF.)
    FRAME-COMP, REAR, (F.S.BLACK) (EXCEPT CALIF.)
  • 32160B
    32160-0497-18R FRAME-COMP, REAR, (F.S.BLACK) (CALIF. ONLY)
    FRAME-COMP, REAR, (F.S.BLACK) (CALIF. ONLY)
  • 32160C
    32160-0499-18R FRAME-COMP, MAIN, (F.S.BLACK) (CALIF. ONLY)
    FRAME-COMP, MAIN, (F.S.BLACK) (CALIF. ONLY)
  • 55020
    55020-0235-6Z GUARD, ENGINE, (F.BLACK)
    GUARD, ENGINE, (F.BLACK)
  • 92002
    92002-1971 BOLT, FLANGED, 8X28
    BOLT, FLANGED, 8X28
  • 92015
    92015-1546 NUT, 25MM, T=12
    NUT, 25MM, T=12
  • 92015A
    92015-1653 NUT, STEERING STEM, 22MM
    NUT, STEERING STEM, 22MM
  • 92049
    92049-1162 SEAL-OIL, XMHE36X52X4J
    SEAL-OIL, XMHE36X52X4J
  • 92049A
    92049-1214 SEAL-OIL, STEERING STEM
    SEAL-OIL, STEERING STEM
  • 92066
    92066-1306 PLUG
    PLUG
  • 92116
    92116-1009 BEARING-ROLLER, HR320/28XJ
    BEARING-ROLLER, HR320/28XJ
  • 92116A
    92116-1052 BEARING-ROLLER, HICAP 32005JR
    BEARING-ROLLER, HICAP 32005JR
  • 92152
    92152-0427 COLLAR
    COLLAR
  • 92153
    92153-1524 BOLT, SOCKET, 10X30
    BOLT, SOCKET, 10X30
  • 92154
    92154-0391 BOLT, 6X16
    BOLT, 6X16
  • 92200
    92200-0517 WASHER, STEERING STEM
    WASHER, STEERING STEM
