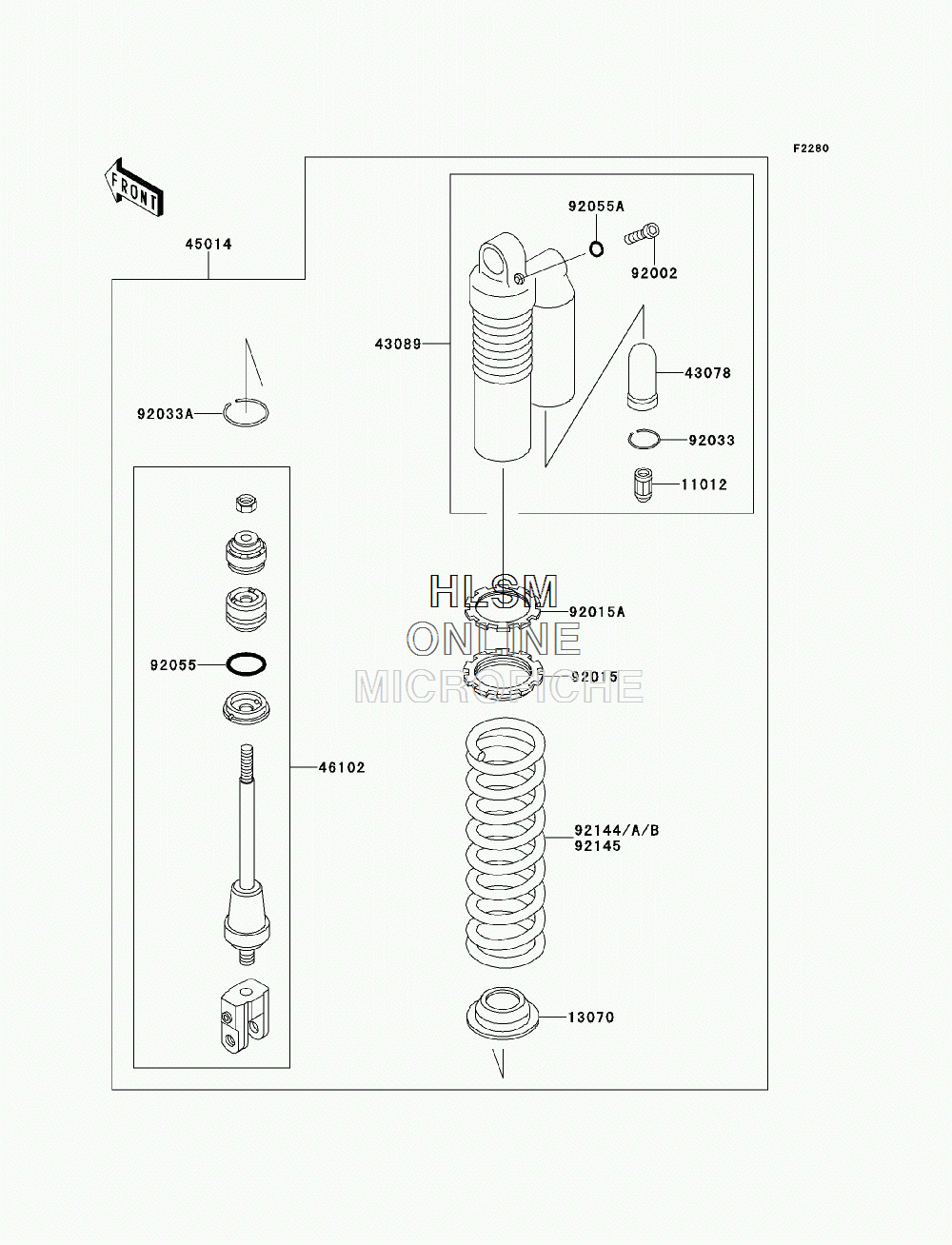

SUSPENSION - SHOCK ABSORBER для Kawasaki KX85 (KX85ACF) - 2012 года выпуска
-
№АртикулНазвание
-
1101211012-1391 CAP, VALVE AIRCAP, VALVE AIR
-
1307013070-1233 GUIDE, SPRINGGUIDE, SPRING
-
4307843078-1112 RESERVOIR, SHOCK ABSORBERRESERVOIR, SHOCK ABSORBER
-
4308943089-0008-829 CYLINDER-SHOCK ABSORBER, (GOLD)CYLINDER-SHOCK ABSORBER, (GOLD)
-
4501445014-5045 SHOCK ABSORBERSHOCK ABSORBER
-
4610246102-1411 ROD, SHOCK ABSORBERROD, SHOCK ABSORBER
-
9200292002-1955 BOLT, DRAINBOLT, DRAIN
-
9201592015-1679 NUT, SPRING ADJUSTNUT, SPRING ADJUST
-
92015A92015-1713 NUT, SPRING ADJUST LOCKNUT, SPRING ADJUST LOCK
-
9203392033-1091 RING-SNAP, REARSHOCKRING-SNAP, REARSHOCK
-
92033A92033-1211 RING-SNAP, SHOCK ABSORBERRING-SNAP, SHOCK ABSORBER
-
9205592055-1334 RING-O, RODRING-O, ROD
-
92055A92055-1383 RING-ORING-O
-
9214492144-1570-17D SPRING, SHOCK, K=45.1N/MM, (BLACK) (OPTION)SPRING, SHOCK, K=45.1N/MM, (BLACK) (OPTION)
-
92144A92144-1571-17D SPRING, SHOCK, K=49.0N/MM, (BLACK) (OPTION)SPRING, SHOCK, K=49.0N/MM, (BLACK) (OPTION)
-
92144B92144-1945-17D SPRING, SHOCK, K=47.0N/MM, (BLACK)SPRING, SHOCK, K=47.0N/MM, (BLACK)
-
9214592145-1371-17D SPRING, SHOCK, K=43.1N/MM, (BLACK) (OPTION)SPRING, SHOCK, K=43.1N/MM, (BLACK) (OPTION)
