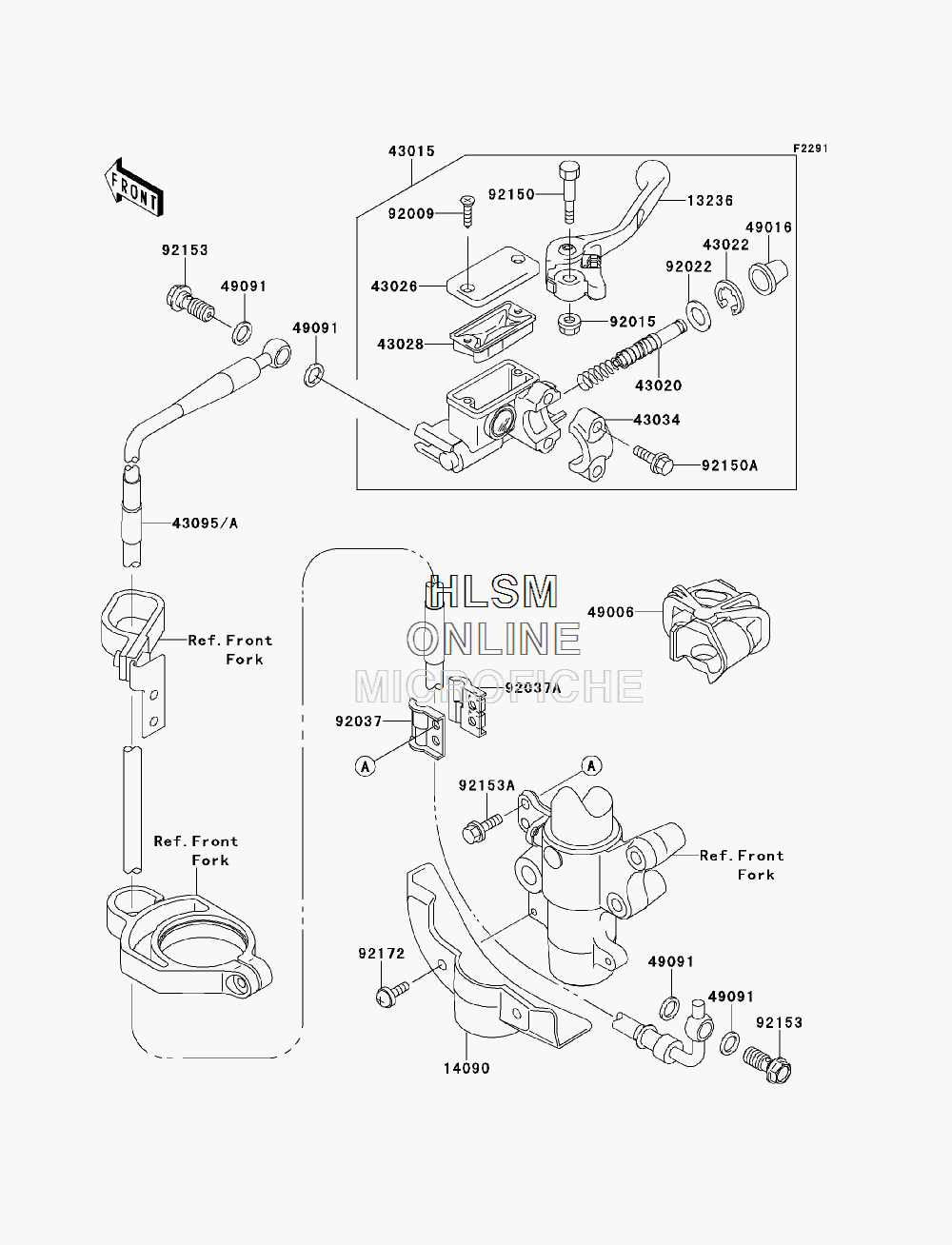

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KX85 (KX85ACF) - 2012 года выпуска`
-
№АртикулНазвание
-
1323613236-1346 LEVER-COMP, FRONT BRAKELEVER-COMP, FRONT BRAKE
-
1409014090-1860-6D COVER, BRAKE HOSE, BLACKCOVER, BRAKE HOSE, BLACK
-
4301543015-0145 CYLINDER-ASSY-MASTER, FRONTCYLINDER-ASSY-MASTER, FRONT
-
4302043020-1123 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-0020 CAP-BRAKE, MASTER CYLINDERCAP-BRAKE, MASTER CYLINDER
-
4302843028-1067 DIAPHRAGMDIAPHRAGM
-
4303443034-1110 HOLDER-BRAKEHOLDER-BRAKE
-
4309543095-0667 HOSE-BRAKE, FRONTHOSE-BRAKE, FRONT
-
4900649006-0078 BOOT, FRONT BRAKE LEVERBOOT, FRONT BRAKE LEVER
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1528 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1814 WASHERWASHER
-
9203792037-1362 CLAMP, BRAKE HOSE, OUTSIDECLAMP, BRAKE HOSE, OUTSIDE
-
92037A92037-1363 CLAMP, BRAKE HOSE, INSIDECLAMP, BRAKE HOSE, INSIDE
-
9215092150-1451 BOLT, LEVER SETBOLT, LEVER SET
-
92150A92150-1452 BOLTBOLT
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
92153A92153-0695 BOLT, 6X16BOLT, 6X16
-
9217292172-0401 SCREW, 6X14SCREW, 6X14
