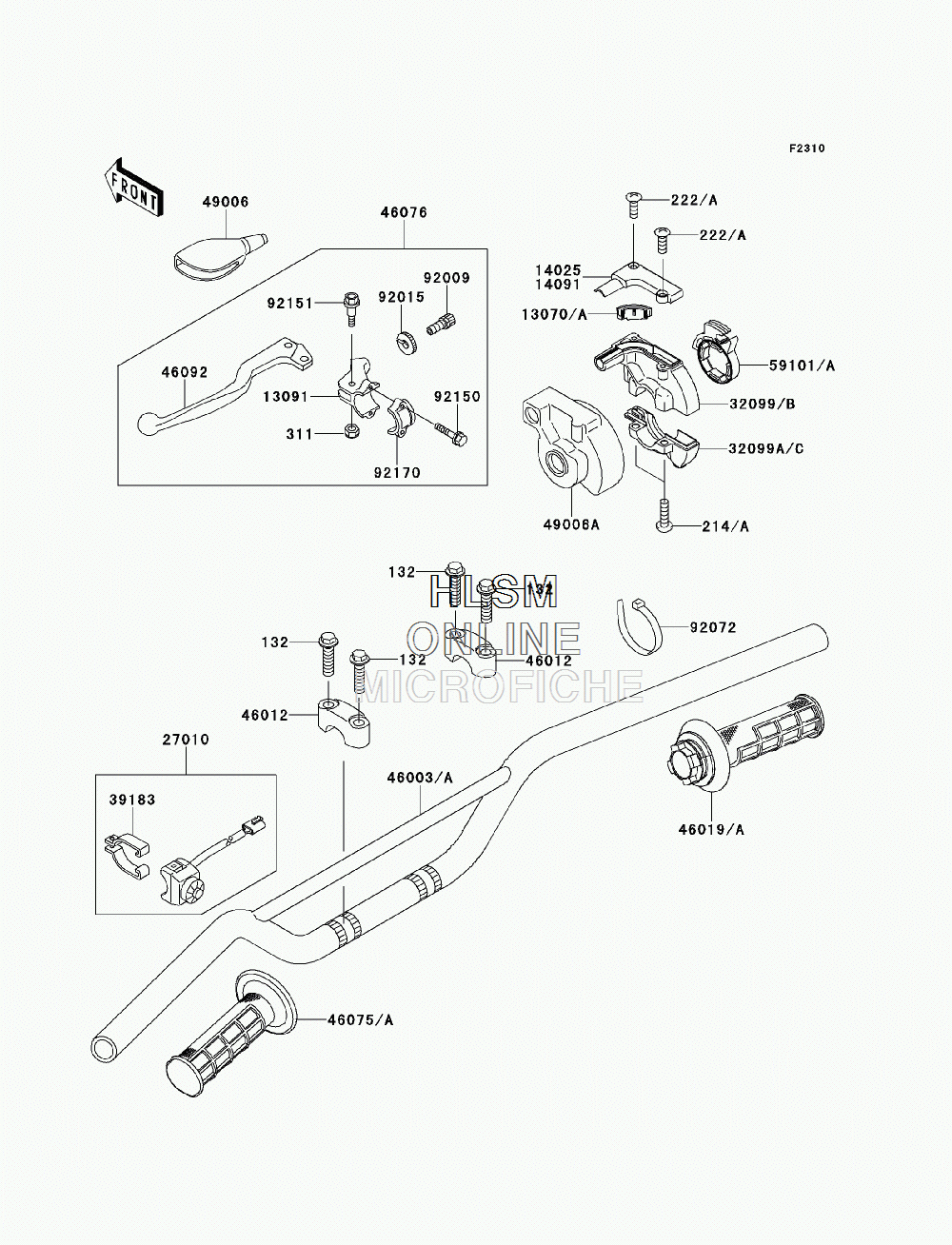

HANDLEBAR для Kawasaki KX85 (KX85ACF) - 2012 года выпуска

  • №
    Артикул
    Название
  • 132
    132BC0830 BOLT-FLANGED-SMALL, 8X30
    BOLT-FLANGED-SMALL, 8X30
  • 214
    214AB0518 SCREW-PAN+-, 5X18
    SCREW-PAN+-, 5X18
  • 222
    222AB0412 SCREW-CSK-RD-CROS, 4X12
    SCREW-CSK-RD-CROS, 4X12
  • 311
    311AA0500 NUT-HEX
    NUT-HEX
  • 13070
    13070-0083 GUIDE, THROTTLE
    GUIDE, THROTTLE
  • 13091
    13091-1728 HOLDER, CLUTCH LEVER
    HOLDER, CLUTCH LEVER
  • 14091
    14091-0873 COVER, THROTTLE CASE
    COVER, THROTTLE CASE
  • 27010
    27010-0035 SWITCH, ENGINE STOP
    SWITCH, ENGINE STOP
  • 32099
    32099-0037 CASE, THROTTLE, UPP
    CASE, THROTTLE, UPP
  • 32099A
    32099-0038 CASE, THROTTLE, LWR
    CASE, THROTTLE, LWR
  • 39183
    39183-1059 BAND-ASSY, ENGINE STOP SWITCH
    BAND-ASSY, ENGINE STOP SWITCH
  • 46003
    46003-0027-18R HANDLE, F.S.BLACK
    HANDLE, F.S.BLACK
  • 46012
    46012-0011-21 HOLDER-HANDLE, UPP, (F.BLACK)
    HOLDER-HANDLE, UPP, (F.BLACK)
  • 46019
    46019-0023 GRIP-ASSY, THROTTLE
    GRIP-ASSY, THROTTLE
  • 46075
    46075-0072 GRIP, LEFT HAND
    GRIP, LEFT HAND
  • 46076
    46076-1203 LEVER-ASSY-GRIP, CLUTCH
    LEVER-ASSY-GRIP, CLUTCH
  • 46092
    46092-1165 LEVER-GRIP, CLUTCH
    LEVER-GRIP, CLUTCH
  • 49006
    49006-1017 BOOT, LEVER HOLDER
    BOOT, LEVER HOLDER
  • 49006A
    49006-1097 BOOT, THROTTLE CASE
    BOOT, THROTTLE CASE
  • 59101
    59101-0003 REEL, THROTTLE
    REEL, THROTTLE
  • 92009
    92009-1476 SCREW, CABLE ADJUST, 8MM
    SCREW, CABLE ADJUST, 8MM
  • 92015
    92015-1596 NUT, CABLE ADJUST LOCK, 8MM
    NUT, CABLE ADJUST LOCK, 8MM
  • 92072
    92072-0055 BAND, L=100
    BAND, L=100
  • 92150
    92150-1474 BOLT
    BOLT
  • 92151
    92151-1103 BOLT, LEVER SET, 5MM
    BOLT, LEVER SET, 5MM
  • 92170
    92170-1226 CLAMP, LEVER HOLDER
    CLAMP, LEVER HOLDER
