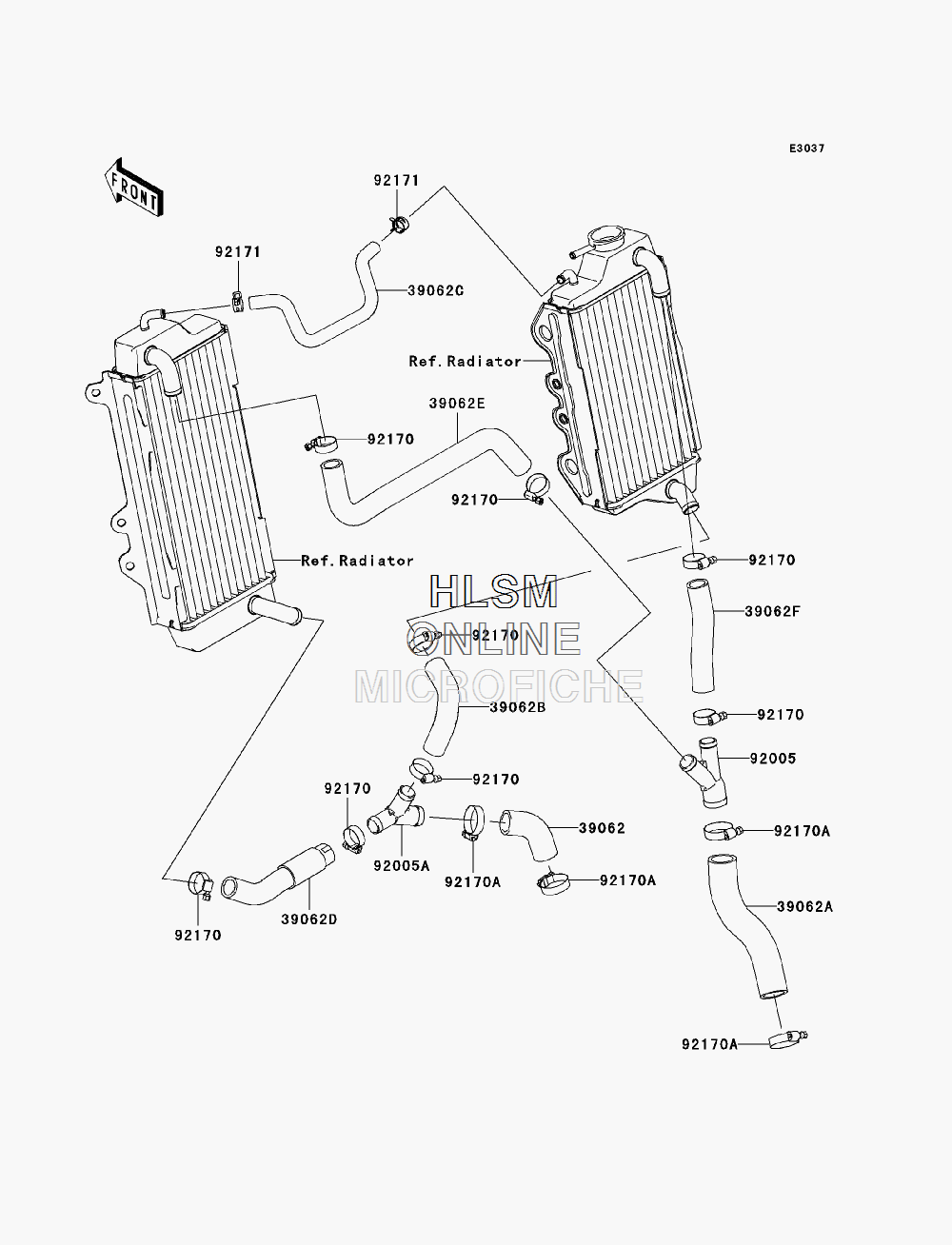

WATER PIPE для Kawasaki KX450F (KX450EBF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 39062
    39062-0088 HOSE-COOLING, W/P-FIT.
    HOSE-COOLING, W/P-FIT.
  • 39062A
    39062-0252 HOSE-COOLING, HEAD-3WAY FIT.
    HOSE-COOLING, HEAD-3WAY FIT.
  • 39062B
    39062-0301 HOSE-COOLING, RAD.RIGHT HAND LOW-FIT.
    HOSE-COOLING, RAD.RIGHT HAND LOW-FIT.
  • 39062C
    39062-0302 HOSE-COOLING, RAD.LEFT HAND-RAD.RIGHT HAND
    HOSE-COOLING, RAD.LEFT HAND-RAD.RIGHT HAND
  • 39062D
    39062-0303 HOSE-COOLING, RAD.LEFT HAND LOW-FIT.
    HOSE-COOLING, RAD.LEFT HAND LOW-FIT.
  • 39062E
    39062-0304 HOSE-COOLING, FIT.-RAD.LEFT HAND UPP
    HOSE-COOLING, FIT.-RAD.LEFT HAND UPP
  • 39062F
    39062-0305 HOSE-COOLING, FIT.-RAD.RIGHT HAND UPP
    HOSE-COOLING, FIT.-RAD.RIGHT HAND UPP
  • 92005
    92005-0066 FITTING, 3WAY, HEAD-RAD
    FITTING, 3WAY, HEAD-RAD
  • 92005A
    92005-0067 FITTING, 3WAY, RAD-W/P
    FITTING, 3WAY, RAD-W/P
  • 92170
    92170-1077 CLAMP, HOSE, 26MM
    CLAMP, HOSE, 26MM
  • 92170A
    92170-1286 CLAMP, HOSE, 32MM
    CLAMP, HOSE, 32MM
  • 92171
    92171-0372 CLAMP, CLIP, 12.5MM
    CLAMP, CLIP, 12.5MM
