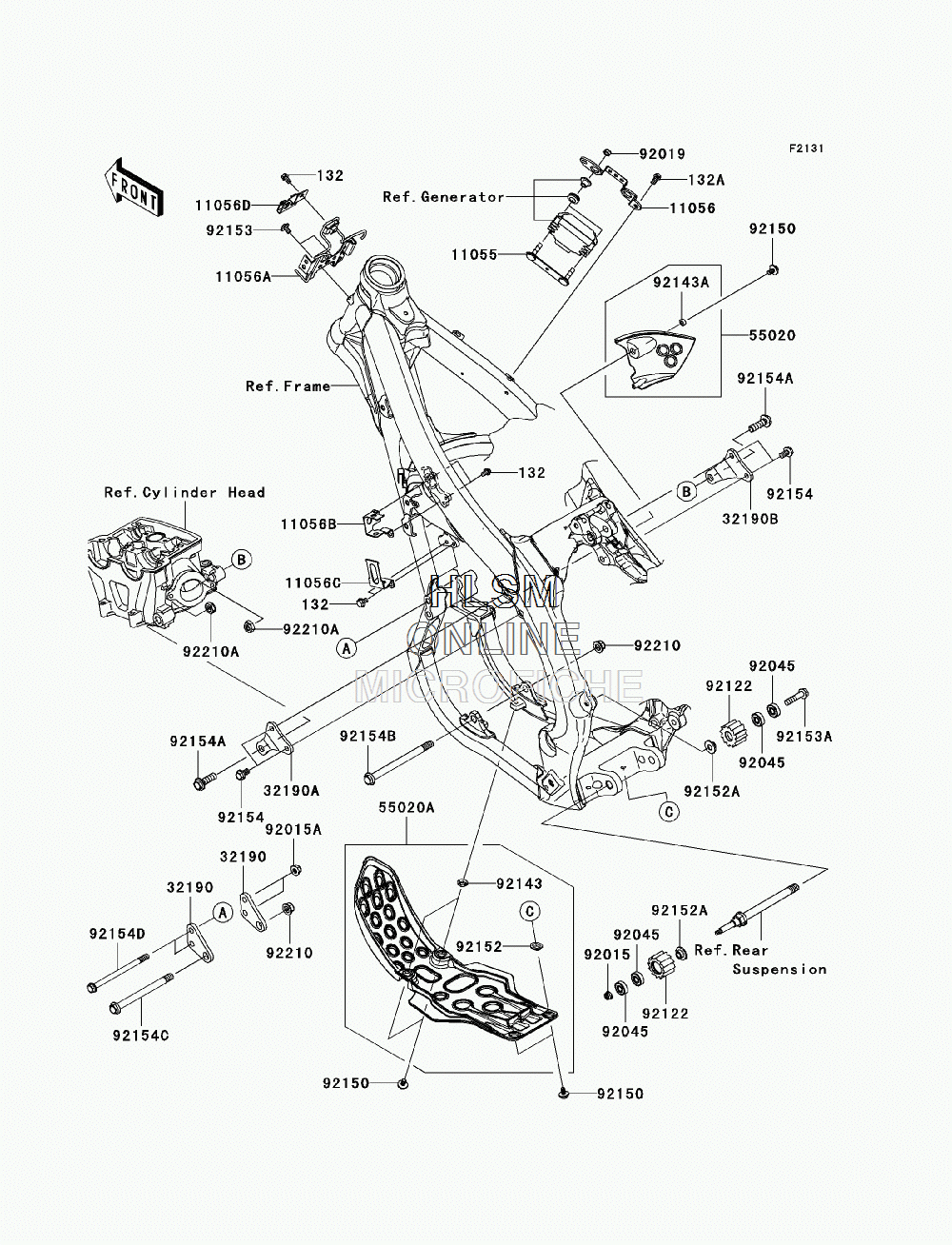

FRAME FITTING(S) для Kawasaki KX450F (KX450EBF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0610 BOLT-FLANGED-SMALL, 6X10
    BOLT-FLANGED-SMALL, 6X10
  • 132A
    132BC0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 11055
    11055-0870 BRACKET, REGULATOR (LOWER)
    BRACKET, REGULATOR (LOWER)
  • 11056
    11056-0068 BRACKET, REGULATOR (UPPER)
    BRACKET, REGULATOR (UPPER)
  • 11056A
    11056-0069 BRACKET, ECU
    BRACKET, ECU
  • 11056B
    11056-0071 BRACKET, BANK SENSOR
    BRACKET, BANK SENSOR
  • 11056C
    11056-0072 BRACKET, CONDENSER
    BRACKET, CONDENSER
  • 11056D
    11056-0505 BRACKET, DIAG CONNECTOR
    BRACKET, DIAG CONNECTOR
  • 32190
    32190-0386 BRACKET-ENGINE, FRONT
    BRACKET-ENGINE, FRONT
  • 32190A
    32190-0463 BRACKET-ENGINE (UPPER) (LEFT)
    BRACKET-ENGINE (UPPER) (LEFT)
  • 32190B
    32190-0464 BRACKET-ENGINE (UPPER) (RIGHT)
    BRACKET-ENGINE (UPPER) (RIGHT)
  • 55020
    55020-0434-6C GUARD, ENGINE, SIDE (RIGHT) (EBONY) (FOR 777)
    GUARD, ENGINE, SIDE (RIGHT) (EBONY) (FOR 777)
  • 55020A
    55020-0440-6C GUARD, ENGINE (LOWER) (EBONY) (FOR 777)
    GUARD, ENGINE (LOWER) (EBONY) (FOR 777)
  • 92015
    92015-1339 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92015A
    92015-1432 NUT, 8MM
    NUT, 8MM
  • 92019
    92019-008 NUT, LOCK, 6MM
    NUT, LOCK, 6MM
  • 92045
    92045-0060 BEARING-BALL, 608LLU/2A
    BEARING-BALL, 608LLU/2A
  • 92122
    92122-0016 ROLLER, CHAIN GUIDE
    ROLLER, CHAIN GUIDE
  • 92143
    92143-1196 COLLAR
    COLLAR
  • 92143A
    92143-1307 COLLAR
    COLLAR
  • 92150
    92150-1435 BOLT, 6X12
    BOLT, 6X12
  • 92152
    92152-0052 COLLAR
    COLLAR
  • 92152A
    92152-0459 COLLAR
    COLLAR
  • 92153
    92153-1628 BOLT, SOCKET, 6X10
    BOLT, SOCKET, 6X10
  • 92153A
    92153-1652 BOLT, FLANGED, 8X35
    BOLT, FLANGED, 8X35
  • 92154
    92154-0380 BOLT, FLANGED, 8X14
    BOLT, FLANGED, 8X14
  • 92154A
    92154-0381 BOLT, FLANGED, 10X32
    BOLT, FLANGED, 10X32
  • 92154B
    92154-0522 BOLT, FLANGED, 10X137
    BOLT, FLANGED, 10X137
  • 92154C
    92154-0173 BOLT, FLANGED, 10X124
    BOLT, FLANGED, 10X124
  • 92154D
    92154-0174 BOLT, FLANGED, 8X122
    BOLT, FLANGED, 8X122
  • 92210
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92210A
    92210-1184 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
