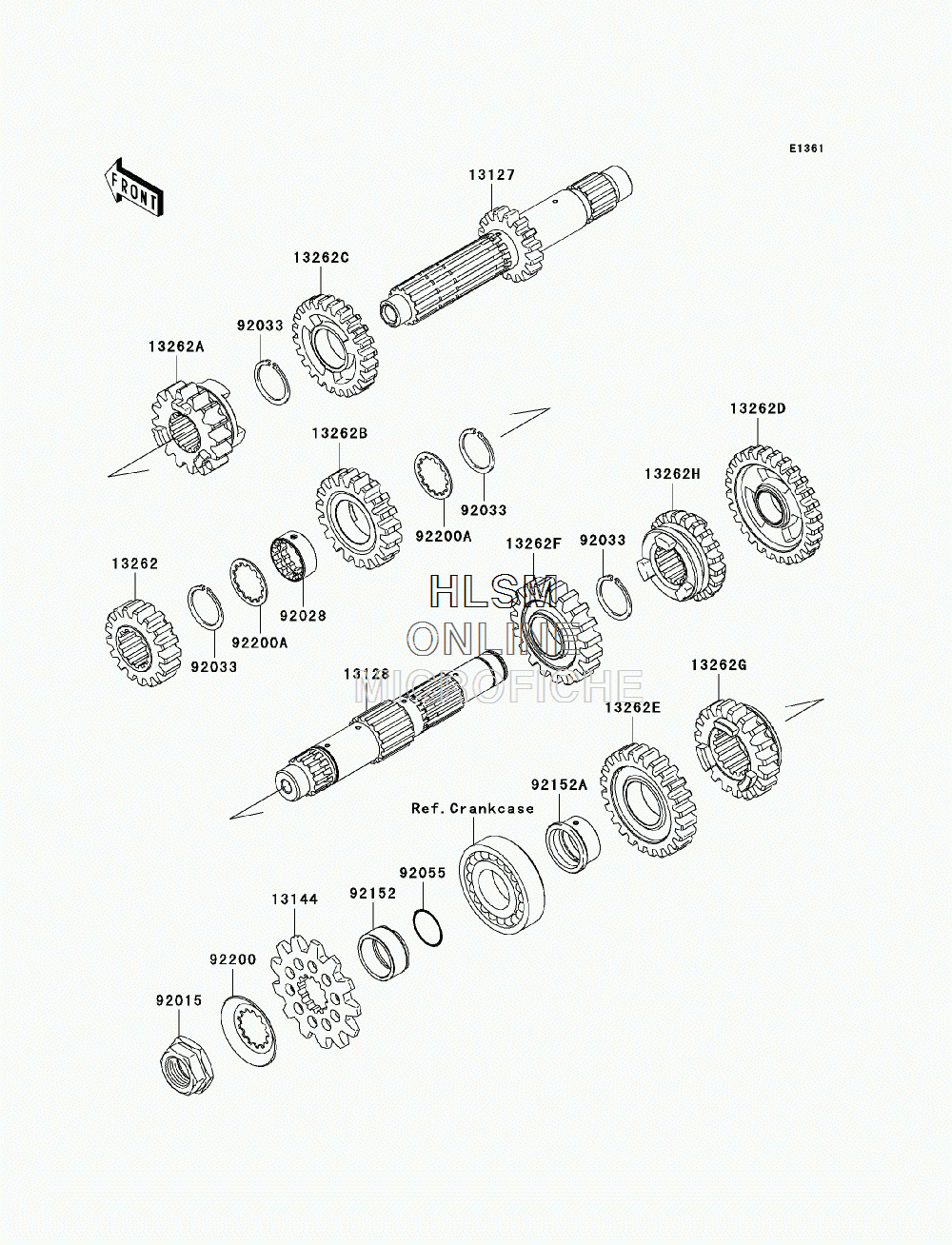

TRANSMISSION для Kawasaki KX450F (KX450EBF) - 2011 года выпуска

  • №
    Артикул
    Название
  • 13127
    13127-0046 SHAFT-TRANSMISSION INPUT, 16T
    SHAFT-TRANSMISSION INPUT, 16T
  • 13128
    13128-0033 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13144
    13144-0063 SPROCKET-OUTPUT, 13T
    SPROCKET-OUTPUT, 13T
  • 13262
    13262-0390 GEAR, INPUT 2ND, 17T
    GEAR, INPUT 2ND, 17T
  • 13262A
    13262-0391 GEAR, INPUT 3RD, 16T
    GEAR, INPUT 3RD, 16T
  • 13262B
    13262-0392 GEAR, INPUT 4TH, 19T
    GEAR, INPUT 4TH, 19T
  • 13262C
    13262-0393 GEAR, INPUT 5TH, 24T
    GEAR, INPUT 5TH, 24T
  • 13262D
    13262-0394 GEAR, OUTPUT LOW, 28T
    GEAR, OUTPUT LOW, 28T
  • 13262E
    13262-0395 GEAR, OUTPUT 2ND, 24T
    GEAR, OUTPUT 2ND, 24T
  • 13262F
    13262-0396 GEAR, OUTPUT 3RD, 19T
    GEAR, OUTPUT 3RD, 19T
  • 13262G
    13262-0397 GEAR, OUTPUT 4TH, 19T
    GEAR, OUTPUT 4TH, 19T
  • 13262H
    13262-0398 GEAR, OUTPUT 5TH, 21T
    GEAR, OUTPUT 5TH, 21T
  • 92015
    92015-1963 NUT, 20MM
    NUT, 20MM
  • 92028
    92028-1857 BUSHING, INPUT TOP GEAR
    BUSHING, INPUT TOP GEAR
  • 92033
    92033-1172 RING-SNAP, 25MM
    RING-SNAP, 25MM
  • 92055
    92055-1293 O-RING, 21.5X1.5
    O-RING, 21.5X1.5
  • 92152
    92152-0150 COLLAR, 25X30X13.2
    COLLAR, 25X30X13.2
  • 92152A
    92152-0540 COLLAR
    COLLAR
  • 92200
    92200-0390 WASHER
    WASHER
  • 92200A
    92200-1389 WASHER
    WASHER
