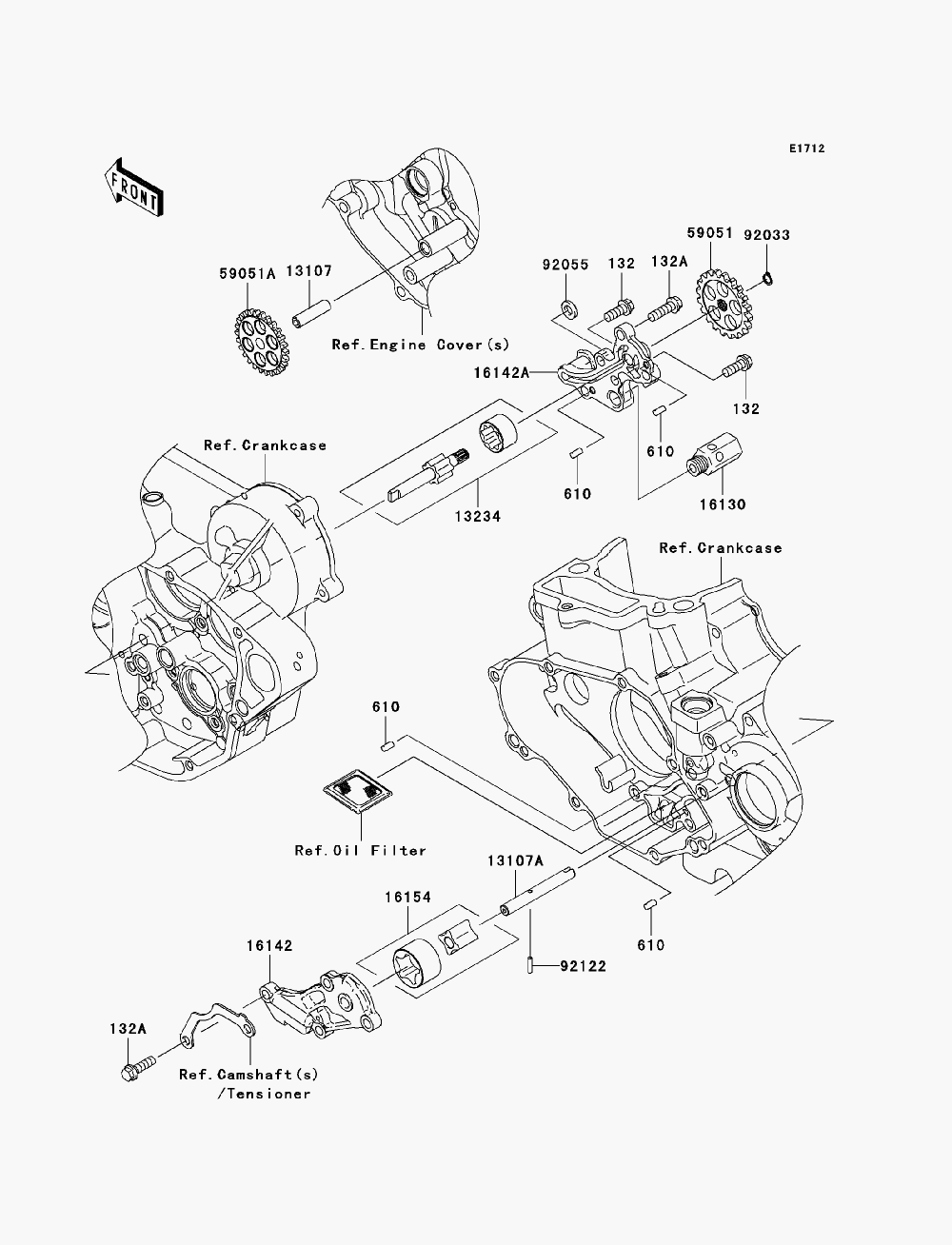

OIL PUMP для Kawasaki KX450F (KX450D8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0616 BOLT-FLANGED-SMALL,6X16
    BOLT-FLANGED-SMALL,6X16
  • 132A
    132G0620 BOLT-FLANGED-SMALL,6X20
    BOLT-FLANGED-SMALL,6X20
  • 610
    610A0408 ROLLER,4X8
    ROLLER,4X8
  • 13107
    13107-0056 SHAFT
    SHAFT
  • 13107A
    13107-0134 SHAFT,OIL PUMP,SCAVENGE
    SHAFT,OIL PUMP,SCAVENGE
  • 13234
    13234-0036 SHAFT-COMP,FEED
    SHAFT-COMP,FEED
  • 16130
    16130-1058 VALVE-ASSY-RELIEF
    VALVE-ASSY-RELIEF
  • 16142
    16142-0042 COVER-PUMP,OIL, LEFT HAND
    COVER-PUMP,OIL, LEFT HAND
  • 16142A
    16142-0049 COVER-PUMP,OIL, RIGHT HAND
    COVER-PUMP,OIL, RIGHT HAND
  • 16154
    16154-0069 ROTOR-PUMP,SCAVENGE
    ROTOR-PUMP,SCAVENGE
  • 59051
    59051-0044 GEAR-SPUR,O/P DRIVEN,28T
    GEAR-SPUR,O/P DRIVEN,28T
  • 59051A
    59051-0045 GEAR-SPUR,O/P IDLER,26T
    GEAR-SPUR,O/P IDLER,26T
  • 92033
    92033-0019 RING-SNAP
    RING-SNAP
  • 92055
    92055-074 RING-O,OD=13
    RING-O,OD=13
  • 92122
    92122-0021 ROLLER,2.5X11.8
    ROLLER,2.5X11.8
