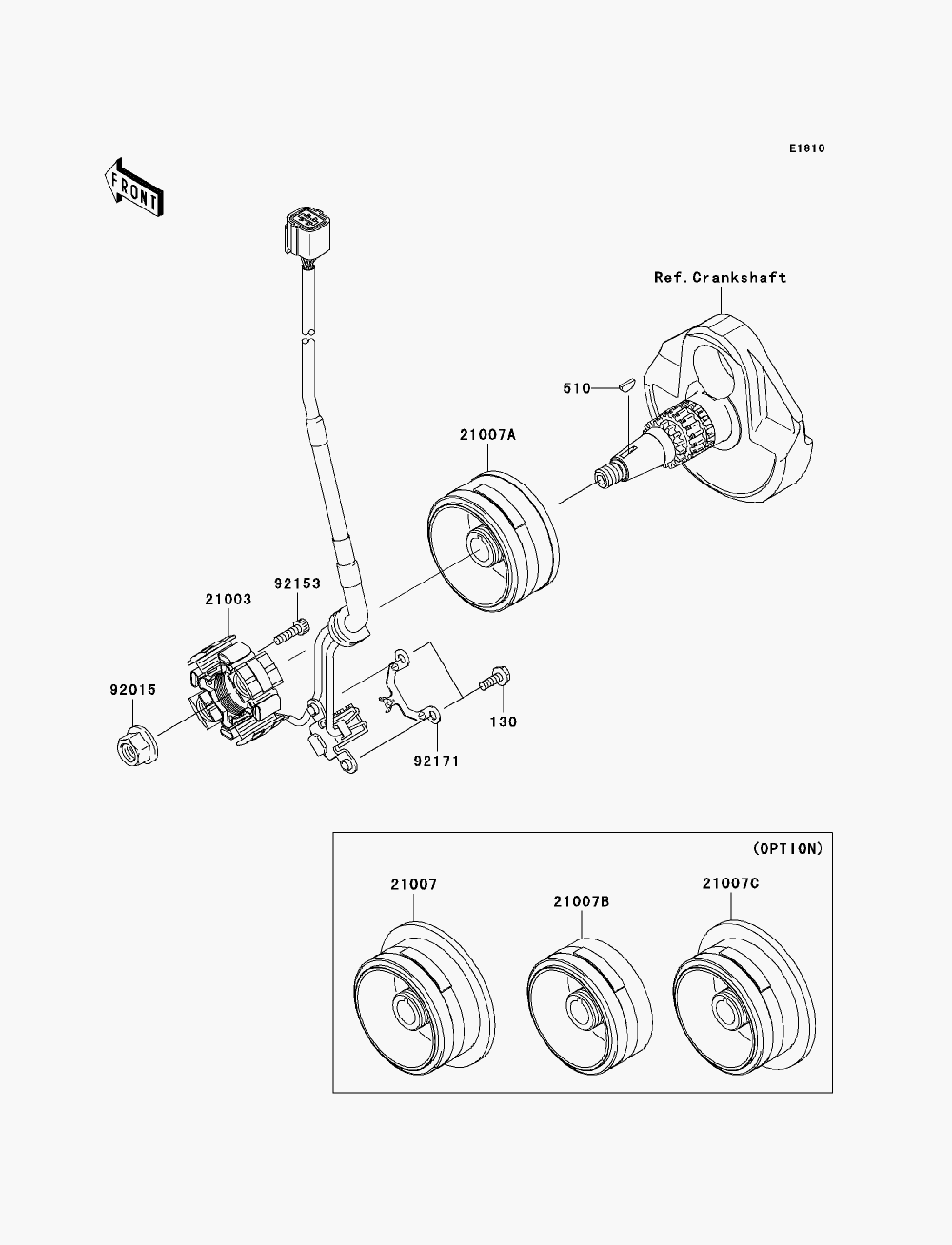

GENERATOR для Kawasaki KX450F (KX450D8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130G0514 BOLT-FLANGED,5X14BOLT-FLANGED,5X14
-
510510A3200 KEY-WOODRUFFKEY-WOODRUFF
-
2100321003-0075 STATORSTATOR
-
2100721007-0077 ROTOR,I=5.6 (OPTION)ROTOR,I=5.6 (OPTION)
-
21007A21007-0080 ROTOR,I=4.5ROTOR,I=4.5
-
21007B21007-0096 ROTOR,I=3.8 (OPTION)ROTOR,I=3.8 (OPTION)
-
21007C21007-0112 ROTOR,I=6.2 (OPTION)ROTOR,I=6.2 (OPTION)
-
9201592015-1156 NUT,FLANGED,12MMNUT,FLANGED,12MM
-
9215392153-0645 BOLT,4X18BOLT,4X18
-
9217192171-0258 CLAMPCLAMP
