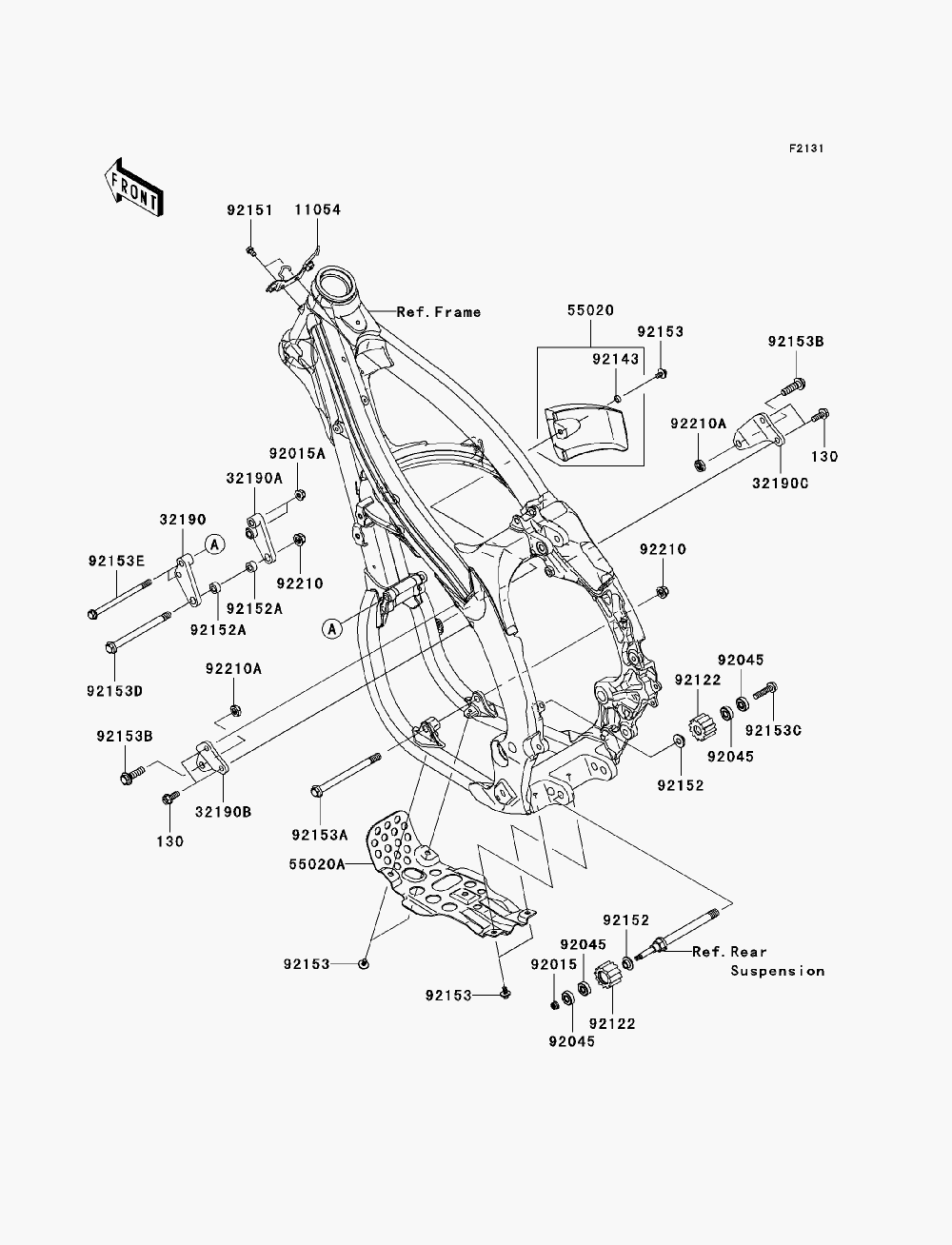

FRAME FITTING(S) для Kawasaki KX450F (KX450D8F) - 2008 года выпуска

  • №
    Артикул
    Название
  • 130
    130P0820 BOLT-FLANGED,8X20
    BOLT-FLANGED,8X20
  • 11054
    11054-0300 BRACKET,IGNITER
    BRACKET,IGNITER
  • 32190
    32190-0330 BRACKET-ENGINE, FRONT
    BRACKET-ENGINE, FRONT
  • 32190A
    32190-0331 BRACKET-ENGINE, FRONT
    BRACKET-ENGINE, FRONT
  • 32190B
    32190-0351 BRACKET-ENGINE,UPP, LEFT HAND
    BRACKET-ENGINE,UPP, LEFT HAND
  • 32190C
    32190-0352 BRACKET-ENGINE,UPP, RIGHT HAND
    BRACKET-ENGINE,UPP, RIGHT HAND
  • 55020
    55020-0179-RZ GUARD,ENGINE, RIGHT HAND,WHITE (FOR 777)
    GUARD,ENGINE, RIGHT HAND,WHITE (FOR 777)
  • 55020A
    55020-0369 GUARD,SKID
    GUARD,SKID
  • 92015
    92015-1339 NUT,LOCK,FLANGED,6MM
    NUT,LOCK,FLANGED,6MM
  • 92015A
    92015-1432 NUT,8MM
    NUT,8MM
  • 92045
    92045-0060 BEARING-BALL,608LLU/2A
    BEARING-BALL,608LLU/2A
  • 92122
    92122-0016 ROLLER,CHAIN GUIDE
    ROLLER,CHAIN GUIDE
  • 92143
    92143-1307 COLLAR
    COLLAR
  • 92151
    92151-1233 BOLT,FLANGED,6X10
    BOLT,FLANGED,6X10
  • 92152
    92152-0459 COLLAR
    COLLAR
  • 92152A
    92152-0595 COLLAR,10.2X20X10
    COLLAR,10.2X20X10
  • 92153
    92153-0503 BOLT,6X12
    BOLT,6X12
  • 92153A
    92153-0704 BOLT,FLANGED,10X137
    BOLT,FLANGED,10X137
  • 92153B
    92153-0802 BOLT,FLANGED,10X35
    BOLT,FLANGED,10X35
  • 92153C
    92153-1652 BOLT,FLANGED,8X35
    BOLT,FLANGED,8X35
  • 92153D
    92153-1869 BOLT,FLANGED,10X128
    BOLT,FLANGED,10X128
  • 92153E
    92153-1870 BOLT,FLANGED,8X126
    BOLT,FLANGED,8X126
  • 92210
    92210-1080 NUT,LOCK,FLANGED,10MM
    NUT,LOCK,FLANGED,10MM
  • 92210A
    92210-1184 NUT,LOCK,10MM
    NUT,LOCK,10MM
