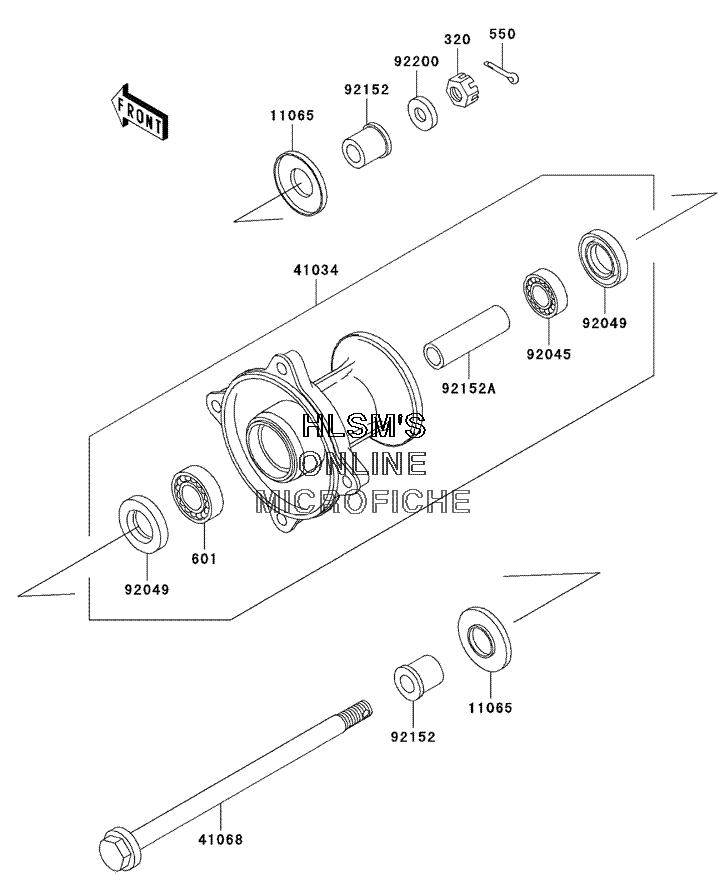

FRONT HUB для Kawasaki KX 65 - 2005 года выпуска

  • №
    Артикул
    Название
  • 320
    320G1200 NUT, CASTLE
    NUT, CASTLE
  • 550
    550D3025 PIN, COTTER, 3.0X25
    PIN, COTTER, 3.0X25
  • 601
    601B6301UU BEARING, BALL, #6201UUC3
    BEARING, BALL, #6201UUC3
  • 11065
    11065-1137 CAP
    CAP
  • 41034
    41034-1302 DRUM, ASSY, FRONT BRAKE
    DRUM, ASSY, FRONT BRAKE
  • 41068
    41068-1418 AXLE, FRONT
    AXLE, FRONT
  • 92045
    92045-1062 BEARING, BALL, TMB201LLUC3/2A
    BEARING, BALL, TMB201LLUC3/2A
  • 92049
    92049-1257 SEAL, OIL, TC20376.5
    SEAL, OIL, TC20376.5
  • 92152
    92152-1196 COLLAR, AXLE, L=15.5
    COLLAR, AXLE, L=15.5
  • 92152A
    92152-1197 COLLAR, FRONT BRAKE DRUM, L=59
    COLLAR, FRONT BRAKE DRUM, L=59
  • 92200
    92200-1004 WASHER, 12.3X23X2.3
    WASHER, 12.3X23X2.3
