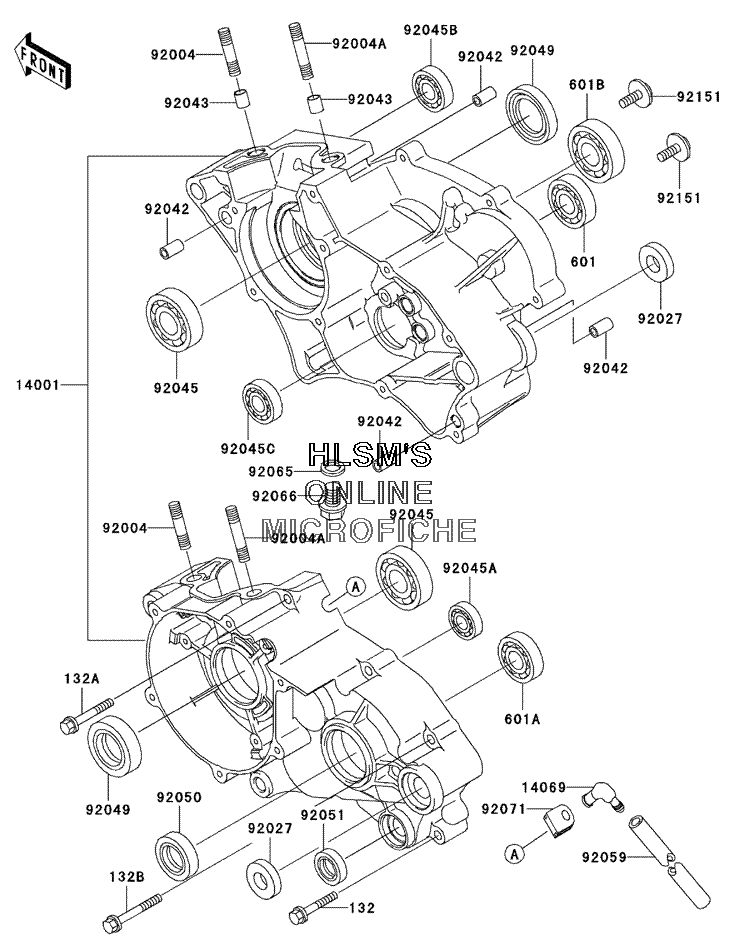

CRANKCASE для Kawasaki KX 65 - 2005 года выпуска`
-
№АртикулНазвание
-
132132G0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0640 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132B132G0655 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
601601A6002 BEARING, BALL, #6002BEARING, BALL, #6002
-
601A601A6004 BEARING, BALL, #6004BEARING, BALL, #6004
-
601B601A6203 BEARING, BALL, #6203BEARING, BALL, #6203
-
1400114001-1318 SET, CRANKCASESET, CRANKCASE
-
1406914069-002 BREATHER, CRANKCASEBREATHER, CRANKCASE
-
9200492004-1245 STUD, 8X28.5STUD, 8X28.5
-
92004A92004-1246 STUD, 8X37STUD, 8X37
-
9202792027-1744 COLLAR, 12.1X26X6COLLAR, 12.1X26X6
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9204592045-1059 BEARING, BALL, R, 6304C3BEARING, BALL, R, 6304C3
-
92045A92045-1235 BEARING, BALL, 6001C3ML01BEARING, BALL, 6001C3ML01
-
92045B92045-1304 BEARING, BALL, 626MC3BEARING, BALL, 626MC3
-
92045C92045-1432 BEARING, BALL, 6805JRZBEARING, BALL, 6805JRZ
-
9204992049-1188 SEAL, OIL, SD20407GSSEAL, OIL, SD20407GS
-
9205092050-013 SEAL, OIL, SC25376SEAL, OIL, SC25376
-
9205192051-005 SEAL, OIL, TB13225.5SEAL, OIL, TB13225.5
-
9205992059-1074 TUBE, 6X9X280TUBE, 6X9X280
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1437 PLUG, DRAINPLUG, DRAIN
-
9207192071-042 GROMMET, BREATHERGROMMET, BREATHER
-
9215192151-1762 BOLT, 6X16BOLT, 6X16
