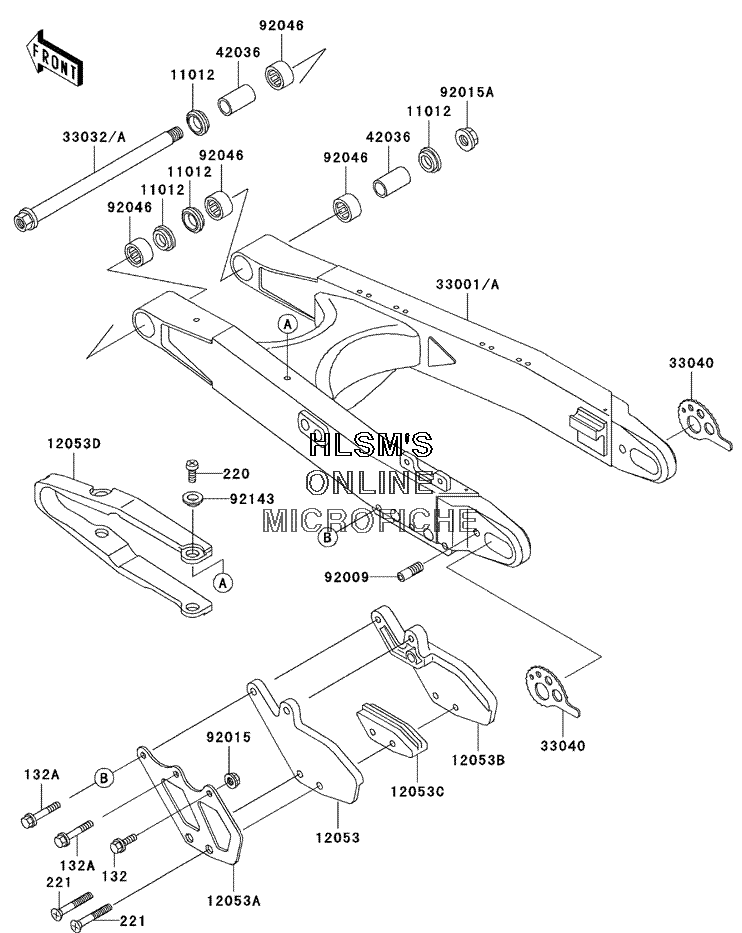

SUSPENSION - SWINGARM для Kawasaki KDX 200 - 2005 года выпуска`
-
№АртикулНазвание
-
132132G0616 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132G0635 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0610 SCREW, PAN, CROS, 6X10SCREW, PAN, CROS, 6X10
-
221221B0645 SCREW, CSK, CROS, 6X45SCREW, CSK, CROS, 6X45
-
1101211012-1259 CAP, SWING ARMCAP, SWING ARM
-
1205312053-1234 GUIDE, CHAIN, REAR, INSIDEGUIDE, CHAIN, REAR, INSIDE
-
12053A12053-1235 GUIDE, CHAIN, REAR, OUTSIDEGUIDE, CHAIN, REAR, OUTSIDE
-
12053B12053-1236 GUIDE, CHAIN, REAR, OUTSIDEGUIDE, CHAIN, REAR, OUTSIDE
-
12053C12053-1270 GUIDE, CHAIN, DRIVE, REAR, INSIDEGUIDE, CHAIN, DRIVE, REAR, INSIDE
-
12053D12053-1328 GUIDE, CHAIN, DRIVE, FRONTGUIDE, CHAIN, DRIVE, FRONT
-
33001A33001-1451-458 ARM, COMP, SWING (P.SILVER)ARM, COMP, SWING (P.SILVER)
-
3303233032-0006 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1113 ADJUSTER, CHAINADJUSTER, CHAIN
-
4203642036-1056 SLEEVE, SWING ARMSLEEVE, SWING ARM
-
9200992009-1686 SCREW, SET, 10X29SCREW, SET, 10X29
-
9201592015-1078 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1407 NUT, 14MMNUT, 14MM
-
9204692046-1118 BEARING, NEEDLE, TA202715ZEBEARING, NEEDLE, TA202715ZE
-
9214392143-1156 COLLARCOLLAR
