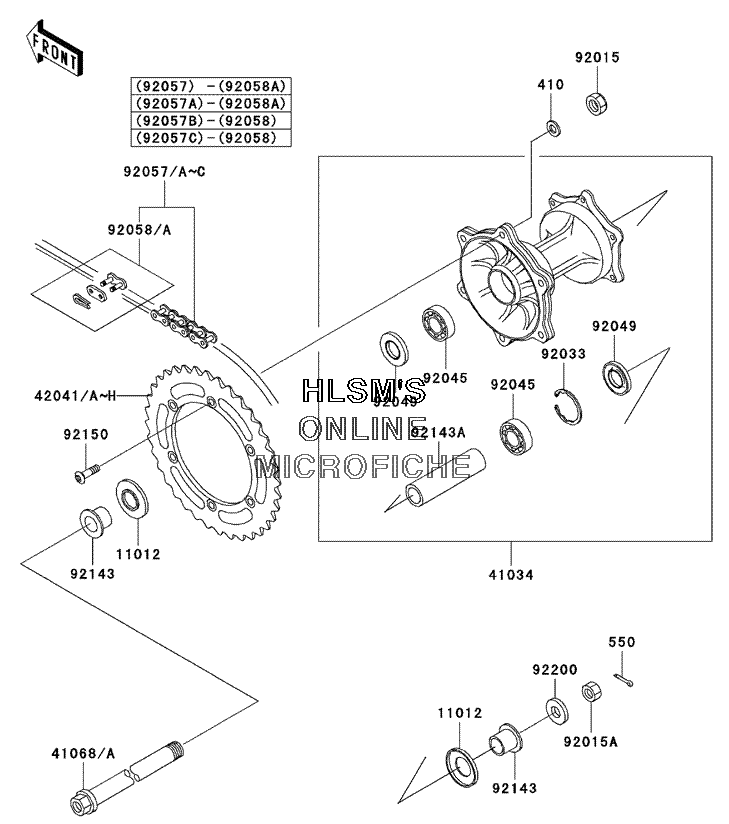

REAR HUB для Kawasaki KDX 200 - 2005 года выпуска`
-
№АртикулНазвание
-
410410B0800 WASHER, PLAIN, SMALL, 8MMWASHER, PLAIN, SMALL, 8MM
-
550550S3025 PIN, COTTER, 3X25PIN, COTTER, 3X25
-
1101211012-1581 CAP, AXLECAP, AXLE
-
4103441034-1216 DRUM, ASSY, REAR BRAKEDRUM, ASSY, REAR BRAKE
-
4106841068-0014 AXLE, REARAXLE, REAR
-
4204142041-1323 SPROCKET, HUB, 44T (OPTION)SPROCKET, HUB, 44T (OPTION)
-
42041A42041-1381 SPROCKET, HUB, 46T (OPTION)SPROCKET, HUB, 46T (OPTION)
-
42041B42041-1382 SPROCKET, HUB, 47TSPROCKET, HUB, 47T
-
42041C42041-1383 SPROCKET, HUB, 48T (OPTION)SPROCKET, HUB, 48T (OPTION)
-
42041D42041-1384 SPROCKET, HUB, 49T (OPTION)SPROCKET, HUB, 49T (OPTION)
-
42041E42041-1408 SPROCKET, HUB, 50T (OPTION)SPROCKET, HUB, 50T (OPTION)
-
42041F42041-1413 SPROCKET, HUB, 45T (OPTION)SPROCKET, HUB, 45T (OPTION)
-
42041G42041-1428 SPROCKET, HUB, 51T (OPTION)SPROCKET, HUB, 51T (OPTION)
-
42041H42041-1436 SPROCKET, HUB, 43T (OPTION)SPROCKET, HUB, 43T (OPTION)
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
92015A92015-1770 NUT, LOCK, 20MMNUT, LOCK, 20MM
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204592045-1239 BEARING, BALL, 6004X8JRLLX2/3ABEARING, BALL, 6004X8JRLLX2/3A
-
9204992049-1203 SEAL, OIL, BJNC2 25425SEAL, OIL, BJNC2 25425
-
9205792057-1388 CHAIN, DRIVE, DID520DS5X110L (OPTION)CHAIN, DRIVE, DID520DS5X110L (OPTION)
-
92057A92057-1396 CHAIN, DRIVE, DID520DS5X108LCHAIN, DRIVE, DID520DS5X108L
-
92057B92057-1400 CHAIN, DRIVE, EK520SR, O2X108L (OPTION)CHAIN, DRIVE, EK520SR, O2X108L (OPTION)
-
92057C92057-1401 CHAIN, DRIVE, EK520SR, O2X110L (OPTION)CHAIN, DRIVE, EK520SR, O2X110L (OPTION)
-
9205892058-1060 JOINT, CHAIN, DRIVE, EK520SR, O2JOINT, CHAIN, DRIVE, EK520SR, O2
-
92058A92058-1071 JOINT, CHAIN, DRIVE, DID520 DS5JOINT, CHAIN, DRIVE, DID520 DS5
-
9214392143-1259 COLLAR, REAR AXLE, L=22COLLAR, REAR AXLE, L=22
-
92143A92143-1402 COLLAR, REAR BRAKE DRUM, L=105COLLAR, REAR BRAKE DRUM, L=105
-
9215092150-1978 BOLT, SOCKET, 8X28BOLT, SOCKET, 8X28
-
9220092200-1146 WASHER, 20.2X36X2WASHER, 20.2X36X2
