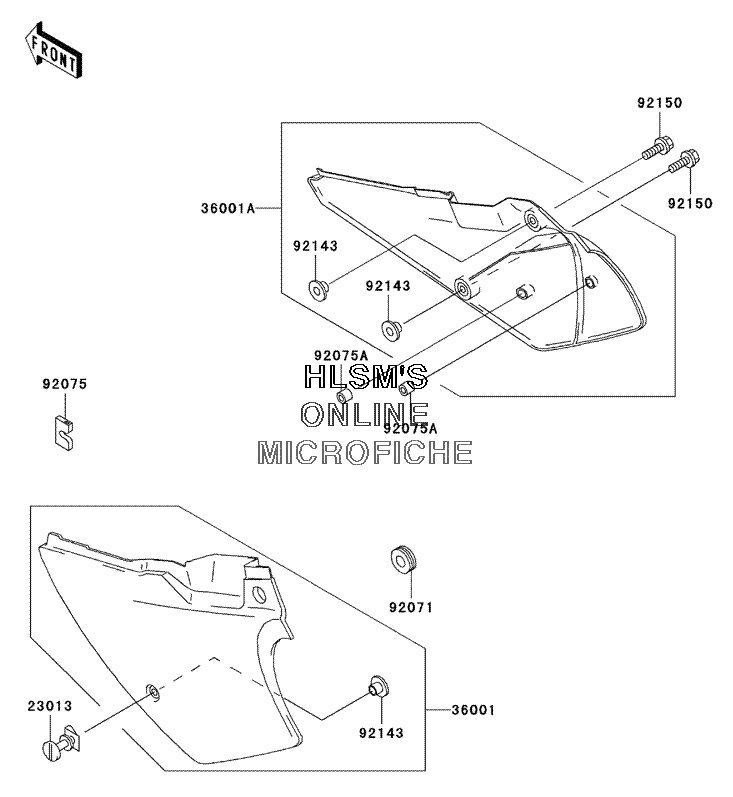

SIDE COVER(S) W/ CHAIN COVER для Kawasaki KDX 200 - 2005 года выпуска
-
№АртикулНазвание
-
2301323013-1051 SCREW, ASSYSCREW, ASSY
-
3600136001-1526-266 COVER, SIDE (LEFT) (S.WHITE)COVER, SIDE (LEFT) (S.WHITE)
-
36001A36001-1527-266 COVER, SIDE (RIGHT) (S.WHITE)COVER, SIDE (RIGHT) (S.WHITE)
-
9207192071-056 GROMMETGROMMET
-
9207592075-1967 DAMPERDAMPER
-
92075A92075-217 DAMPER, AIR FILTERDAMPER, AIR FILTER
-
9214392143-1196 COLLARCOLLAR
-
9215092150-1339 BOLT, 6X20BOLT, 6X20
