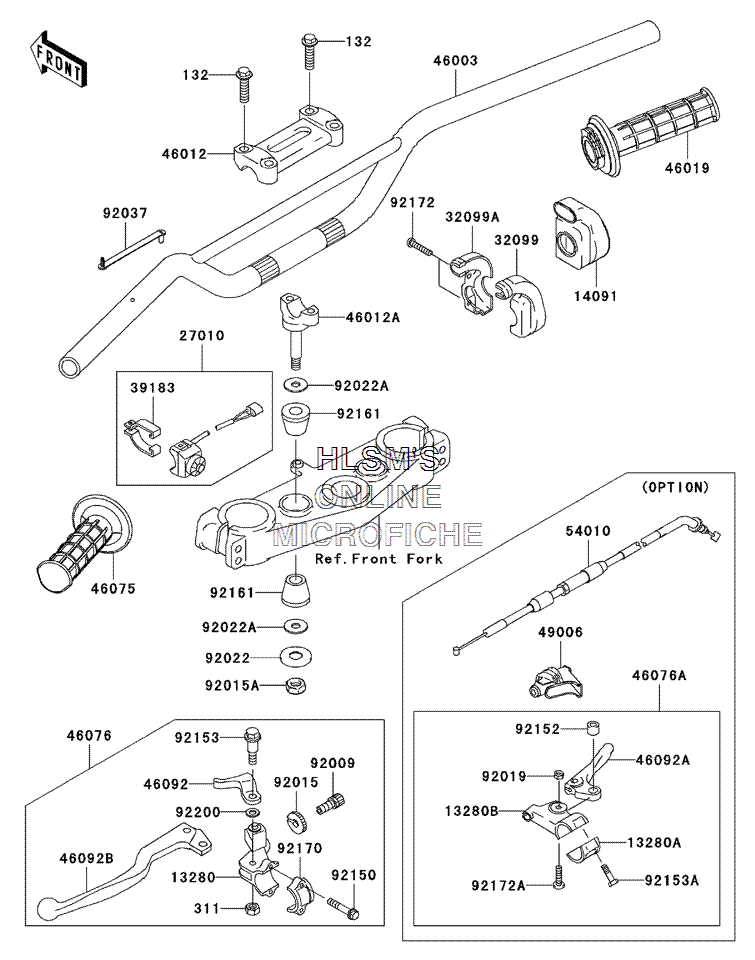

HANDLEBAR для Kawasaki KX 250F - 2004 года выпуска

  • №
    Артикул
    Название
  • 13280
    13280-0018 HOLDER, CLUTCH LEVER
    HOLDER, CLUTCH LEVER
  • 13280A
    13280-0055 HOLDER (OPT)
    HOLDER (OPT)
  • 13280B
    13280-0056 HOLDER (OPT)
    HOLDER (OPT)
  • 14091
    14091-0182 COVER, THROTTLE CASE
    COVER, THROTTLE CASE
  • 27010
    27010-0022 SWITCH, ENGINE STOP
    SWITCH, ENGINE STOP
  • 32099
    32099-0002 CASE, THROTTLE, LOWER
    CASE, THROTTLE, LOWER
  • 32099A
    32099-0003 CASE, THROTTLE, UPPER
    CASE, THROTTLE, UPPER
  • 39183
    39183-1059 BAND, ASSY, ENGINE STOP SWITCH
    BAND, ASSY, ENGINE STOP SWITCH
  • 46003
    46003-0031-458 HANDLE (P.SILVER)
    HANDLE (P.SILVER)
  • 46012
    46012-1190 HOLDER, HANDLE, UPPER
    HOLDER, HANDLE, UPPER
  • 46012A
    46012-1264 HOLDER, HANDLE, LOWER
    HOLDER, HANDLE, LOWER
  • 46019
    46019-0002 GRIP, ASSY, THROTTLE
    GRIP, ASSY, THROTTLE
  • 46075
    46075-1213 GRIP (LEFT)
    GRIP (LEFT)
  • 46076
    46076-0001 LEVER, ASSY, GRIP, CLUTCH AND STARTER
    LEVER, ASSY, GRIP, CLUTCH AND STARTER
  • 46076A
    46076-0009 LEVER, ASSY, GRIP, MANUAL DECOMP (OPT)
    LEVER, ASSY, GRIP, MANUAL DECOMP (OPT)
  • 46092
    46092-0001 LEVER, GRIP, STARTER
    LEVER, GRIP, STARTER
  • 46092A
    46092-0004 LEVER, GRIP (OPT)
    LEVER, GRIP (OPT)
  • 46092B
    46092-1165 LEVER, GRIP, CLUTCH
    LEVER, GRIP, CLUTCH
  • 49006
    49006-0011 BOOT (OPT)
    BOOT (OPT)
  • 54010
    54010-0019 CABLE (OPT)
    CABLE (OPT)
  • 92009
    92009-1476 SCREW, CABLE ADJUST, 8MM
    SCREW, CABLE ADJUST, 8MM
  • 92015
    92015-1596 NUT, CABLE ADJUST LOCK, 8MM
    NUT, CABLE ADJUST LOCK, 8MM
  • 92015A
    92015-1962 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92019
    92019-014 NUT, LOCK, 5MM (OPT)
    NUT, LOCK, 5MM (OPT)
  • 92022
    92022-1088 WASHER, 10.2X28X2
    WASHER, 10.2X28X2
  • 92022A
    92022-1737 WASHER
    WASHER
  • 92037
    92037-1290 CLAMP, SPEED, L=43
    CLAMP, SPEED, L=43
  • 92150
    92150-1474 BOLT
    BOLT
  • 92152
    92152-0135 COLLAR (OPT)
    COLLAR (OPT)
  • 92153
    92153-0376 BOLT
    BOLT
  • 92153A
    92153-0617 BOLT, 5X16 (OPT)
    BOLT, 5X16 (OPT)
  • 92161
    92161-0113 DAMPER, HANDLE HOLDER
    DAMPER, HANDLE HOLDER
  • 132
    132G0830 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 311
    311B0500 NUT, HEX
    NUT, HEX
  • 92170
    92170-1226 CLAMP, LEVER HOLDER
    CLAMP, LEVER HOLDER
  • 92172
    92172-0069 SCREW, 5X20
    SCREW, 5X20
  • 92172A
    92172-0125 SCREW, 5X20 (OPT)
    SCREW, 5X20 (OPT)
  • 92200
    92200-0035 WASHER
    WASHER
