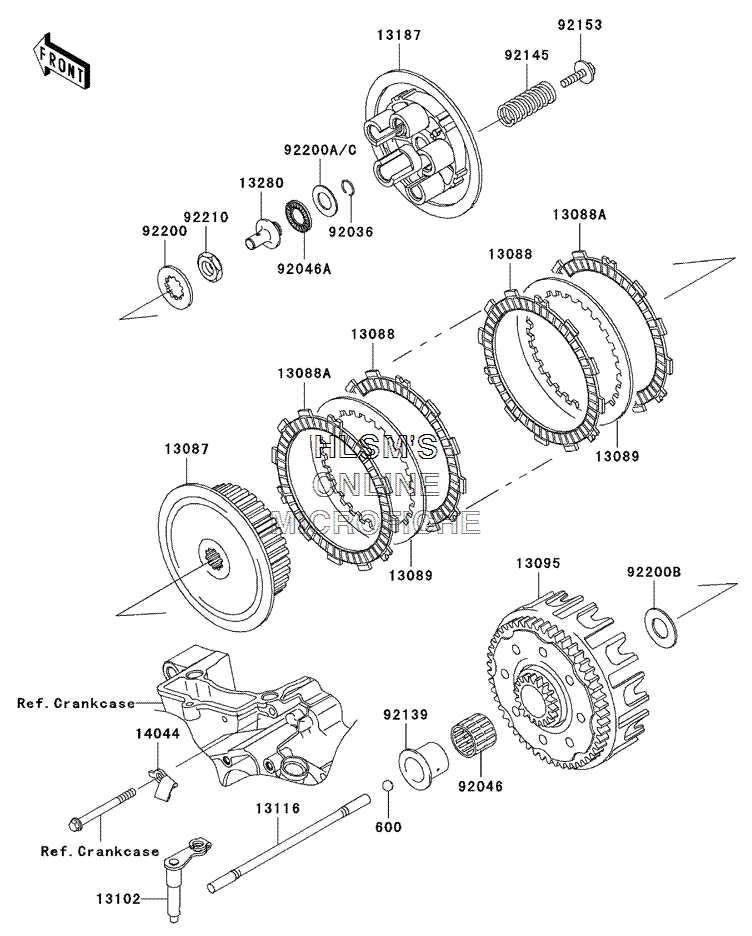

CLUTCH для Kawasaki KX 250F - 2004 года выпуска

  • №
    Артикул
    Название
  • 600
    600A1000 BALL, STEEL, 5/16"
    BALL, STEEL, 5/16"
  • 13087
    13087-0007 HUB, CLUTCH
    HUB, CLUTCH
  • 13088
    13088-0005 PLATE, FRONTICTION
    PLATE, FRONTICTION
  • 13088A
    13088-0006 PLATE, FRONTICTION
    PLATE, FRONTICTION
  • 13089
    13089-013 PLATE, CLUTCH, T=1.6
    PLATE, CLUTCH, T=1.6
  • 13095
    13095-0018 HOUSING, COMP, CLUTCH
    HOUSING, COMP, CLUTCH
  • 13102
    13102-0002 RELEASE, COMP, CLUTCH
    RELEASE, COMP, CLUTCH
  • 13116
    13116-0003 ROD, PUSH
    ROD, PUSH
  • 13187
    13187-1089 PLATE, CLUTCH OPERATING
    PLATE, CLUTCH OPERATING
  • 13280
    13280-1266 HOLDER
    HOLDER
  • 14044
    14044-0002 HOLDER, CABLE, CLUTCH
    HOLDER, CABLE, CLUTCH
  • 92036
    92036-007 RING, SNAP, PISTON PIN
    RING, SNAP, PISTON PIN
  • 92046
    92046-0002 BEARING, NEEDLE, WRS273224A
    BEARING, NEEDLE, WRS273224A
  • 92046A
    92046-1190 BEARING, NEEDLE, FNTA, 1326
    BEARING, NEEDLE, FNTA, 1326
  • 92139
    92139-0014 BUSHING
    BUSHING
  • 92145
    92145-1487 SPRING
    SPRING
  • 92153
    92153-1123 BOLT, 6X25
    BOLT, 6X25
  • 92200
    92200-0027 WASHER, 21.6X38X2.5
    WASHER, 21.6X38X2.5
  • 92200A
    92200-0045 WASHER, 13.4X25X1.0
    WASHER, 13.4X25X1.0
  • 92200B
    92200-0098 WASHER, 22.3X43X2
    WASHER, 22.3X43X2
  • 92200C
    92200-1548 WASHER, 13.4X25.0X1.5
    WASHER, 13.4X25.0X1.5
  • 92210
    92210-1207 NUT, 16MM
    NUT, 16MM
