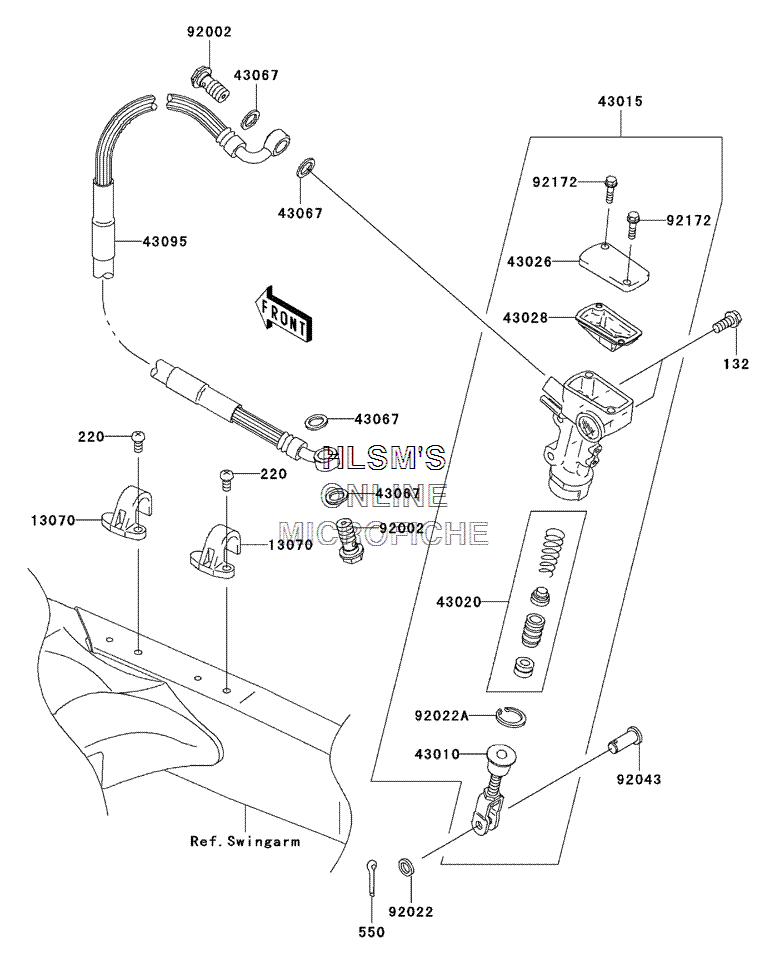

BRAKE - MASTER CYLINDER - REAR для Kawasaki KX 250F - 2004 года выпуска`
-
№АртикулНазвание
-
132132G0614 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
220220B0510 SCREW, PAN, CROSSCREW, PAN, CROS
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1307013070-1388 GUIDE, BRAKE HOSEGUIDE, BRAKE HOSE
-
4301043010-1087 ROD, ASSY, BRAKEROD, ASSY, BRAKE
-
4301543015-0004 CYLINDER, ASSY, MASTER, REARCYLINDER, ASSY, MASTER, REAR
-
4302043020-1094 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1086 CAP, BRAKECAP, BRAKE
-
4302843028-1092 DIAPHRAGMDIAPHRAGM
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4309543095-0024 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
9200292002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9202292022-1028 WASHER, 8.5X13X1WASHER, 8.5X13X1
-
92022A92022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9204392043-0004 PINPIN
-
9217292172-1064 SCREWSCREW
