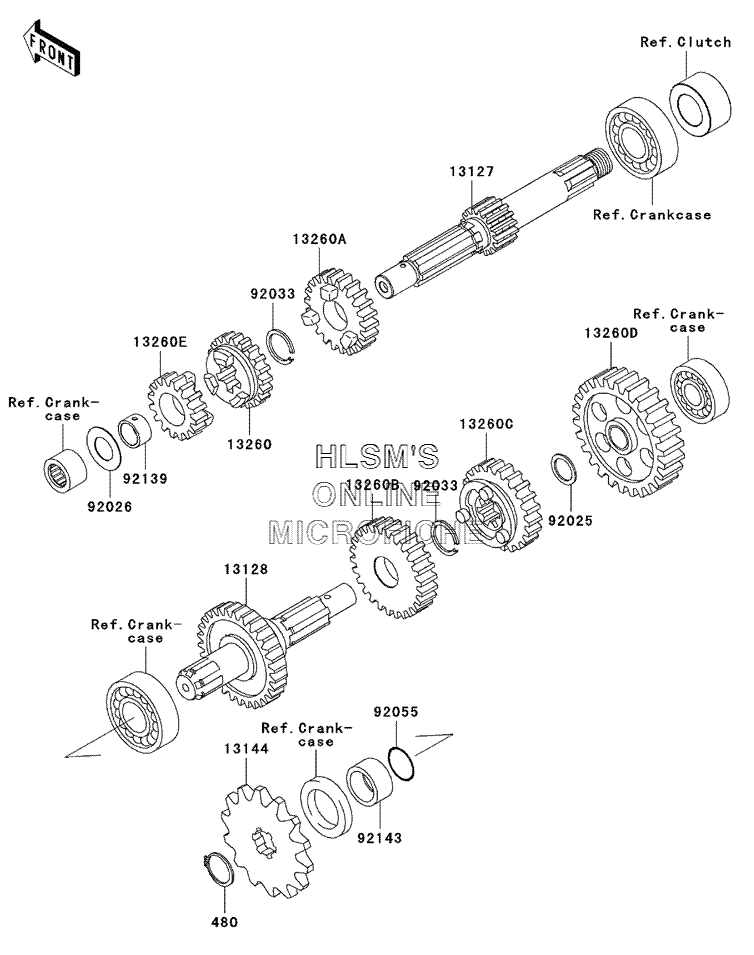

TRANSMISSION для Kawasaki KLX 110 - 2004 года выпуска
-
№АртикулНазвание
-
480480J1700 CIRCLIP, TYPE, C, 17MMCIRCLIP, TYPE, C, 17MM
-
1312713127-1280 SHAFT, TRANSMISSION INPUT (12 TEETH)SHAFT, TRANSMISSION INPUT (12 TEETH)
-
1312813128-1244 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-1044 SPROCKET, OUTPUT (14 TEETH)SPROCKET, OUTPUT (14 TEETH)
-
1326013260-1857 GEAR, INPUT 3RD (20 TEETH)GEAR, INPUT 3RD (20 TEETH)
-
13260A13260-1858 GEAR, INPUT TOP (23 TEETH)GEAR, INPUT TOP (23 TEETH)
-
13260B13260-1860 GEAR, OUTPUT 3RD (27 TEETH)GEAR, OUTPUT 3RD (27 TEETH)
-
13260C13260-1861 GEAR, OUTPUT TOP (25 TEETH)GEAR, OUTPUT TOP (25 TEETH)
-
13260D13260-1862 GEAR, OUTPUT LOW (36 TEETH)GEAR, OUTPUT LOW (36 TEETH)
-
13260E13260-1986 GEAR, INPUT 2ND (16 TEETH)GEAR, INPUT 2ND (16 TEETH)
-
9202592025-1280 SHIMSHIM
-
9202692026-1091 SPACERSPACER
-
9203392033-1060 RING, SNAP, 17MMRING, SNAP, 17MM
-
9205592055-1235 O-RING, 16.8MMO-RING, 16.8MM
-
9213992139-1102 BUSHINGBUSHING
-
9214392143-1680 COLLAR, SPROCKETCOLLAR, SPROCKET
